TR7900Q SII-R

INTRODUCTION

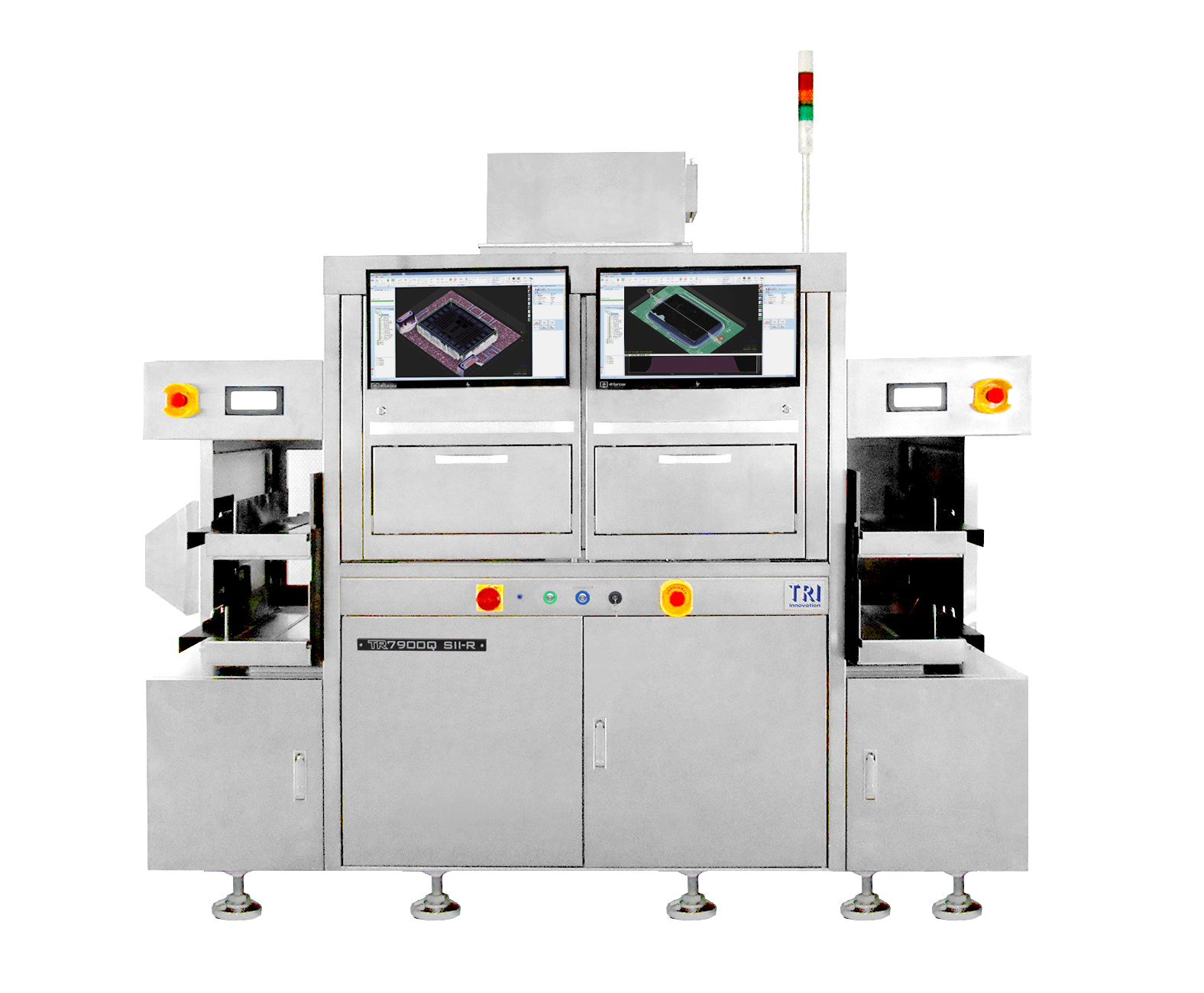

3D SEMI AOI TR7900Q SII-R 是半导体与先进封装业的 3D 自动检测复判站，完善整合装载/卸载模组，以简化基板和弹匣的输送。 2.5 μm 高分辨率智能工厂解决方案TR7900Q SII-R可以检测黏晶、球形接合、带状接合、楔形接合、银胶、SiP、填充胶、SMD、凸块和锡点，且能够检测高达17 μm (0.7 mil)的线径。

• 打线接合与黏晶高级封装缺陷检测
• 复判识别标记模组
• 2.5 μm 量测等级*技术高分辨率3D AOI
• 内建弹匣装载/卸载输送装置
• 打线检测 AI演算法技术支持*
• 可检测小至 15 μm 的金/铝/银/铜线
• 接合检测：球形接合、楔形接合、带状接合
• 短波红外 (SWIR) 照明检测内部裂缝和碎裂*
• 无尘环境等级 100 - ISO 等级 5 (ISO 14644-1)

*选配项目

Optical System

Imaging Method	Stop-and-Go Imaging
Top Camera	25 Mpix
Imaging Resolution	2.5 µm
Lighting	Multi-phase True Color LED
3D Technology	Quad Digital Fringe Projectors
Max. 3D Height Range	600 μm

Defect Marking Method

Marking Method

Ink Printer. Optional: Ink Pen

Motion Table & Control

X Axis Control	Linear Motor
Y Axis Control	Dual Linear Motor
X-Y Axis Resolution	0.1 µm

Board Handling

Max. Stack Magazine Qty.	3 Magazines (based on Magazine width 125 mm)
Magazine Dimension	Width: 50 - 175 mm Length: 120 - 320 mm Height: 80 - 160 mm
Strip Dimension	Width: 35 - 180 mm Length: 100 - 300 mm Thickness: 0.1 - 1.5 mm
Max. Strip Weight	0.4 kg
Strip Carrier / Fixing	Gripper Conveyor
Top Clearance	15 mm
Bottom Clearance	6 mm
Edge Clearance	3 mm

Inspection Functions

Die Bonding	Missing Orientation Rotation Shift Tilted Chipping Crack Scratch Foreign Material Bond line thickness Epoxy on Die Epoxy Coverage Epoxy Height
Wire Bonding	Broken Short Sweep/Sink Missing Sway Collapse Loop Height Sagged Wire Cross Wire Gap Wire Tracing Ball Bond Diameter Ball Placement Stitch Width Stitch Coverage over Ball Ball-off Pad Ball touch Pad Distance Clubbed Ball Ball Thickness Lifted Ball Low Landing Bond on Contamination Foreign Material
Bonding Area/Pad	Copper Protrusion Crack Chipping Exposed Copper Exposed Nickel Target Material Scratches or Brush Marks Oxidation Foreign Material

Dimensions

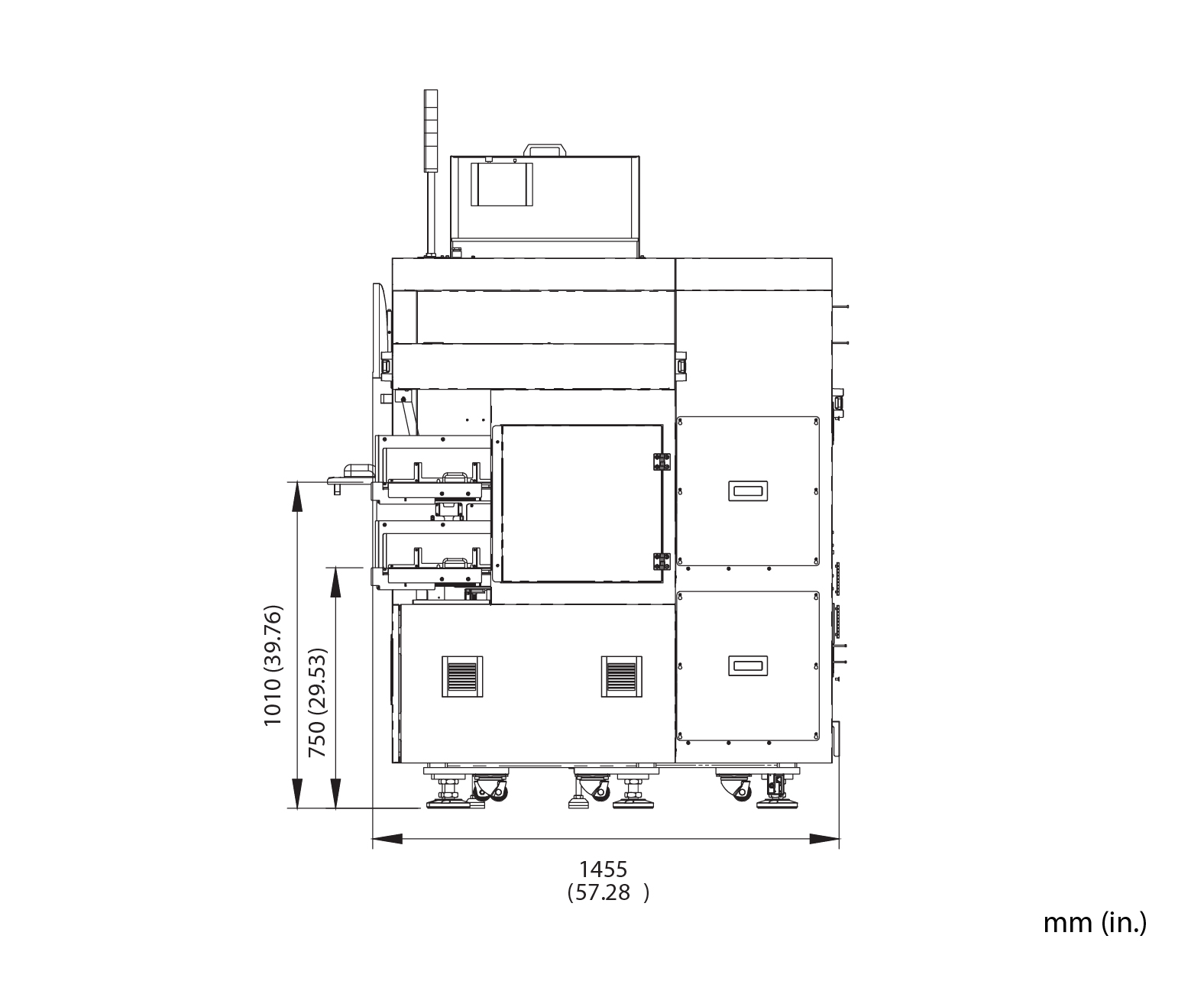

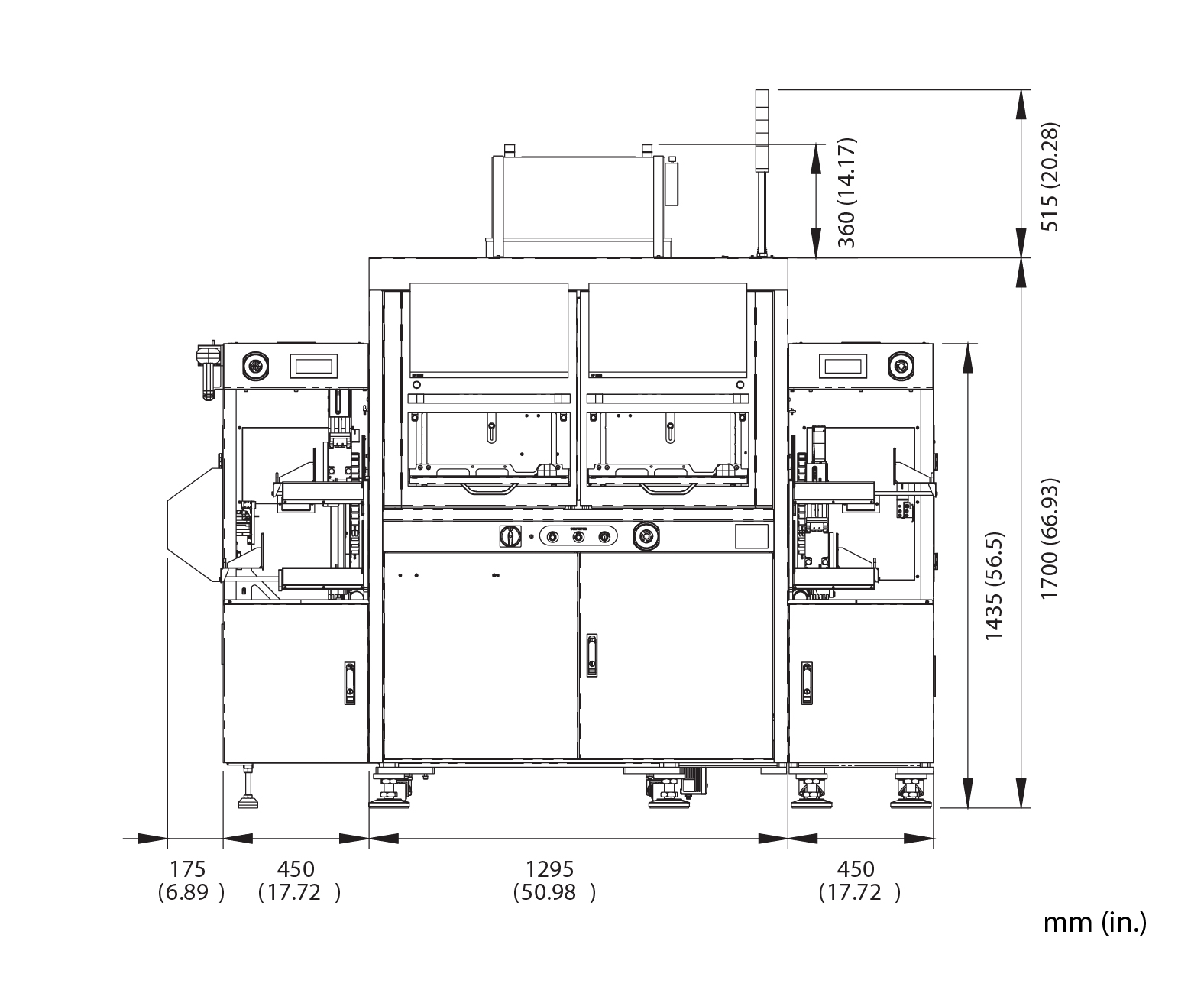

WxDxH	2370 x 1455 x 1700 mm Note: not including signal tower, signal tower height 515 mm
Weight	1120 kg. With Auto Load/Unload Module: 1280 kg
