INTRODUCTION

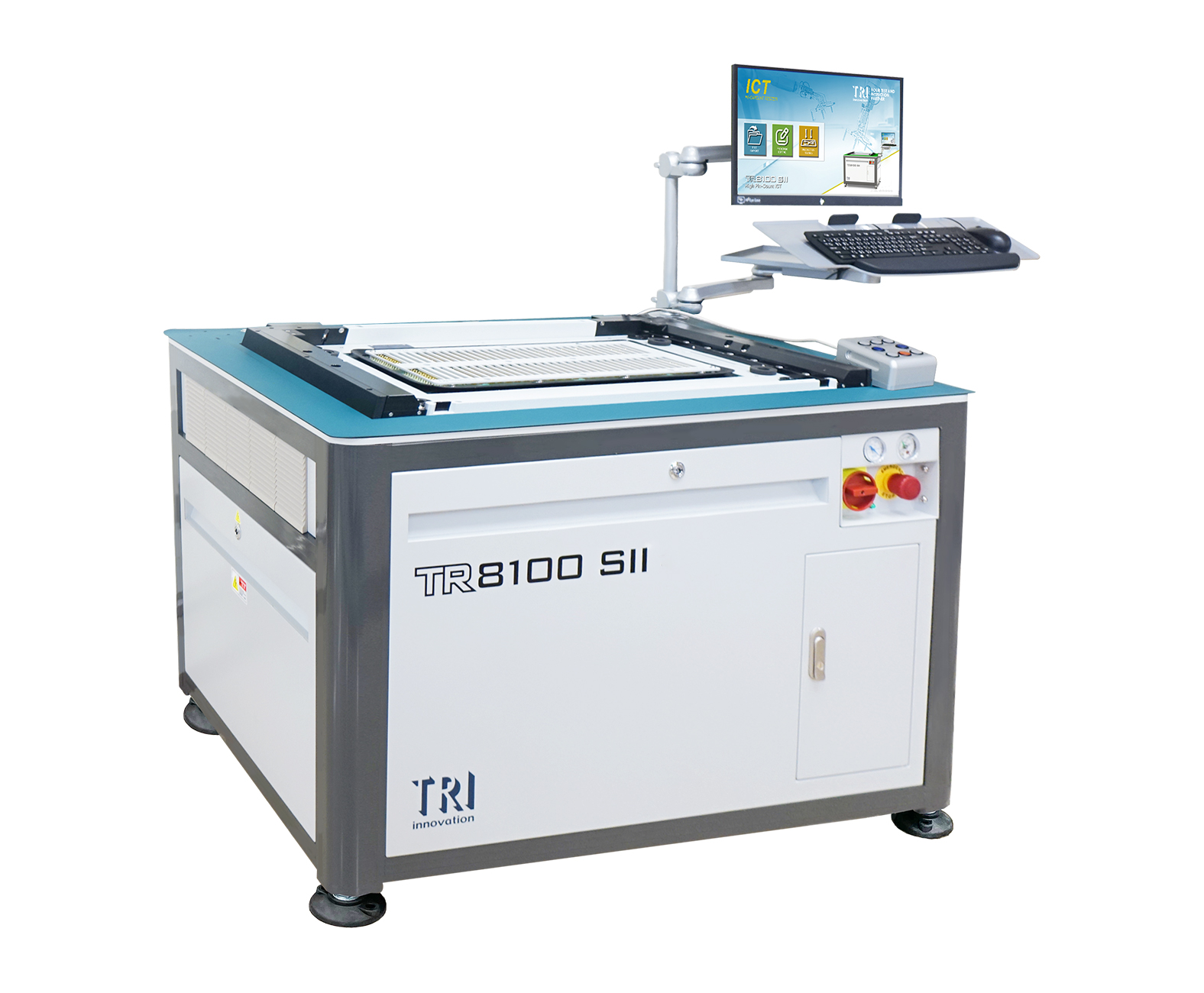

TR8100H SII 系列是最新型的高阶电路板测试ICT，拥有数位无 MUX 架构 1:1 针点与检测点比例设计，可测试多达11,088个针点数。高程式设计性可以进行快速程式开发，工程变更修改更快速更简易；不占空间、高产量、高精度测试的特性，能有效率测试大针点数且复杂的低电压测试电路板(PCBA)，提高系统稳定度、长期的测试可靠度及故障覆盖率，以得到降低成本的目的，并能够将测试结果资料完整呈现。
• 真空治具高故障覆盖率测试解决方案
• 低电压装置测试与高速测试
• 内建自我诊断功能
• 高精度测量和测试
• 友善的操作界面，轻松的程序开发
Tester Specifications
|
Analog test points |
TR8100H SII: 7056

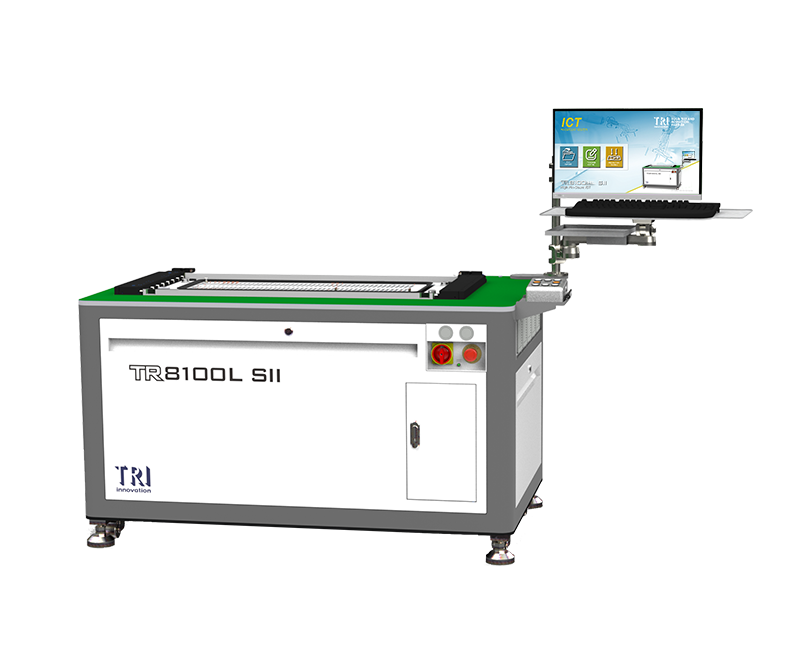

TR8100HL SII: 11088
|
|
Operating System |
Microsoft® Windows compatible PC, Windows 10 |
|
Fixture Type |
Vacuum type |
Standard Testing Components
|
Analog Test Hardware |
-
6-wire measurement switching matrix
-
Programmable AC/DC/DC High voltage and current sources
-
AC/DC voltage, DC current measurement, frequency
-
Component R/L/C measurement
-
Synthesized Arbitrary Waveform Generator
-
TestJet vectorless open circuit detection
|
|
Digital Testing |
-
Non-multiplexing 1:1 per pin architecture with independent per-pin level setting
-
DUT power supplies: 5 V@5 A, 3.3 V@5 A, 12 V@5A, 0.2~20 V@3 A and -3~-20 V@3 A
-
On-board Flash, EEPROM, MAC programming
|
Optional Components
|
Analog Hardware |
Fixture Conversion Kits for Teradyne, GenRad |
|
Digital Testing |
-
APPS Power Supplies: Programmable 75 V/8 A/200 W Max., 1 Channel
-
Includes BScan Chain Test, BScan Cluster Test, BScan Virtual Nails Test, BScan Virtual Chain Test and IEEE1149.6 Test
-
Serial Test Controller (STC) Programming
-
DPS Programmable DUT Power supply:
(1) DPS3514: 30Vmax/5Amax/100Wmax per channel /4CH per DPS
(2) DPS3122: 30Vmax/10Amax/200Wmax per channel /2CH per DPS
-
ToggleScan Test
|
|
Yield Management System |
YMS 4.0 |
Dimensions
|
WxDxH |
TR8100H SII: 1150 x 850 x 800 mm
TR8100HL SII: 1400 x 850 x 800 mm |
|
Weight |
TR8100H SII: 390 kg
TR8100HL SII: 450 kg |
