組裝电路板测试机(MDA)

TR518 SII


TR518 SII

INTRODUCTION

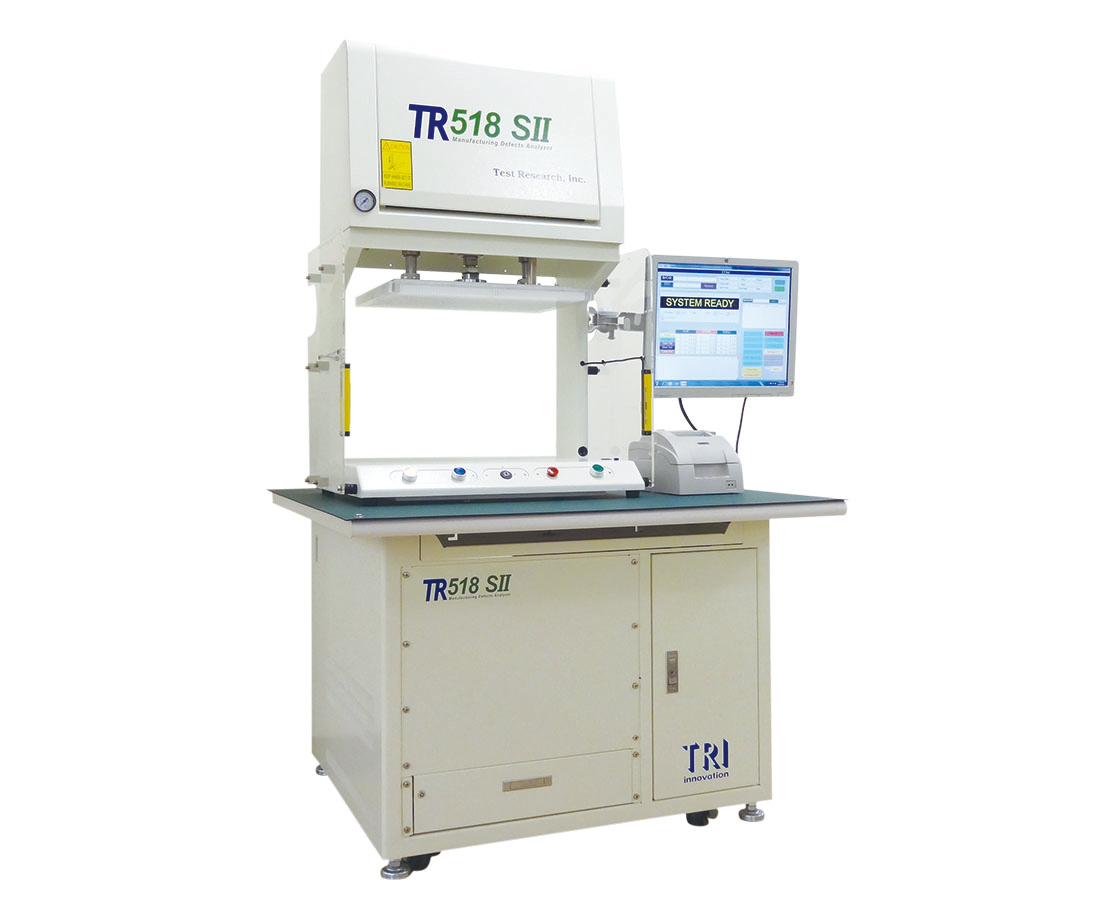

TR518 SII建立在安装率及可靠度最高的TR518系列平台之上，具有优越的性能,结合人性化Windows 10界面并支持USB界面可连接台式及笔记本电脑。TR518 SII具备TestJet技术与其他特点，提供高达2560点之高速度,高精度以及高可靠度测试。

• 饱经历练的高可靠度之TR518平台并支持USB界面

• TestJet技术，非向量式开路检测

• 人性化Windows 10操作系统

Tester Specifications

Analog Test Points	2560 analog test points
Operating System	Microsoft^® Windows compatible PC with USB, Windows 10
Fixture Type	Offline press

Analog Testing

Analog Test Hardware

6-wire measurement switching matrix
Programmable AC/DC/DC High voltage and current sources
Component R/L/C measurement

Optional Components

Analog Hardware	TestJet vectorless open circuit detection Programmable High Voltage DC Source up to 100V / 100 mA
Yield Management System	YMS 4.0

Dimensions

WxDxH	1000 x 900 x 1667-1770 mm
Weight	220 kg
