INTRODUCTION

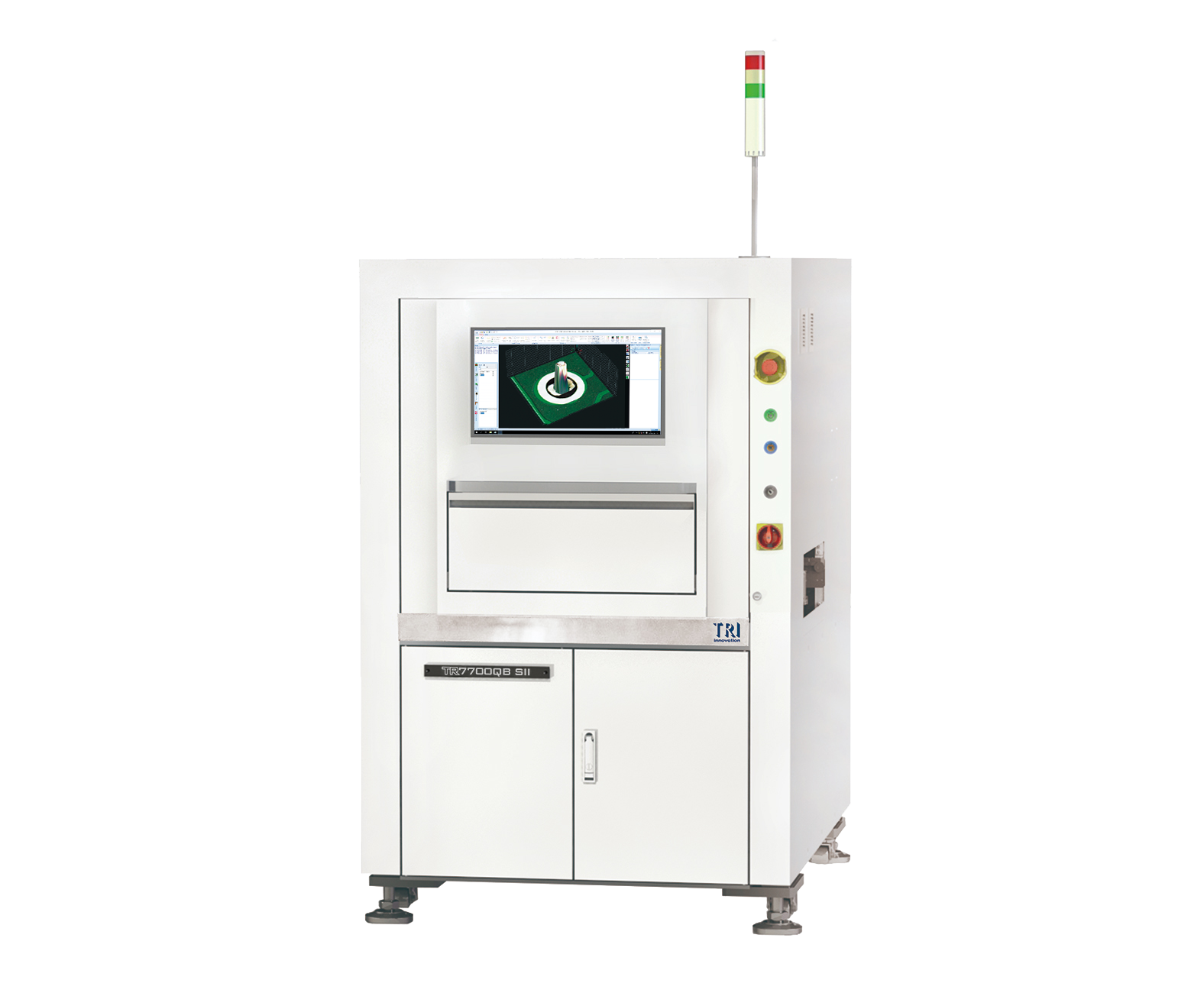

TR7700QB SII 为一具有下视相机的 3D AOI 解决方案，拥有 15 µm /12 MP 高分辨率取像技术，专为需要高覆盖率检测的通孔技术元件和双列直插封装而设计，能够进行计量级检测。此外，TR7700QB SII的智慧工厂解决方案能够进行数据交换并简化 MES 串接作业。
• 高速下视相机 3D AOI，可达 57 cm2/秒
• 通过智能编程快速进行检测
• THT/DIP缺陷高覆盖率检测
• 精确量测等级检测
Optical System
| Imaging Method |
|
| Camera |
|
| Imaging Resolution |
|
| Lighting |
|
| 3D Technology |
|
| Field of View |
|
Inspection Performance
| Imaging Speed |
|
| Height Resolution |
|
| Max. Solder Height |
|
Motion Table & Control
| X-Axis Control |
|
| Y-Axis Control |
|
| Z-Axis Control |
|
| X-Y Axis Resolution |
|
| Z-Axis Resolution |
|
Board Handling
| Max PCB Size |
|
| PCB Thickness |
|
| Max PCB Weight |
|
| Top Clearance |
|
| Bottom Clearance |
|
| Edge Clearance |
|
| Conveyor Height |
|
Optical System
| Imaging Method |
Stop-and-Go |
| Camera |
12 MP High Speed Camera |
| Angle Camera |
N/A |
| Imaging Resolution |
15 μm |
| Lighting |
Multi-phase True Color LED |
| 3D Technology |
Quad Digital Fringe Projectors |
| Max. 3D Range |
20 mm |
Inspection Performance
| Imaging Speed |
57 cm²/sec
* Depending on component distribution |
Motion Table & Control
| X-Axis Control |
Ballscrew + AC Servo with Motion Controller |
| Y-Axis Control |
Ballscrew + AC Servo with Motion Controller |
| Z-Axis Control |
Ballscrew + AC Servo with Motion Controller |
| X-Y Axis Resolution |
1 μm with linear encoder |
Board Handling
| Max PCB Size |
510 x 510 mm |
| PCB Thickness |
0.6 - 6 mm |
| Max PCB Weight |
3kg. Optional: 5 kg |
| Top Clearance |
100 mm |
| Bottom Clearance |
40 mm |
| Edge Clearance |
3 mm. Optional: 5 mm |
| Conveyor |
Inline Height: 830 - 870 mm
* Optional: 900 mm |
Inspection Functions
| Component |
Missing, Tombstoning, Billboarding, Polarity, Rotation, Shift, Wrong Marking (OCV), Defective, Upside Down, Extra Component, Foreign Material, Lifted Component, Bridge, Pin Height |
| THT Defects |
Missing, Position, Soldering Defects, Pinhole, Blowhole, Pin Height,
Pin Angle, Pin Offset, Bridging, Wetting
|
| Solder |
Solder Fillet Height, Solder Volume %, Excess Solder, Insufficient Solder, Bridging, Through-hole Pins, Lifted Lead, Golden Finger Scratch/ Contamination |
Dimensions
| WxDxH |
1100 x 1730 x 1585 mm
Note: not including signal tower, signal tower height 515 mm |
| Weight |
1030 kg |
Imaging System
| Camera |
|
| X-ray Source |
|
| Imaging Resolution |
|
| Inspection Method |
|
Motion Table & Control
| X-Axis Control |
|
| Y-Axis Control |
|
| Z-Axis Control |
|
| X-Y Axis Resolution |
|
Board Handling
| Max PCB Size |
|
| PCB Thickness |
|
| Max PCB Weight |
|
| Top Clearance |
|
| Bottom Clearance |
|
| Edge Clearance |
|
| Conveyor Height |
|
Dimensions
| WxDxH |
|
| Weight |
|
| Power Requirement |
|
|
