組裝电路板测试机(MDA)

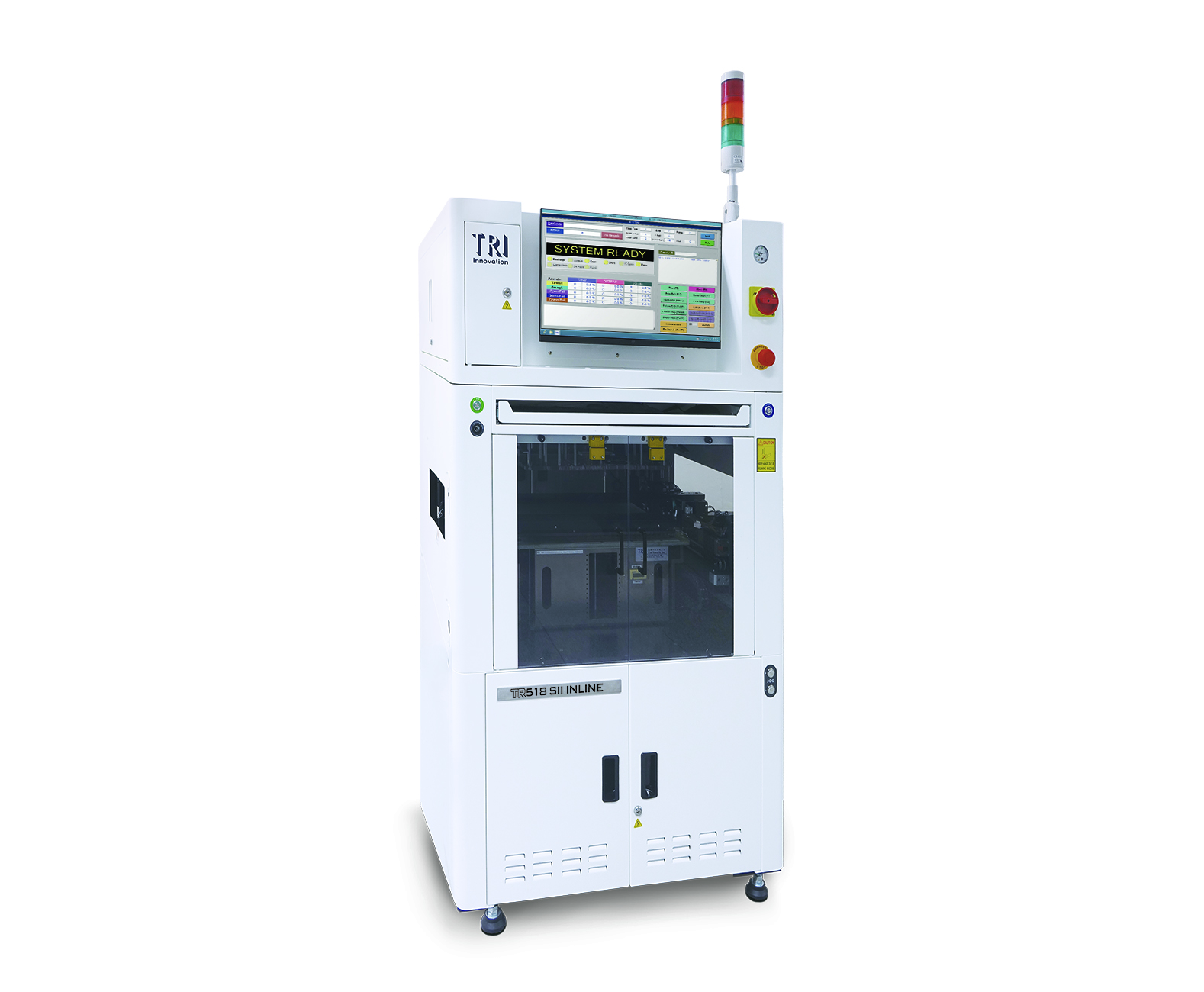

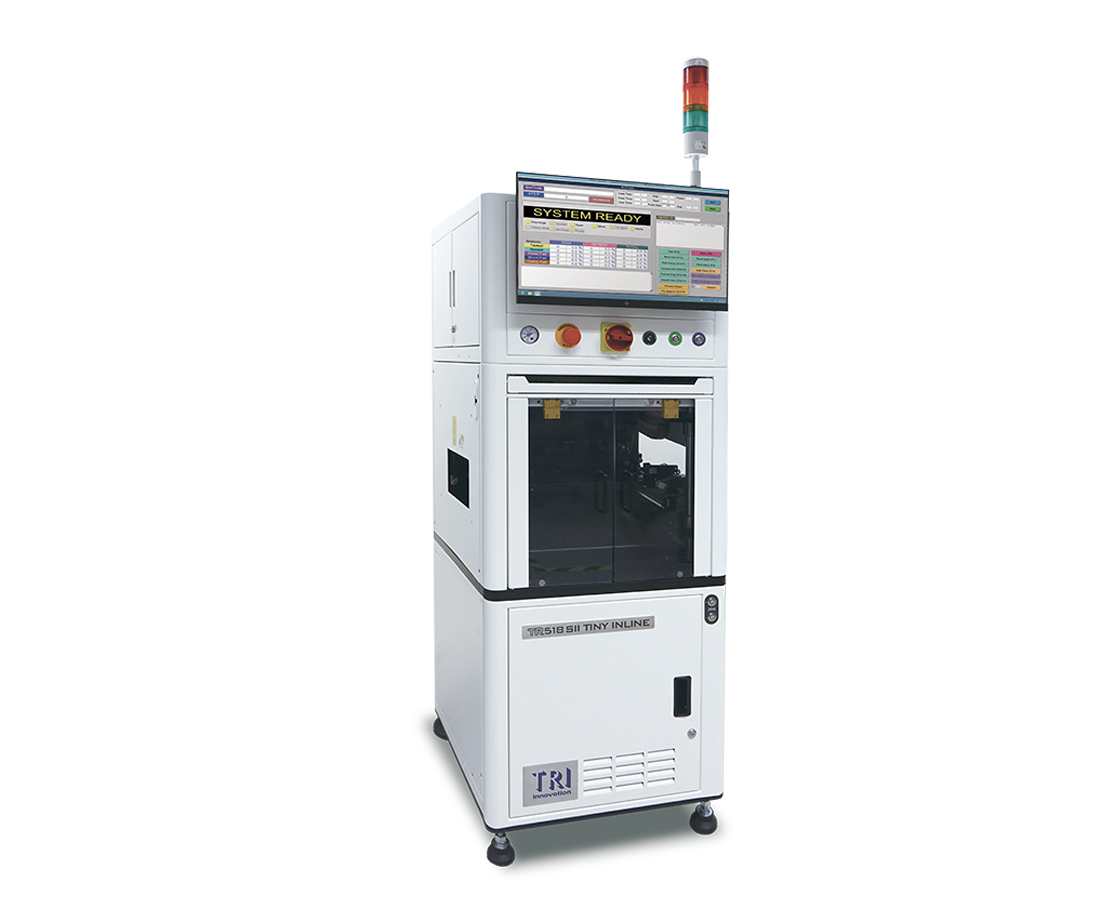

TR518 SII INLINE


TR518 SII INLINE

INTRODUCTION

TR518 SII INLINE为一台高经济效益、弹性且自动化测试平台，专为小尺寸电路板的MDA测试机，多达1024个测试点。此台全电符合SMEMA标准的平台具有最小的体积，并与TR518 SII MDA测试机相容。

• 全功能的在线型测试平台
• 专为TRI的TR518 SII MDA测试机所设计
• 轻量级体积且整合SMEMA标准
• 无需空压设备的全用电设计
• 高达1024个针点

Tester Specifications

Analog Test Points	1024 analog test points
Operating System	Microsoft^® Windows compatible PC with USB, Windows 10
Fixture Type	Inline/Manual Insertion

Analog Testing

Analog Test Hardware

6-wire measurement switching matrix
Programmable AC/DC/DC High voltage and current sources
Component R/L/C measurement

Optional Components

Analog Hardware	TestJet vectorless open circuit detection Programmable High Voltage DC Source up to 100V / 100 mA
Yield Management System	YMS 4.0

Board Handling

Min. PCB Size	70 x 70 mm
Max. PCB Size	330 x 250 mm
PCB Thickness	0.6 ~ 5 mm

Dimensions

WxDxH	600 x 900 x 1595 mm Note: not including signal tower, height: 515 mm
Weight	340 kg
