防护涂层自动光学检测机 (CI AOI)

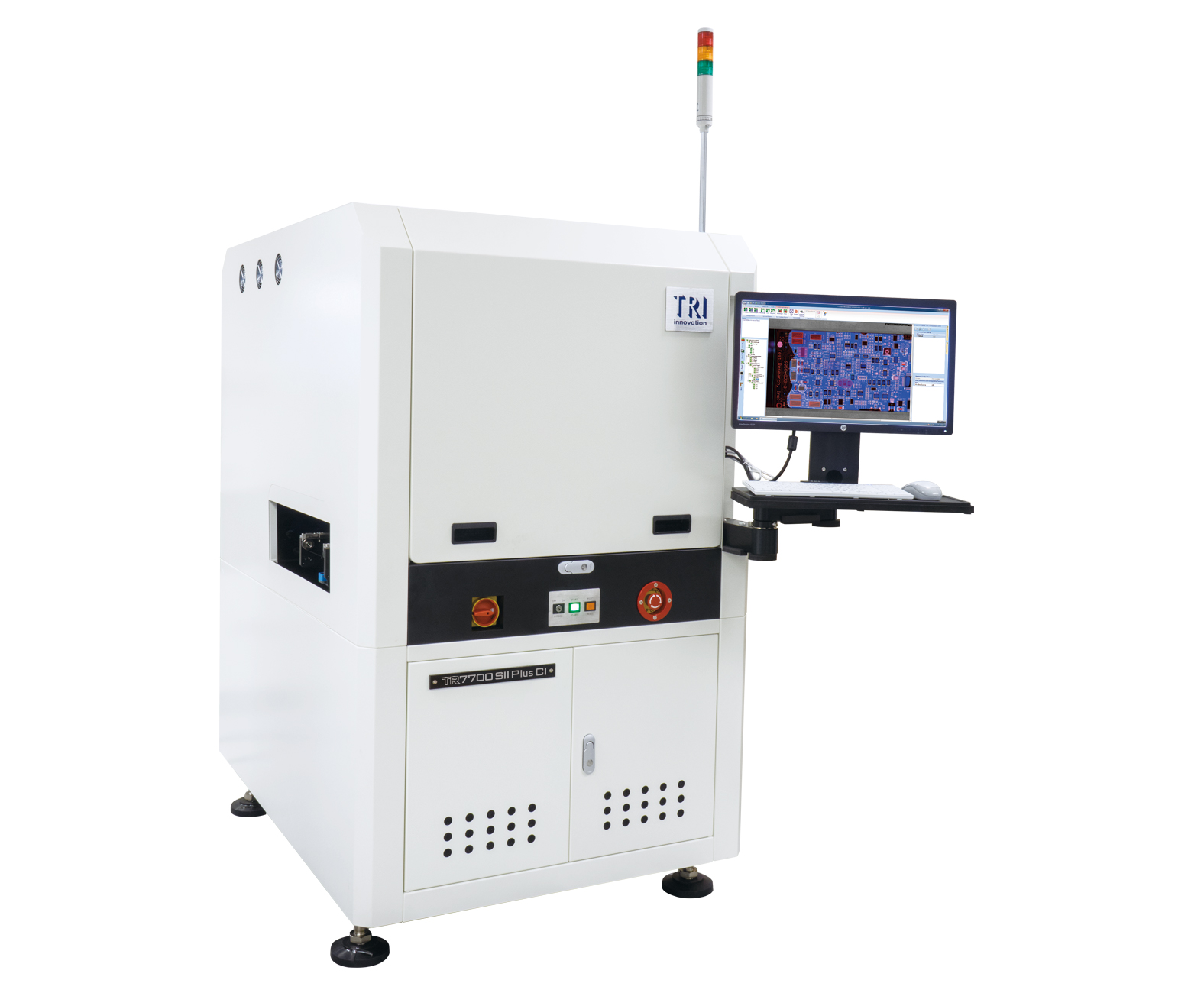

TR7700 SII Plus CI

INTRODUCTION

TR7700 SII Plus CI 拥有实用的防护涂层检测功能，利用专业化的多相位灯源结合高精准度来检测UV-active防护涂层。智能软体与多相位影像能够确保TR7700 SII Plus CI辨识出最典型的涂层缺陷，将误判率降到最低。

• 精确的检测UV-Active涂层
• 直觉式的覆盖编程介面，方便学习
• 精准的涂层面积测量
• 多相位灯源可降低杂讯

Optical System

Imaging Method	Dynamic Imaging
Top Camera	4 Mpix
Angle Camera	N/A
Imaging Resolution	10 µm, 15 µm (factory setting)
Lighting	Multi-phase R/W + UV

Imaging Performance

Imaging Speed

@10 µm: 60 cm²/sec
@15 µm: 120 cm²/sec

Motion Table & Control

X-Axis Control	Ballscrew + AC-servo controller
Y-Axis Control	Ballscrew + AC-servo controller
X-Y Axis Resolution	1 µm

Board Handling

Max PCB Size	500 x 460 mm
PCB Thickness	0.6-5 mm
Max PCB Weight	3 kg
Top Clearance	50 mm
Bottom Clearance	40 mm [100 mm optional]
Edge Clearance	3 mm [5 mm optional]
Conveyor	Inline Height: 880 – 920 mm * SMEMA Compatible

Inspection Functions

Conformal Coating

Missing Coating
Insufficient Coating
Crack
Bubble/Void
Splash/Smear/Contamination
Spill
Measurement

Dimensions

WxDxH	1000 x 1400 x 1650 mm Note: not including signal tower, signal tower height 520 mm
Weight	600 kg
