INTRODUCTION

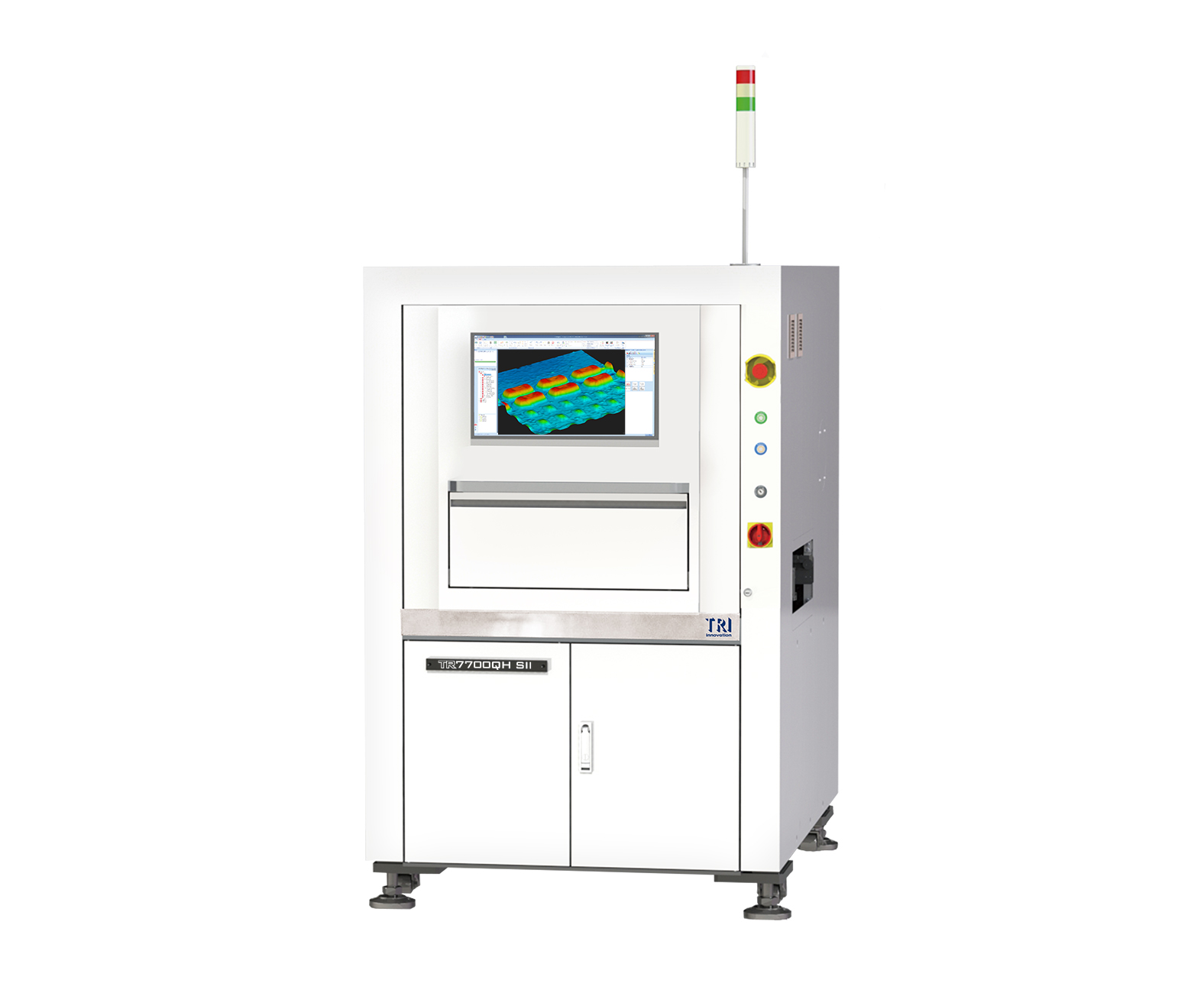

TR7700QH SII 系列是最新的超高速 3D AOI，能够以高达 80 cm²/sec的速度进行检测，并保有优越的Gauge R&R數值。 TR7700QH SII 3D AOI 具备 TRI 智能编程、人工智能演算法和量测检测功能，并可符合 IPC-CFX 和 Hermes (IPC-HERMES-9852)智能工厂标准。
• 超高速相机，速度高达 80 cm2/sec
• 测量等级检测
• 人工智能驱动演算法与智能编程
• 支持工业 4.0 平台
Optical System
| Imaging Method |
|
| Camera |
|
| Imaging Resolution |
|
| Lighting |
|
| 3D Technology |
|
| Field of View |
|
Inspection Performance
| Imaging Speed |
|
| Height Resolution |
|
| Max. Solder Height |
|
Motion Table & Control
| X-Axis Control |
|
| Y-Axis Control |
|
| Z-Axis Control |
|
| X-Y Axis Resolution |
|
| Z-Axis Resolution |
|
Board Handling
| Max PCB Size |
|
| PCB Thickness |
|
| Max PCB Weight |
|
| Top Clearance |
|
| Bottom Clearance |
|
| Edge Clearance |
|
| Conveyor Height |
|
Optical System
| Imaging Method |
Stop-and-Go |
| Top Camera |
21 MP High Speed Camera |
| Angle Camera |
N/A |
| Imaging Resolution |
15 µm |
| Lighting |
Multi-phase True Color LED |
| 3D Technology |
Quad Digital Fringe Projectors |
| Max. 3D Range |
40 mm |
Motion Table & Control
| X-Axis Control |
Ballscrew + AC Servo with Motion Controller |
| Y-Axis Control |
Ballscrew + AC Servo with Motion Controller |
| Z-Axis Control |
Ballscrew + AC Servo with Motion Controller |
| X-Y Axis Resolution |
1 μm |
Board Handling
| Max PCB Size |
TR7700QH SII: 510 x 510 mm
TR7700QH SII DL: 510 x 310 mm x 2 lanes, 510 x 590 mm x 1 lane
TR7700L QH SII: 765 x 610 mm |
| PCB Thickness |
0.6-5 mm |
| Max PCB Weight |
TR7700QH SII (DL): 3 kg. Optional: 5kg
TR7700L QH SII: 3 kg. Optional: 5 kg / 12 kg |
| Top Clearance |
50 mm |
| Bottom Clearance |
40 mm |
| Edge Clearance |
TR7700QH SII (DL): 3 mm. Optional: 4 mm / 5 mm
TR7700L QH SII: 3 mm. Optional: 5 mm |
| Conveyor |
TR7700QH SII (DL):
Inline Height: 880 – 920 mm, Optional: 940-965 mm
TR7700L QH SII:
Inline Height: 880 – 920 mm, Optional: 940-965 mm
* SMEMA compatible |
Inspection Functions
| Component |
Missing, Tombstoning, Billboarding, Polarity, Rotation, Shift, Wrong Marking (OCV), Defective, Upside Down, Extra Component, Foreign Material, Lifted Component |
| Solder |
Solder Fillet Height, Solder Volume %, Excess Solder, Insufficient Solder, Bridging, Through-hole Pins, Lifted Lead, Golden Finger Scratch/ Contamination |
Dimensions
| WxDxH |
TR7700QH SII: 1100 x 1730 x 1700 mm
TR7700QH SII DL: 1100 x 2005 x 1700 mm
TR7700L QH SII: 1365 x 1865 x 1700 mm
Note: not including signal tower, signal tower height 520 mm |
| Weight |
TR7700QH SII: 920 kg
TR7700QH SII DL: 1020 kg
TR7700L QH SII: 1035 kg |
Imaging System
| Camera |
|
| X-ray Source |
|
| Imaging Resolution |
|
| Inspection Method |
|
Motion Table & Control
| X-Axis Control |
|
| Y-Axis Control |
|
| Z-Axis Control |
|
| X-Y Axis Resolution |
|
Board Handling
| Max PCB Size |
|
| PCB Thickness |
|
| Max PCB Weight |
|
| Top Clearance |
|
| Bottom Clearance |
|
| Edge Clearance |
|
| Conveyor Height |
|
Dimensions
| WxDxH |
|
| Weight |
|
| Power Requirement |
|
|
