INTRODUCTION

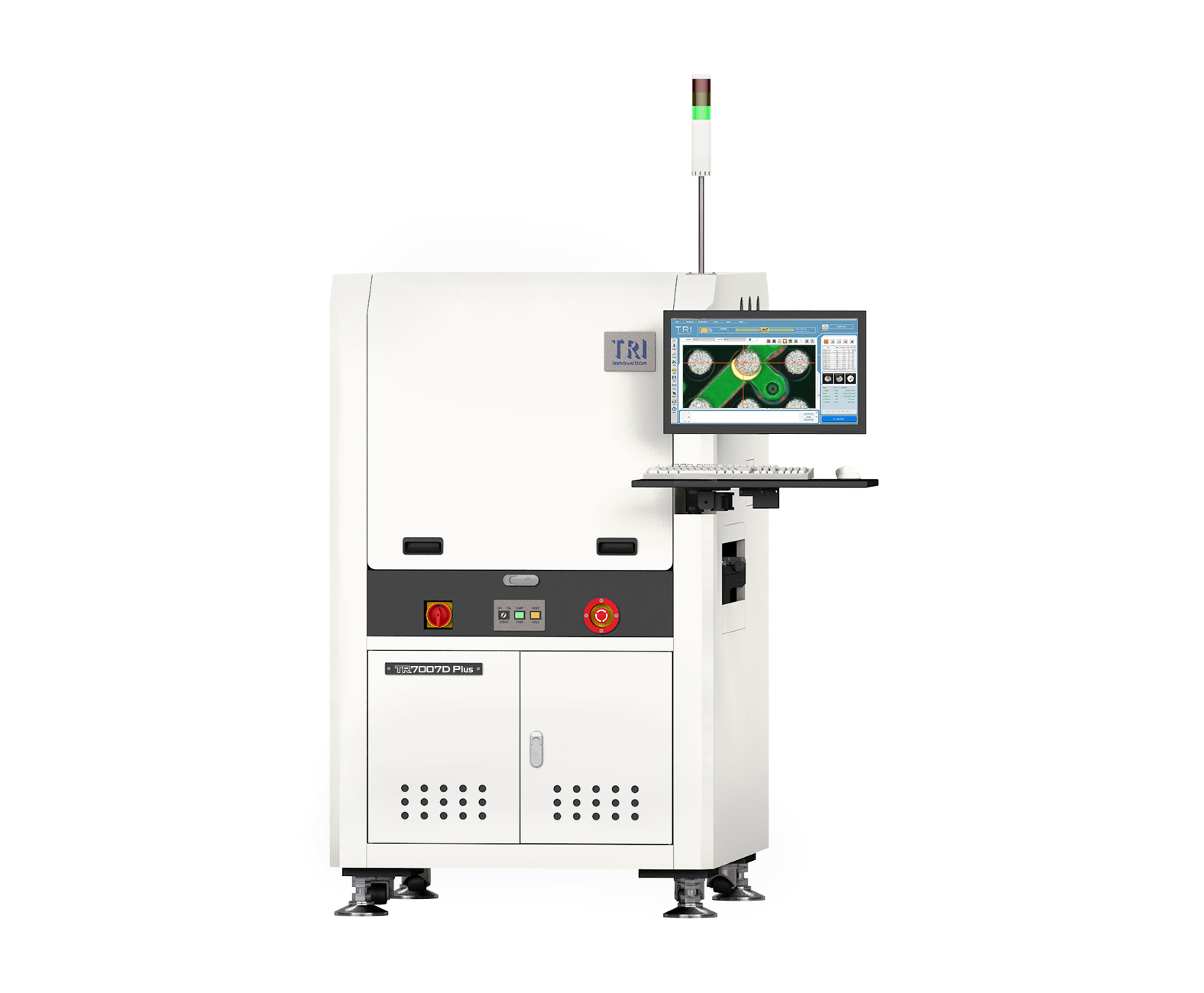

TR7007D Plus 3D SPI平台配备了优化的运动控制系统(EtherCAT)和高阶的2D照明模组,可以准确地检测低锡桥缺陷及进行板弯补偿以消除PCB制程误差。 TR7007D Plus具有2组数位条纹光投影,以确保进行无阴影检测。 SPI解决方案简化了生产线和MES之间的数据交换流程,实现生产线连接数据的可追溯性。
• 强化2D照明,提供更佳的检测一致性
• 实时量测新型运动控制系统EtherCAT
• SPC数据实时追踪智能工厂解决方案
• 闭环(Closed Loop)反馈和前馈功能
很抱歉,您的浏览器无法播放HTML5视频。
请使用最新的浏览器播放。
Optical System
Imaging Method
Stop-and-Go Imaging
Camera
4 Mpix or 12 Mpix (factory setting)
Imaging Resolution
5.5 μm, 6 μm, 10 μm , 15 µm (factory setting)
Lighting
Enhanced 2D Lights (RGB+W)
3D Technology
2-way Digital Fringe Pattern
Field of View
4 MP Camera Link- @ 10 μm: 20.3x20.3 mm @ 15 μm: 30.5x30.5 mm 12 MP Camera Link- @ 5.5 μm: 22.5x16.5 mm @ 10 μm: 40.6x30.7 mm @ 15 μm: 61x46 mm 12 MP CoaXPress- @ 6 μm: 24.3x18.4 mm @ 10 μm: 40.6x30.7 mm @ 15 μm: 61x46 mm
Inspection Performance
Imaging Speed
4 MP Camera Link: Up to 3 FOV/sec 12 MP Camera Link: Up to 1.8 FOV/sec 12 MP CoaXPress: Up to 2.6 FOV/sec
Height Resolution
@10 μm/15 μm: 0.45 μm @5.5 μm/6 μm: 0.22 μm
Max. Solder Height
@10 μm/15 μm: 420 μm/750 μm @5.5 μm/6 μm: 210 μm/310 μm * on Calibration Target
Motion Table & Control
X-Axis Control
Ballscrew + EtherCAT motion controller
Y-Axis Control
Ballscrew + EtherCAT motion controller
Z-Axis Control
Ballscrew + EtherCAT motion controller
X-Y Axis Resolution
0.5 μm
Z-Axis Resolution
1 µm
Board Handling
Max PCB Size
TR7007D Plus:@5.5 μm, 6 μm - 400 x 330 mm, @10 & 15 μm - 510 x 460 mm TR7007D Plus DL:@10 μm, 15 μm - 510x310 mm x 2 Lanes, 510x590 mm x 1 Lane TR7007LD Plus:@6 μm, 10 μm, 15 μm - 765 x 610 mm
PCB Thickness
0.6 - 5mm
Max PCB Weight
3kg. Optional: 5kg
Top Clearance
@5.5 μm, 6 μm: 25 mm; @10 μm, 15 μm: 50 mm
Bottom Clearance
40 mm
Edge Clearance
3 mm
Conveyor Height
880 – 920 mm * SMEMA Compatible
Inspection Functions
Defects
Insufficient Paste Excessive Paste Shape Deformity Missing Paste & Bridging
Measurement
Height Area Volume Offset
Dimensions
WxDxH
TR7007D Plus: 1000 x 1400 x 1650 mm TR7007D Plus DL: 1000 x 1500 x 1650 mm TR7007LD Plus: 1365 x 1720 x 1710 mm Note: not including signal tower, signal tower height 515 mm
Weight
TR7007D Plus: 775 kg TR7007D Plus DL: 825 kg TR7007LD Plus: 982 kg
