INTRODUCTION

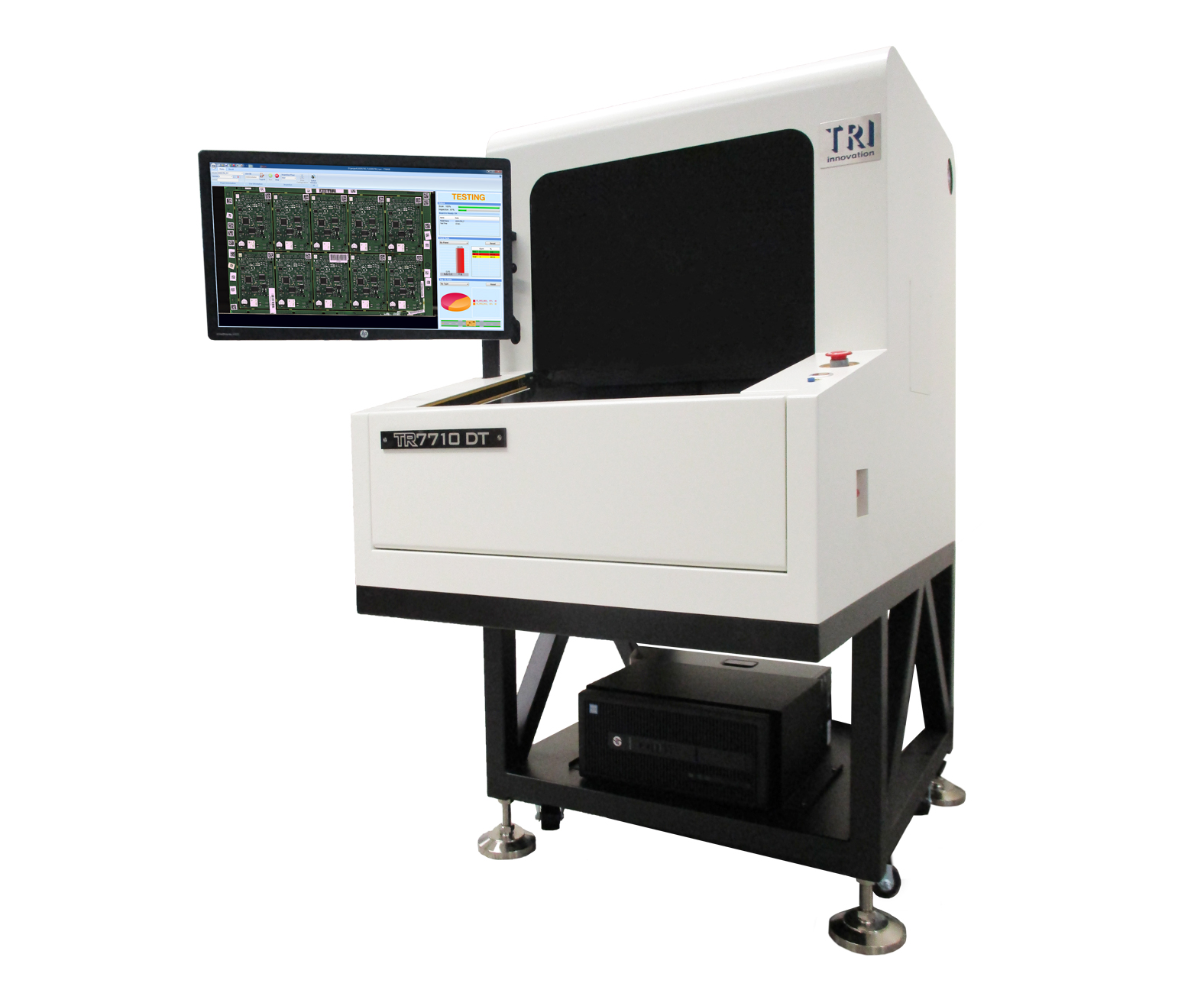

TR7710 DT为一项经济型、高弹性的走停式离线型AOI解决方案，结合了精确的高解析度相机和TRI独有的多相位光源来捕捉精细的PCB板影像。新型的光学解决方案拥有较高的景深范围，可针对高元件检测，提供多种间隙高度范围以精确检测PCB。TRI优越的检测软体拥有NPI最佳化编程精灵，能够展现优异的缺陷检测结果。简易的智能型CAD编程设计，使TR7710 DT成为一个具有高成本效益、高客制化的AOI解决方案，可满足您的预算需求。

• 经济型具弹性的离线型AOI解决方案
• 高感光6.5 Mpix 高速彩色相机
• NPI优化简易编程介面精灵
• 高景深范围走停式检测
• 10 µm或12.5 µm光学解析度

Optical System

Imaging Method
Camera
Imaging Resolution
Lighting
3D Technology
Field of View

Inspection Performance

Imaging Speed
Height Resolution
Max. Solder Height

Motion Table & Control

X-Axis Control
Y-Axis Control
Z-Axis Control
X-Y Axis Resolution
Z-Axis Resolution

Board Handling

Max PCB Size
PCB Thickness
Max PCB Weight
Top Clearance
Bottom Clearance
Edge Clearance
Conveyor Height

Inspection Functions

Defects
Measurement

Dimensions

WxDxH
Weight

Optical System

Imaging Method	Stop-and-Go Imaging
Top Camera	6.5 Mpix
Angle Camera	N/A
Imaging Resolution	10 µm, 12.5 µm (factory setting)
Lighting	Multi-phase RGB+W LED
3D Technology	N/A
Max. 3D Range	N/A

Inspection Performance

Imaging Speed

6.5 Mpix@ 10 µm: 22 cm²/sec
6.5 Mpix@ 12.5 µm: 35 cm²/sec

Motion Table & Control

X-Axis Control	Ballscrew + AC-servo controller
Y-Axis Control	Ballscrew + AC-servo controller
Z-Axis Control	N/A
X-Y Axis Resolution	1 µm

Board Handling

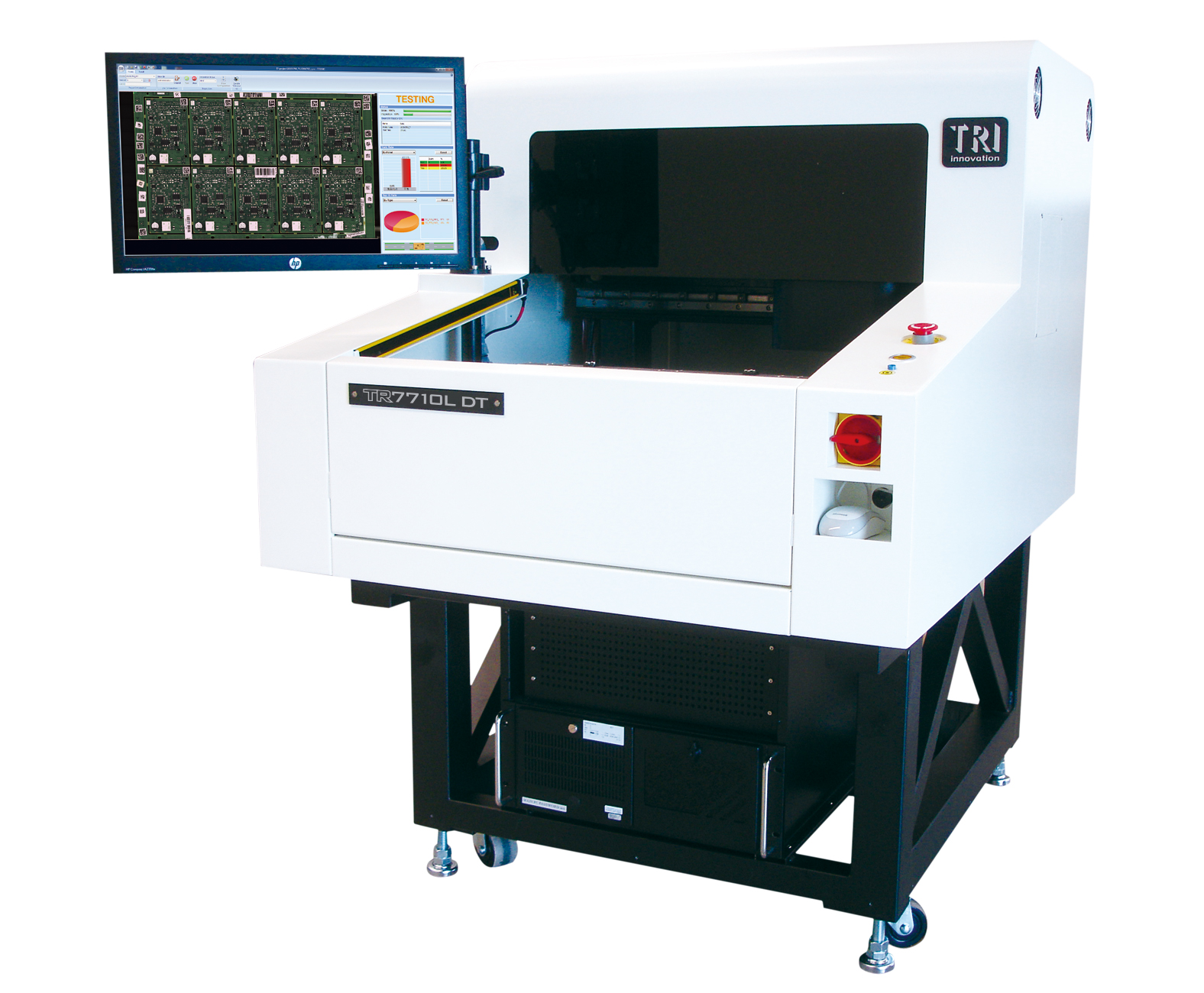

Max PCB Size	TR7710 DT: 330 x 250 mm TR7710L DT: 510 x 460 mm
PCB Thickness	3 mm
Max PCB Weight	3 kg
Top Clearance	25 mm
Bottom Clearance	100 mm
Edge Clearance	3 mm
Conveyor	Manual

Inspection Functions

Component	Missing Tombstoning Billboarding Polarity Rotation Shift Wrong Marking (OCV) Defective Upside Down Extra Component Foreign Material
Solder	Excess Solder Insufficient Solder Bridging Through-hole Pins Lifted Lead Golden Finger Scratch/Contamination

Dimensions

WxDxH	TR7710 DT: 800 x 1100 x 1480 mm TR7710L DT: 970 x 1295 x 1465 mm
Weight	TR7710 DT: 340 kg TR7710L DT: 380 kg

Imaging System

Camera
X-ray Source
Imaging Resolution
Inspection Method

Motion Table & Control

X-Axis Control
Y-Axis Control
Z-Axis Control
X-Y Axis Resolution

Board Handling

Max PCB Size
PCB Thickness
Max PCB Weight
Top Clearance
Bottom Clearance
Edge Clearance
Conveyor Height

Inspection Functions

Capabilities
Defects

Dimensions

WxDxH
Weight
Power Requirement
