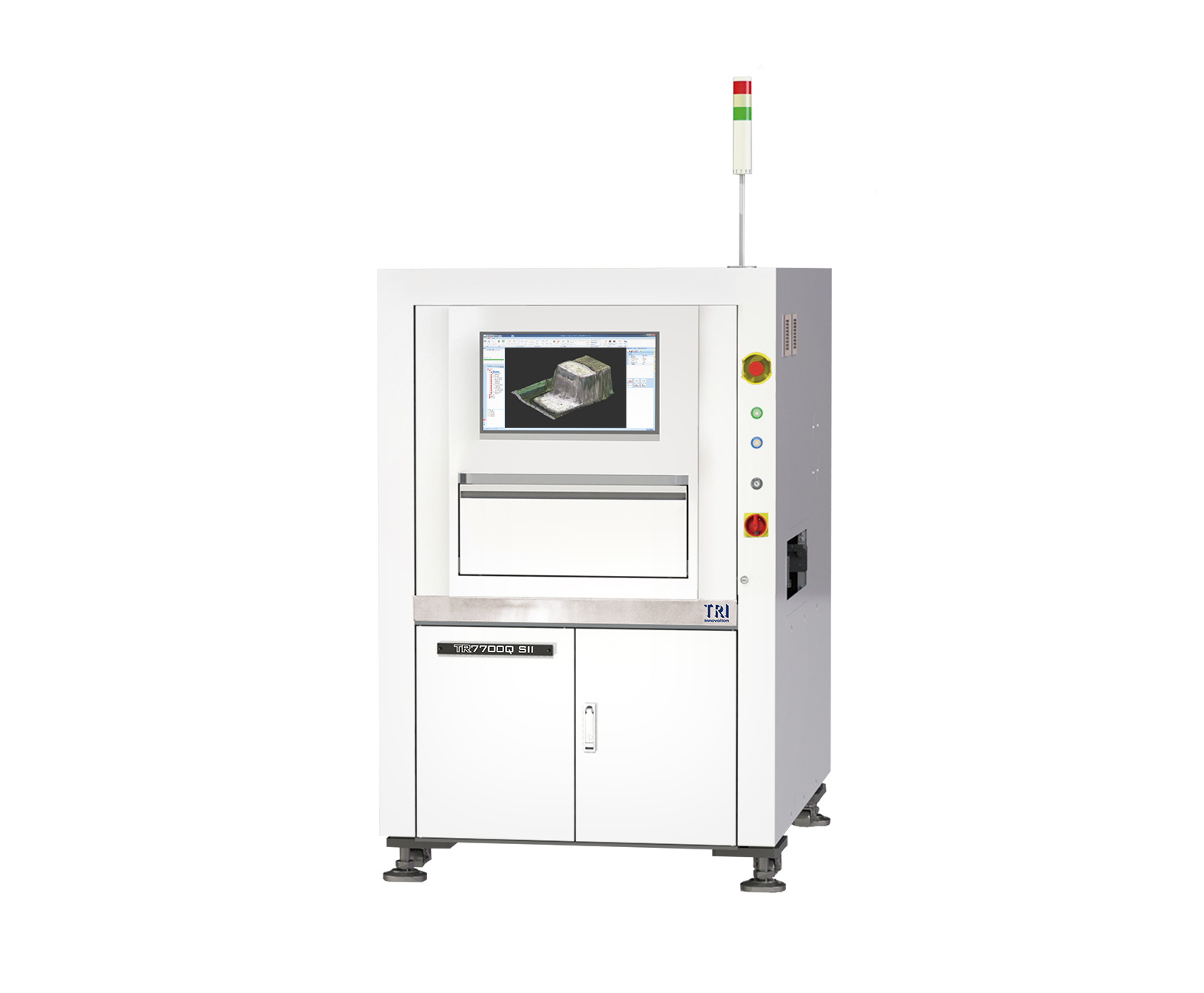

自动光学检测机 (AOI)

TR7700Q SII藉由TRI智能编程具有自动学习、灵活检测演算法和量测功能，可针对智能工厂应用进行精确的测量和数据交换。此外，透过TR7700Q SII走停式取像技术与先进的平台稳定性，可得到更高的检测精准度和完善的Gauge R&R数值。

• 业界领先的检测速度，可达57 cm² / sec
• 多重3D检测技术
• 完善的GR＆R数值提供高精准检测

Defects
Measurement

WxDxH
Weight

Imaging Method	Stop-and-Go
Top Camera	12 MP/21 MP High Speed Camera
Angle Camera	N/A
Imaging Resolution	9.8 µm, 10 µm, 12 µm, 15 µm (factory setting)
Lighting	Multi-phase True Color LED
3D Technology	Quad Digital Fringe Projectors
Max. 3D Range	@ 9.8 μm: 40 mm @ 10 μm: 40 mm @ 12 μm: 40 mm @ 15 μm: 40 mm

Imaging Speed

@ 9.8 μm: 40 cm²/sec
@ 10 μm: 25 cm²/sec
@ 12 μm: 37 cm²/sec
@ 15 μm: 57 cm²/sec

X-Axis Control	Ballscrew + AC Servo with Motion Controller
Y-Axis Control	Ballscrew + AC Servo with Motion Controller
Z-Axis Control	Ballscrew + AC Servo with Motion Controller
X-Y Axis Resolution	1 μm

Max PCB Size	TR7700Q SII: 510 x 460 mm TR7700LQ SII: 765 x 610 mm TR7700Q SII DL: 510 x 310 mm x 2 lanes, 510 x 590 mm x 1 lane
PCB Thickness	0.6-5 mm
Max PCB Weight	TR7700Q SII: 3 kg. Optional: 5kg TR7700LQ SII: 3 kg (6.61 lb). Optional: 5 kg (11.02 lb) / 12 kg (26.46 lb) TR7700Q SII DL: 3 kg. Optional: 5kg
Top Clearance	@ 9.8 μm: 50 mm @ 10 μm: 50 mm @ 12 μm: 50 mm @ 15 μm: 50 mm
Bottom Clearance	40 mm
Edge Clearance	3 mm. Optional: 4 mm / 5 mm
Conveyor	Inline Height: 880 – 920 mm * Optional: 940-965 mm (SMEMA compatible)

Component	Missing, Tombstoning, Billboarding, Polarity, Rotation, Shift, Wrong Marking (OCV), Defective, Upside Down, Extra Component, Foreign Material, Lifted Component
Solder	Solder Fillet Height, Solder Volume %, Excess Solder, Insufficient Solder, Bridging, Through-hole Pins, Lifted Lead, Golden Finger Scratch/ Contamination

WxDxH	TR7700Q SII: 1100 x 1720 x 1710 mm TR7700LQ SII: 1365 x 1720 x 1710 mm TR7700Q SII DL: 1100 x 1820 x 1710 mm Note: not including signal tower, signal tower height 515 mm
Weight	TR7700Q SII: 910 kg TR7700LQ SII: 1025 kg TR7700Q SII DL: 960 kg

Capabilities
Defects
