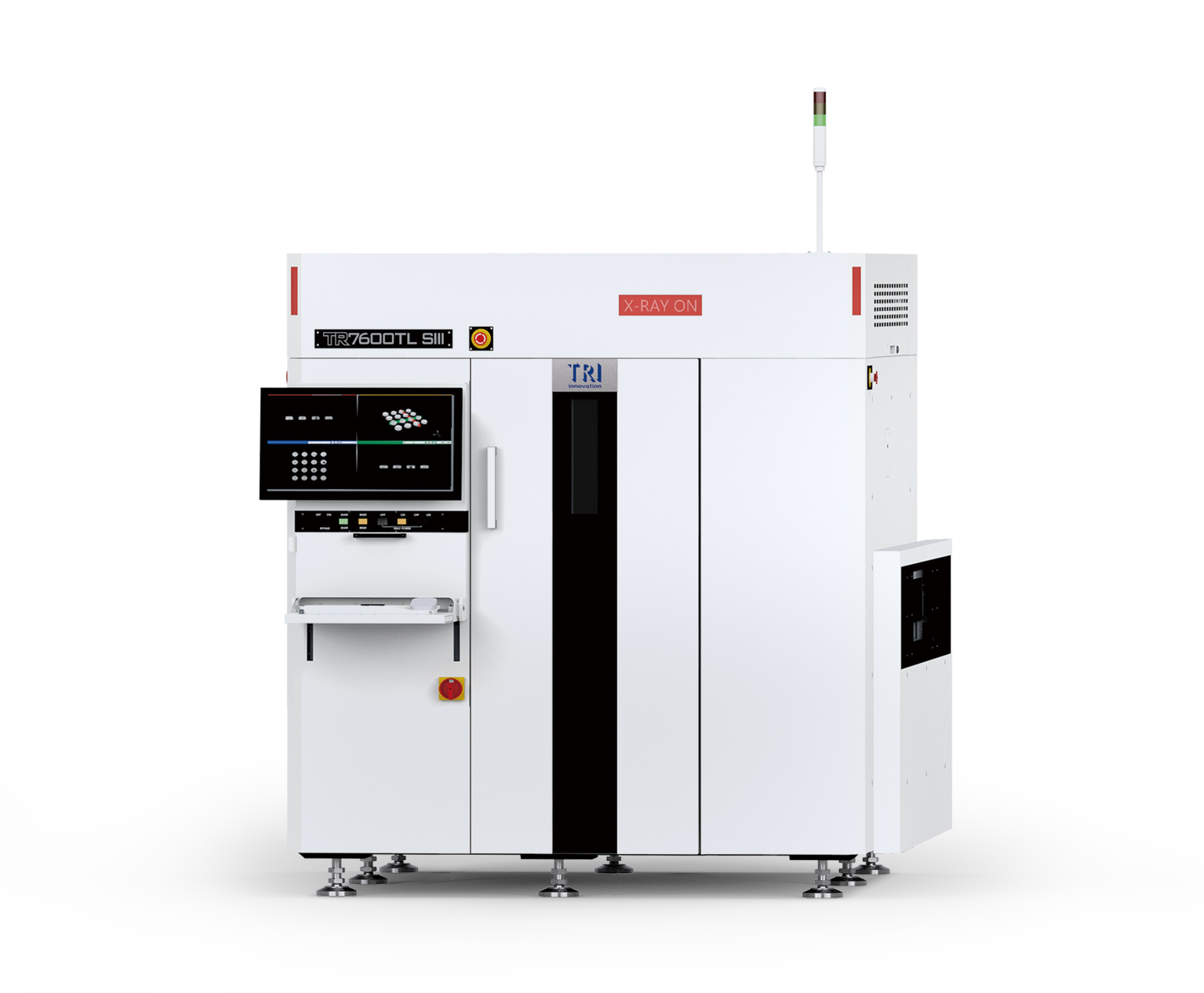

TR7600TL SIII
 |
|
|
|
TR7600TL SIII
|
|
|
INTRODUCTION
新型的TR7600TL SIII在线型扫描3D AXI，专为检测大尺寸电路板（最大可达1200mm x 660mm）而设计，并拥有专属的CT功能。TR7600TLSIII系列平台可在不牺牲成像分辨率的情况下，同时提供出色的速度和性能。
• 超高速3D CT X射线检测
• 优越分辨率检测特大尺寸电路板
• 拥有完善演算法的智能编程
Optical System
| Imaging Method |
|
| Camera |
|
| Imaging Resolution |
|
| Lighting |
|
| 3D Technology |
|
| Field of View |
|
Inspection Performance
| Imaging Speed |
|
| Height Resolution |
|
| Max. Solder Height |
|
Motion Table & Control
| X-Axis Control |
|
| Y-Axis Control |
|
| Z-Axis Control |
|
| X-Y Axis Resolution |
|
| Z-Axis Resolution |
|
Board Handling
| Max PCB Size |
|
| PCB Thickness |
|
| Max PCB Weight |
|
| Top Clearance |
|
| Bottom Clearance |
|
| Edge Clearance |
|
| Conveyor Height |
|
Optical System
| Imaging Method |
|
| Top Camera |
|
| Angle Camera |
|
| Imaging Resolution |
|
| Lighting |
|
| 3D Technology |
|
| Max. 3D Range |
|
Motion Table & Control
| X-Axis Control |
|
| Y-Axis Control |
|
| Z-Axis Control |
|
| X-Y Axis Resolution |
|
Board Handling
| Max PCB Size |
|
| PCB Thickness |
|
| Max PCB Weight |
|
| Top Clearance |
|
| Bottom Clearance |
|
| Edge Clearance |
|
| Conveyor |
|
Imaging System
| Camera |
Ultra-High Speed Line-Scan CCD Cameras. 3 or 5 Units (9 or 15 Sensors) |
| X-ray Source |
60 -130 kV |
| Imaging Resolution |
10 μm - 25 μm |
| Inspection Method |
2D, 2.5D, 3D Slicing, Planar CT (optional) |
Motion Table & Control
| X-Axis Control |
High-precision ballscrew + AC-servo controller |
| Y-Axis Control |
High-precision ballscrew + AC-servo controller |
| Z-Axis Control |
High-precision ballscrew + AC-servo controller |
| X-Y Axis Resolution |
N/A |
Board Handling
| Max PCB Size |
1200 x 660 mm |
| PCB Thickness |
0.6-7 mm |
| Max PCB Weight |
12 kg |
| Top Clearance |
@ 25 μm: 50 mm
@ 20 μm: 50 mm
@ 15 μm: 30 mm
@ 10 μm*: 15 mm
* For confirming the specific technical requirements, please contact TRI’s sales representative |
| Bottom Clearance |
@ 25 μm: 55 mm
@ 20 μm: 70 mm
@ 15 μm: 70 mm
@ 10 μm: 70 mm |
| Edge Clearance |
3 mm or 5 mm |
| Conveyor Height |
880 - 920 mm. Optional: 940-965 mm
* SMEMA Compatible |
Inspection Functions
| Capabilities |
Missing
Misalignment
Tombstone
Billboard
Tantalum Polarity
Rotation
Floating |
| Defects |
Insufficient/Excess Solder
Bridging
Open
Solder Ball
Non-wetting
Void
Lifted Lead |
Dimensions
| WxDxH |
2014 x 2000 x 1940 mm
Note: not including signal tower, height: 510 mm |
| Weight |
4750 kg |
| Power Requirement |
200 – 240 VAC, Three Phase, 50 / 60 Hz, 7 kVA. Optional: 346 – 416 VAC Three Phase Transformer |
|
