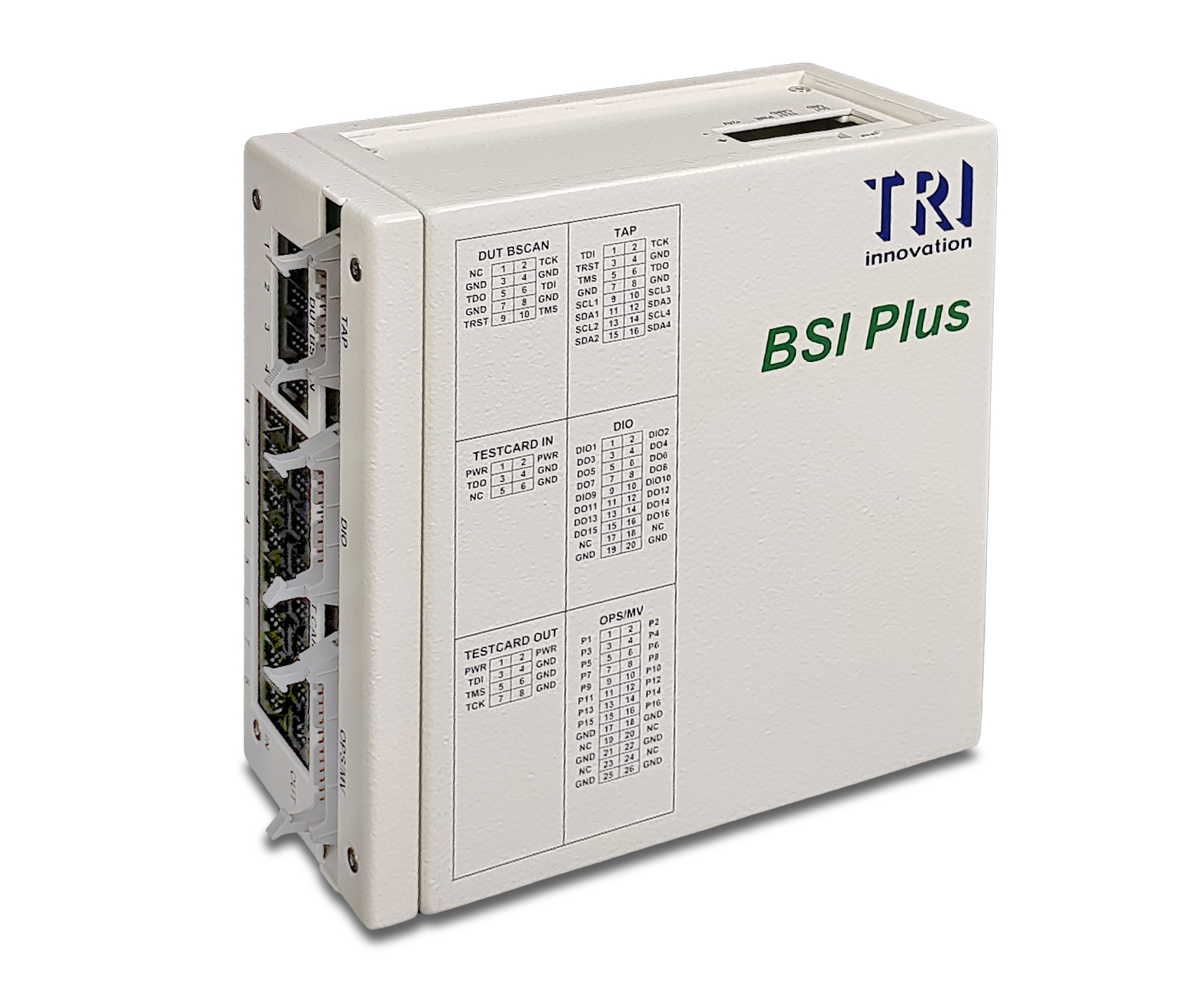

BSI Plus

INTRODUCTION

The BSI Plus (Boundary Scan Interconnect) is TRI's Boundary Scan Chain Tester for different connectors such as DDR4, USB, PCIe, and M.2 SATA. The BSI Plus Tester is easy to program, and integrate with the desired fixture. The BSI Plus can perform an OPS test and battery test before powering on the DUT to ensure the correctness of the board.

• Boundary Scan Interconnect Chain Test for Different Connectors
• Easy integration BSI Hardware and Fixture PLC Control Command Editing
• Smart Programming with Auto Test Program Generator

General

Operating System	Microsoft^® Windows 10
Power Requirement	240 V, Single Phase, 50/60 Hz, 240 W

Hardware

DUT BSCAN	4 channel JTAG Output voltage adjustable from 0 to 5 V
TEST CARD	8 channel fixed 3.3 V JTAG Out taps connect to test card's TDI In taps connect to test card's TDO
Digital I/O Control Pins	16 pins (DIO x 4 pins, DO x 12 pins) DIO is 0~5 V in-out pins / DO is 0 ~ 5V output pins
OPS/MV	16 channel voltage and open-short measurement 0~50 V 0~100 ohm
Vreg Test	32 Channels (Max. 128 Channels)
I2C Function	4 channels

Supported Test Card — Boundary Scan / Open/short test

Simulated Test Cards

DDR4
USB
PCIe
M.2 SATA

Dimensions

WxDxH	180 x 180 x 80 mm
Weight	5 kg
