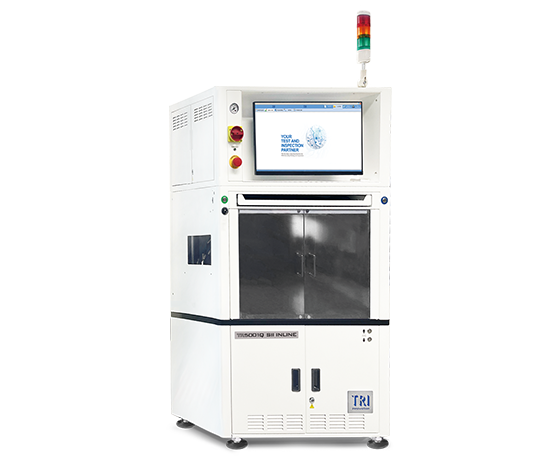

TR5001 SII INLINE SERIES
TR5001 SII INLINE
INTRODUCTION
Next generation parallel inline ICT+FCT solution offers breakthrough performance Multi-Core Parallel testing with up to 4 independent cores for high throughput. SMEMA-compatible inline handler reduces operator workload and increases throughput, and durable Quick Disconnect Interface together with built-in auto-calibration and self-diagnostics ensure long-term testing reliability.
• New Generation Flexible Multi-Core Parallel Tester
• State-of-the-Art Serial Test Controller with up to 8 ports on any pin
• Limited access solution and functional test expansion using PXI modules
• Built-in Self Diagnostics and Auto-Calibration function
• High-Accuracy Measurement and Testing
• SMEMA compatible inline high fault coverage test solution
• Intuitive UI with flow-based easy program development
Tester Specifications
Analog/hybrid test points
TR5001Q(L) SII INLINE: 4,096
Operating System
Microsoft® Windows compatible PC with USB, Windows 10
Fixture Type
Inline with long lifespan Quick Disconnection Interface
Standard Testing Components
Analog Test Hardware
6-wire measurement switching matrix
Programmable AC/DC/DC High voltage and current sources
AC/DC voltage, DC current measurement
Component R/L/C measurement
Optional Components
Analog Hardware
TestJet vectorless open circuit detection
Arbitrary Waveform Generator
Digital Testing
Non-multiplexing 1:1 per pin architecture with independent per-pin level setting
Serial Test Controller (STC) Programming
DUT power supplies: 5 V@3 A, 3.3 V@3 A, 12 V@3A, -12 V@1 A and 24 V@3 A
DPS Programmable DUT Power supply :(1) DPS3514: 30Vmax/5Amax/100Wmax per channel /4CH per DPS
Programmable DUT power supplies: 75 V / 8 A max, 200W maximum output power
Includes BScan Chain Test, BScan Cluster Test, BScan Virtual Nails Test, BScan Virtual Chain Test and IEEE1149.6 Test
Up to 8 High Speed Serial Ports, On-board Flash, EEPROM, MAC programming
Yield Management System
YMS 4.0
Board Handling
Min. PCB Size
50 x 50 mm
Max. PCB Size
510 x 510 mm
PCB Thickness
0.6 - 5 mm
Dimensions
WxDxH
TR5001(D/Q) SII INLINE: 900 x 1080 x 1660 mm
TR5001(D/Q)L SII INLINE: 1000 x 1230 x1676 mm
Note: not including signal tower,signal tower height: 390 mm
Weight
TR5001(D/Q) SII INLINE: 670 kg
TR5001(D/Q)L SII INLINE: 720 kg
