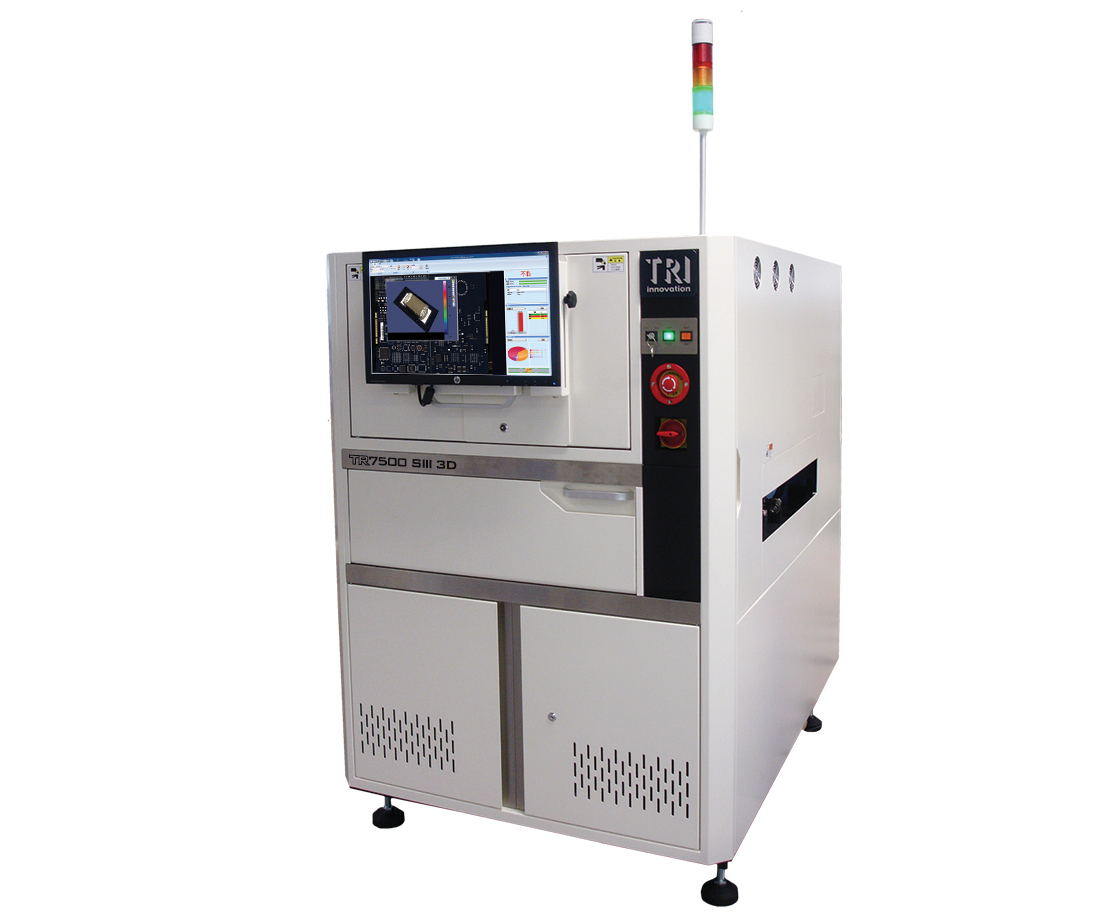

  • TR7500 SIII 3D

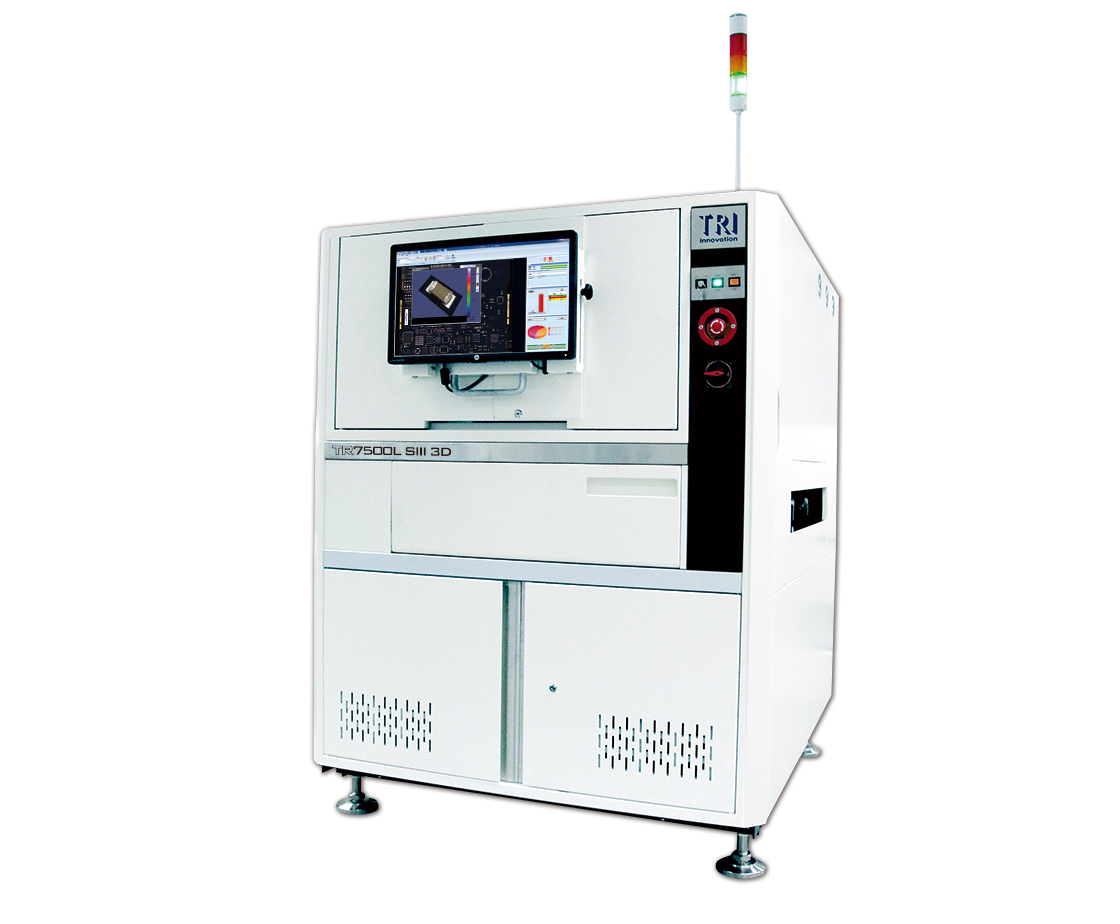

  • TR7500L SIII 3D
TR7500 SIII 3D

INTRODUCTION

TRI's optimum 3D AOI solution delivers the fastest multi-angle PCB inspection coupled with blue-laser-based true 3D profile measurement for the highest automated optical defect symptoms coverage possible. Combining state-of-the-art software solution and third generation intelligent hardware platform, the TR7500 SIII 3D offers robust 3D solder and component defect inspection and with high inspection coverage and easy programming.
  •  • High Speed Color Multi-angle Inspection of Up to 01005 Components
     • High Defect Coverage Using Hybrid 2D+3D Inspection Technology
     • True 3D Profile Measurement Using Dual Laser Units
     • Rapid Programming Interface with Auto Library and Offline Editing
