INTRODUCTION

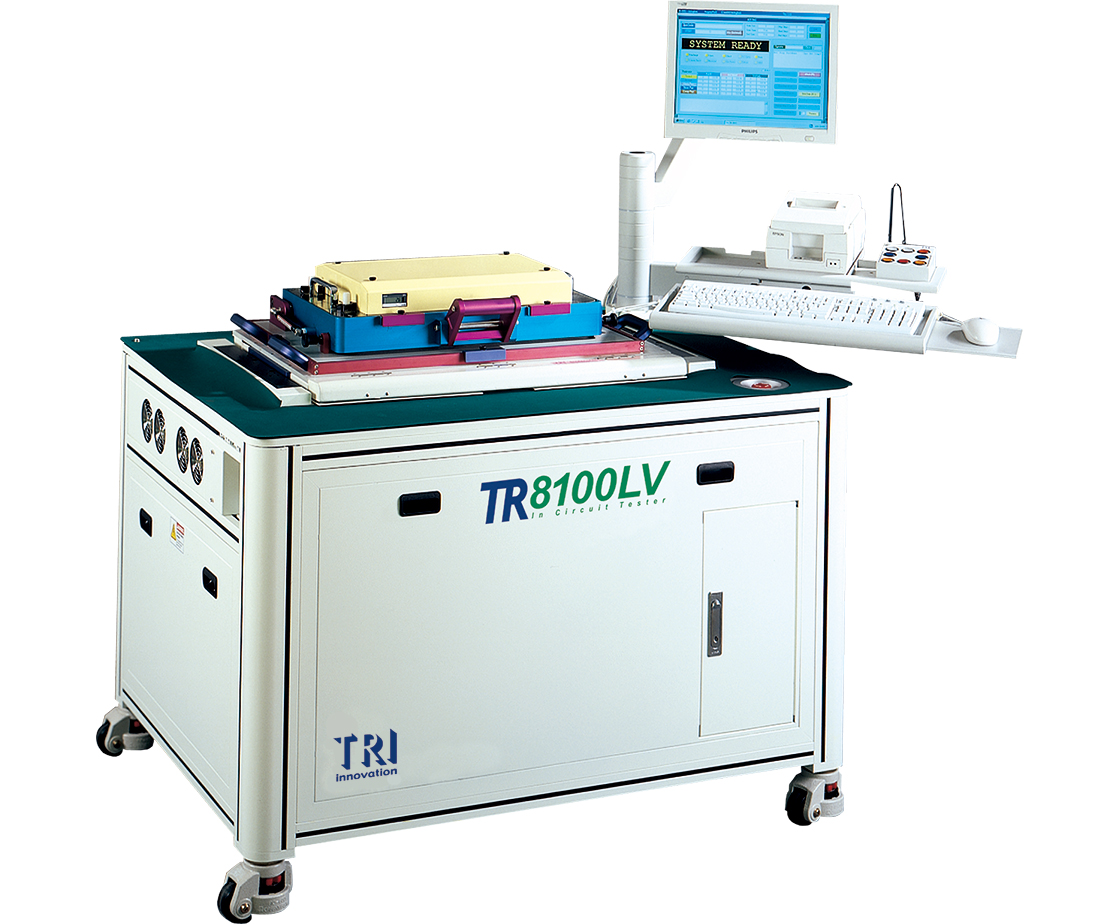

Designed for testing large and complex PCBAs, the TR8100LV is TRI's top-of-the-line board test system targeting the low-voltage testing market. TR8100LV's vacuum system ensures full pin contact and with up to 3,584 pin digital MUX-free architecture, the system allows for faster and simpler testing of large pin-count devices and fast program development. Included *TRI ToggleScan® and VregTest® technology combine Boundary Scan with solutions for limited test access boards. *"ToggleScan®" and " VregTest®" are registered trademarks of Test Research, Inc.
-
• Digital 1:1 driver/receiver per pin architecture design
• High fault coverage test solution with vacuum fixture
• Low voltage device testing and rapid test speed
• Friendly UI with fast and easy program development
Tester Specifications
Analog/hybrid test points |
TR8100LV: 3584
TR8100LLV: 5632 |
Operating System |
Microsoft® Windows compatible PC, Windows 10 |
Fixture Type |
Offline press or vacuum type fixture |
Standard Testing Components
Analog Test Hardware |
-
6-wire measurement switching matrix
-
Programmable AC/DC/DC High voltage and current sources
-
AC/DC voltage, DC current measurement, frequency
-
Component R/L/C measurement
-
Synthesized Arbitrary Waveform Generator
-
TestJet vectorless open circuit detection
|
Digital Testing |
-
Non-multiplexing 1:1 per pin architecture with independent per-pin level setting
-
DUT power supplies: 5 V@5 A, 3.3 V@5 A, 12 V@5A, 0.2~20 V@3 A and -3~-20 V@3 A
-
On-board Flash, EEPROM, MAC programming
|
Optional Components
Analog Hardware |
Fixture Conversion Kits for Teradyne, GenRad |
Digital Testing |
-
Programmable DUT power supplies: 75 V / 8 A, 200W maximum output power
-
Includes BScan Chain Test, BScan Cluster Test, BScan Virtual Nails Test, BScan Virtual Chain Test and IEEE1149.6 Test
|
Yield Management System |
YMS 4.0 |
Dimensions
WxDxH |
TR8100LV: 1150 x 850 x 800 mm
TR8100LLV: 1550 x 850 x 800 mm |
Weight |
TR8100LV: 390 kg
TR8100LLV: 450 kg |
