Automated X-ray Inspection (AXI)

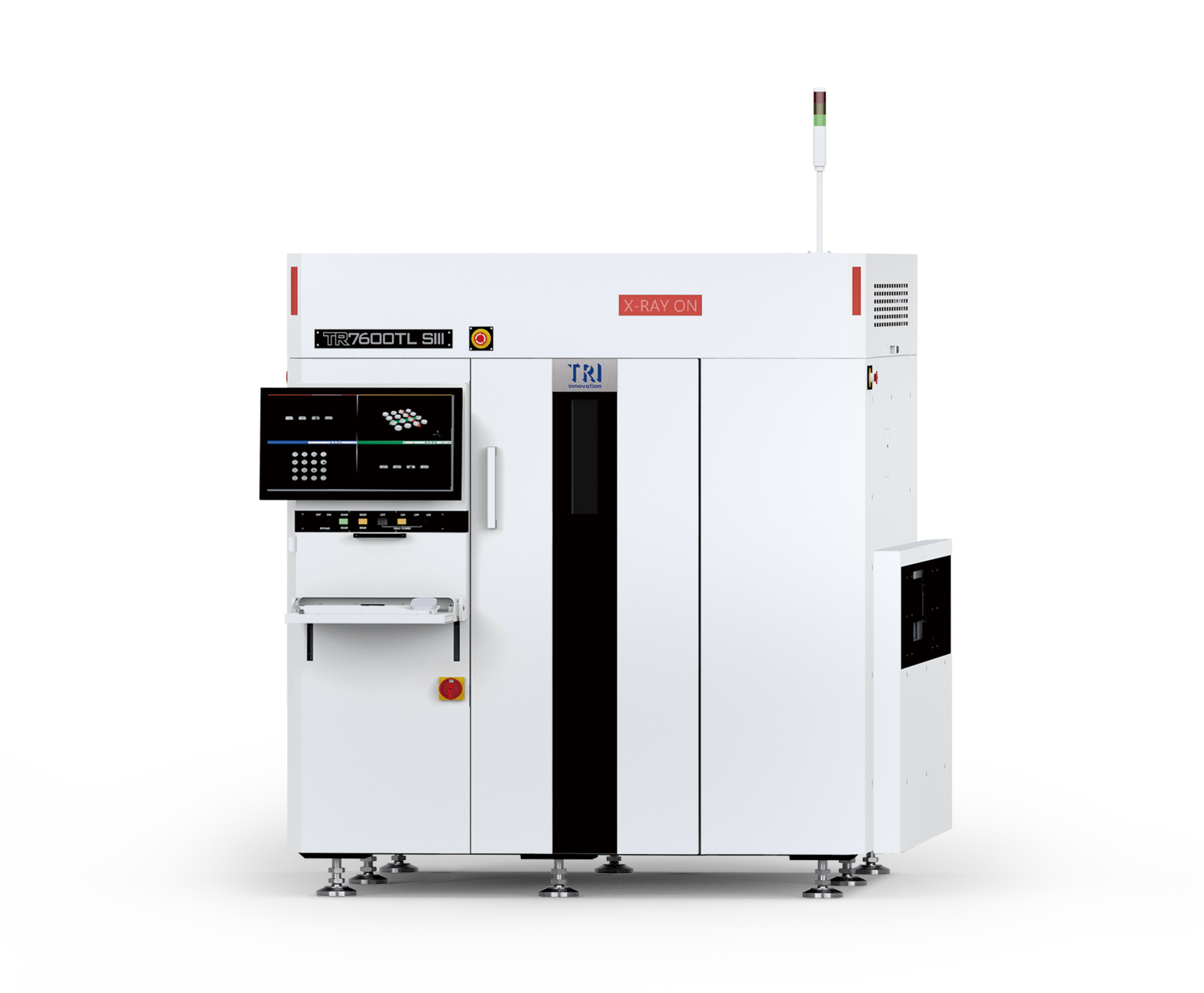

TR7600TL SIII
TR7600TL SIII
INTRODUCTION
The TR7600TL SIII is the new Inline line scan 3D AXI, with CT capabilities, designed for the inspection of larger board sizes, up to 1200mm x 660mm. The TR7600TL SIII Series platform delivers exceptional speed and performance without compromising imaging resolution.
• Ultra-High Speed 3D CT X-Ray Inspection
VIDEO
Optical System
Imaging Method
Camera
Imaging Resolution
Lighting
3D Technology
Field of View
Inspection Performance
Imaging Speed
Height Resolution
Max. Solder Height
Motion Table & Control
X-Axis Control
Y-Axis Control
Z-Axis Control
X-Y Axis Resolution
Z-Axis Resolution
Board Handling
Max PCB Size
PCB Thickness
Max PCB Weight
Top Clearance
Bottom Clearance
Edge Clearance
Conveyor Height
Optical System
Imaging Method
Top Camera
Angle Camera
Imaging Resolution
Lighting
3D Technology
Max. 3D Range
Motion Table & Control
X-Axis Control
Y-Axis Control
Z-Axis Control
X-Y Axis Resolution
Board Handling
Max PCB Size
PCB Thickness
Max PCB Weight
Top Clearance
Bottom Clearance
Edge Clearance
Conveyor
Imaging System
Camera
Ultra-High Speed Line-Scan CCD Cameras (3 or 5 Units)
X-ray Source
Microfocus tube 130 kV max (user adjustable)
Imaging Resolution
10 μm, 15 μm, 20 μm, 25 μm (user Selectable)
Inspection Method
2D, 2.5D, 3D Slicing, Planar CT (optional)
Motion Table & Control
X-Axis Control
High-precision ballscrew + AC-servo controller
Y-Axis Control
High-precision ballscrew + AC-servo controller
Z-Axis Control
High-precision ballscrew + AC-servo controller
X-Y Axis Resolution
N/A
Board Handling
Max PCB Size
Standard: 610 x 660 mm
PCB Thickness
0.6-7 mm
Max PCB Weight
12 kg
Top Clearance
@ 25 μm: 50 mm
Bottom Clearance
@ 25 μm: 55 mm
Edge Clearance
3 mm or 5 mm
Conveyor Height
880 - 920 mm
Inspection Functions
Capabilities
Missing
Defects
Insufficient/Excess Solder
Dimensions
WxDxH
2014 x 2000 x 1940 mm
Weight
4750 kg
Power Requirement
200 – 240 VAC, Three Phase, 50 / 60 Hz, 7 kVA. Optional: 346 – 416 VAC Three Phase Transformer
