Automated Optical Inspection (AOI)

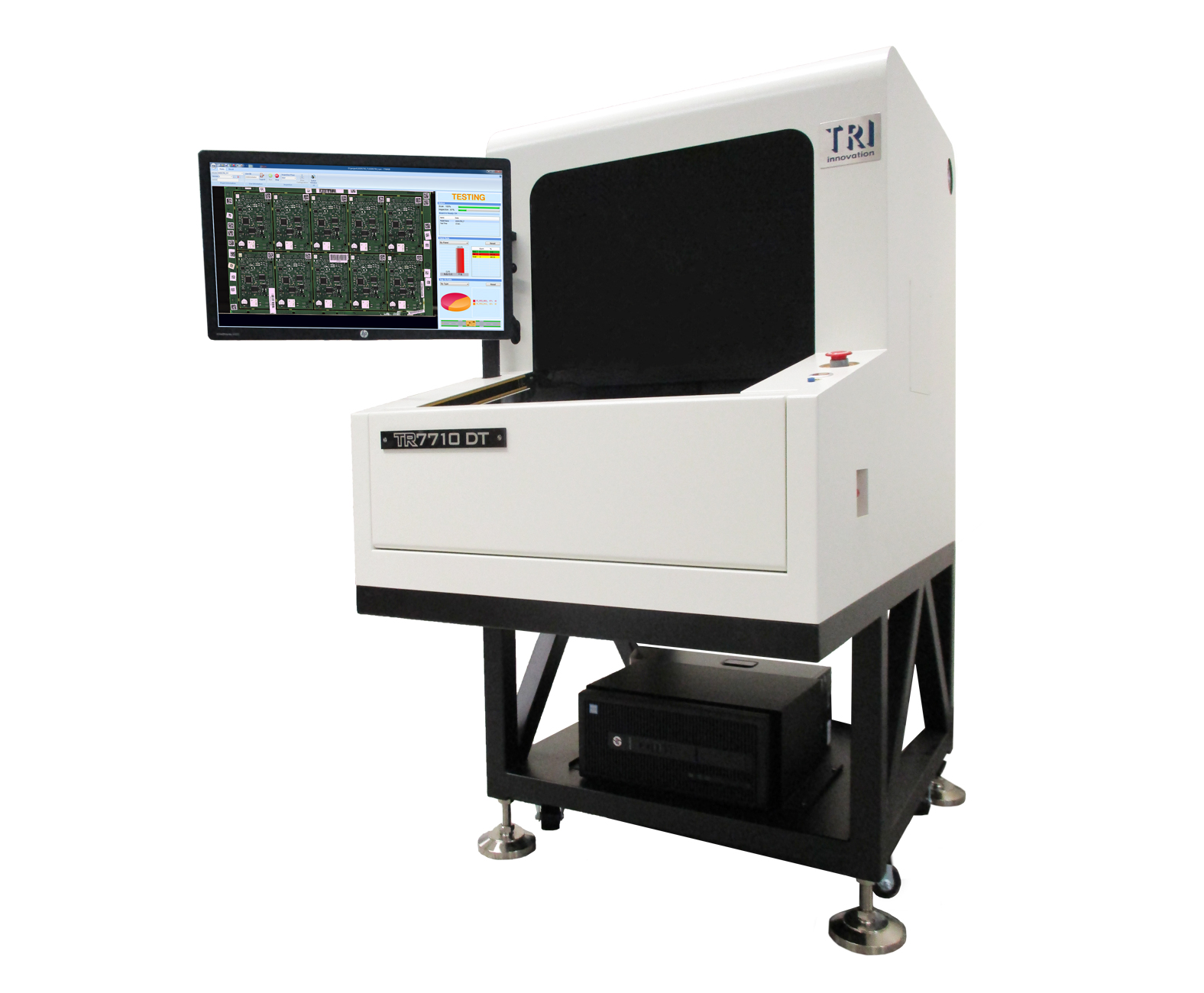

TR7710 DT

INTRODUCTION

The TR7710 DT is an economical, flexible stop-and-go desktop AOI solution that combines a precise high resolution camera system and TRI's exclusive multi-phase lighting to capture detailed PCB panel images. New optical solution offers increased DOF range for tall components with optional high clearance. TRI's advanced inspection software offers NPI-optimized programing interface with excellent issue detection. With easy smart CAD-based programming, the TR7710 DT is a cost effective, customizable AOI solution designed to fit any budget.
•  Economical and flexible desktop AOI solution
•  6.5 Mpix high speed color camera
•  NPI-optimized easy programming interface wizard
•  Stop-and-Go inspection with large depth of field (DOF)
•  10 µm or 12.5 µm optical resolution
