INTRODUCTION
Next generation ICT+FCT solution offers breakthrough performance Multi-Core Parallel/Merged Core testing with up to 4 independent cores for high-throughput testing. TRI's most advanced manual handler features industry-approved hands-free safety design for uninterrupted operation, and built-in auto-calibration ensures long-term testing reliability.
• New Generation Flexible Multi-Core Parallel / Merged-Core Tester
Tester Specifications
Analog/hybrid test points

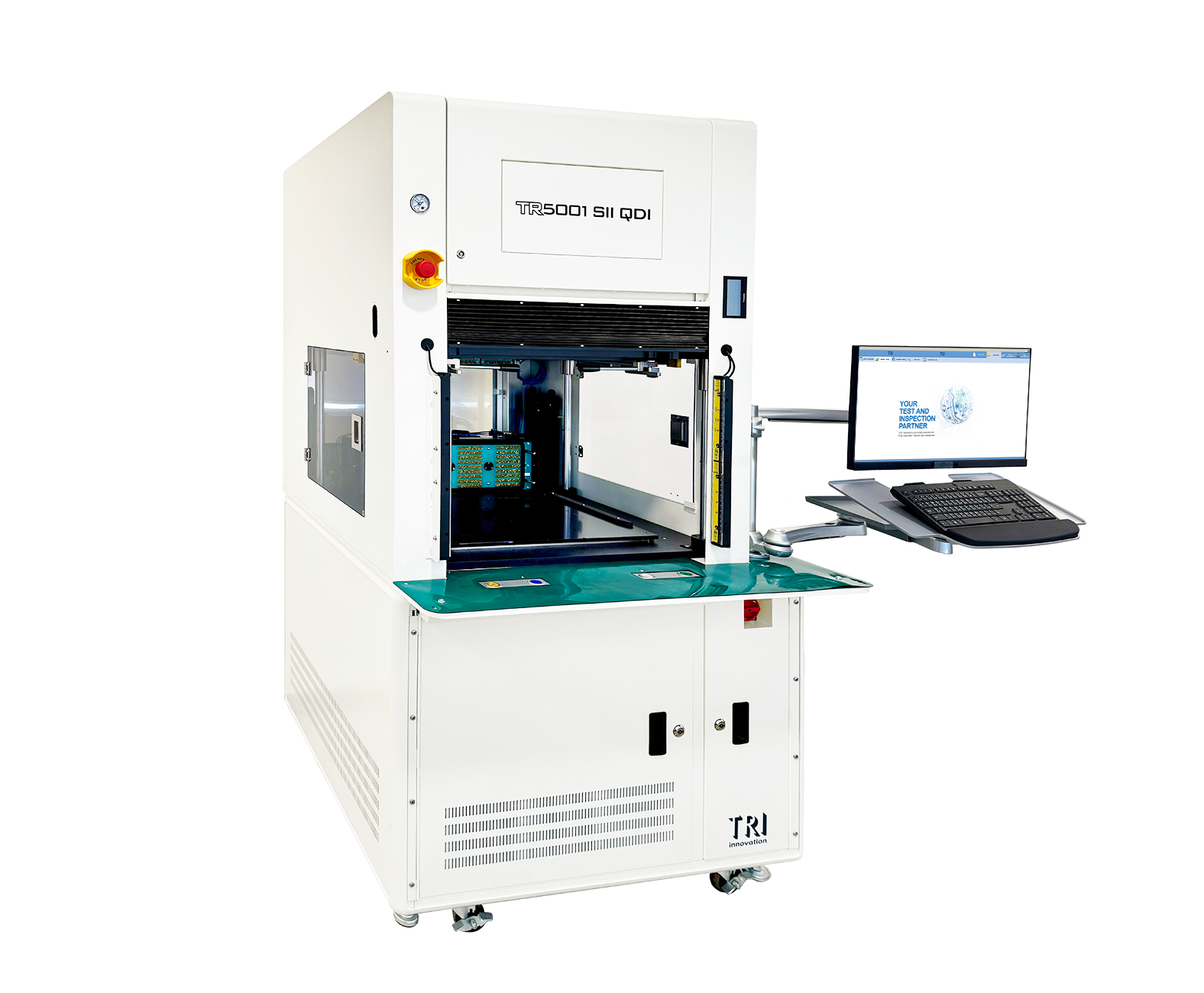

TR5001Q SII QDI: 4096
TR5001D SII QDI: 3328
Operating System
Microsoft® Windows compatible PC with USB, Windows 10
Fixture Type
Offline press type fixture with QDI
Standard Testing Components
Analog Test Hardware
6-wire measurement switching matrix
Programmable AC/DC/DC High voltage and current sources
AC/DC voltage, DC current measurement
Component R/L/C measurement
Optional Components
Analog Hardware
TestJet vectorless open circuit detection
Arbitrary Waveform Generator
Digital Testing
Non-multiplexing 1:1 per pin architecture with independent per-pin level setting
Serial Test Controller (STC) Programming
DUT power supplies: 5 V@3 A, 3.3 V@3 A, 12 V@3A, -12 V@1 A and 24 V@3 A
DPS Programmable DUT Power supply :(1) DPS3514: 30Vmax/5Amax/100Wmax per channel /4CH per DPS
Programmable DUT power supplies: 75 V / 8 A max, 200W maximum output power
Includes BScan Chain Test, BScan Cluster Test, BScan Virtual Nails Test, BScan Virtual Chain Test and IEEE1149.6 Test
Up to 8 High Speed Serial Ports, On-board Flash, EEPROM, MAC programming
Yield Management System
YMS 4.0
Dimensions
WxDxH
1200 x 950 x 1850 mm
Weight
700 kg
