Automated X-ray Inspection (AXI)
|

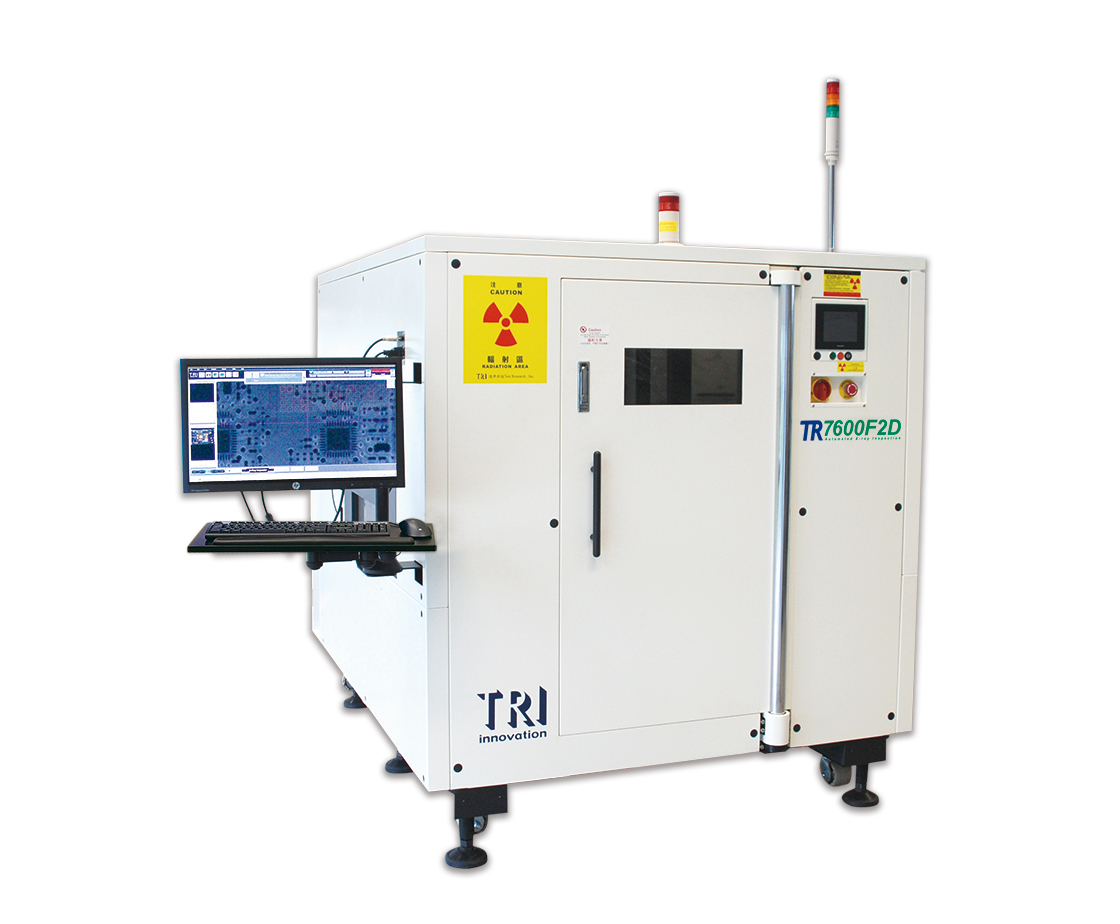

TR7600F2D
 |
|
|
|
TR7600F2D
|
|
|
INTRODUCTION
TR7600F2D is a high performance inline 2.5D AXI specialized for single layer PCB and FPCB assemblies requiring highest image quality. Ideal for mobile electronics applications, the TR7600F2D can reliably detect microscopic voids, 01005 solder defects, and many QFN and BGA problems. Combining a fully automated programming and multi-resolution programs help maximize production yields on any production line.
-
• Ultra-high-resolution edge to edge inspection up to 900 mm x 460 mm
• Automated programming saves hours of engineer workload
• Multi resolution programs and advanced processing for superior image quality
• 2D and off-axis imaging for shadow-free inspection
• X-ray tube with adjustable output up to 130 kV/300 µA
Optical System
| Imaging Method |
|
| Camera |
|
| Imaging Resolution |
|
| Lighting |
|
| 3D Technology |
|
| Field of View |
|
Inspection Performance
| Imaging Speed |
|
| Height Resolution |
|
| Max. Solder Height |
|
Motion Table & Control
| X-Axis Control |
|
| Y-Axis Control |
|
| Z-Axis Control |
|
| X-Y Axis Resolution |
|
| Z-Axis Resolution |
|
Board Handling
| Max PCB Size |
|
| PCB Thickness |
|
| Max PCB Weight |
|
| Top Clearance |
|
| Bottom Clearance |
|
| Edge Clearance |
|
| Conveyor Height |
|
Optical System
| Imaging Method |
|
| Top Camera |
|
| Angle Camera |
|
| Imaging Resolution |
|
| Lighting |
|
| 3D Technology |
|
| Max. 3D Range |
|
Motion Table & Control
| X-Axis Control |
|
| Y-Axis Control |
|
| Z-Axis Control |
|
| X-Y Axis Resolution |
|
Board Handling
| Max PCB Size |
|
| PCB Thickness |
|
| Max PCB Weight |
|
| Top Clearance |
|
| Bottom Clearance |
|
| Edge Clearance |
|
| Conveyor |
|
Imaging System
| Camera |
High resolution flat panel camera |
| X-ray Source |
Microfocus tube 130 kV max (user adjustable) |
| Imaging Resolution |
5 μm, 10 μm, 15 μm (factory setting) |
| Inspection Method |
2D, 2.5D |
Motion Table & Control
| X-Axis Control |
High-precision ballscrew + AC-servo controller |
| Y-Axis Control |
High-precision ballscrew + AC-servo controller |
| Z-Axis Control |
High-precision ballscrew + AC-servo controller |
| X-Y Axis Resolution |
N/A |
Board Handling
| Max PCB Size |
900 x 460 mm |
| PCB Thickness |
0.6-5 mm |
| Max PCB Weight |
3 kg [8 kg optional] |
| Top Clearance |
@ 15 μm: 30 mm
@ 10 μm: 20 mm
@ 5 μm: 10 mm
|
| Bottom Clearance |
40 mm |
| Edge Clearance |
3 mm |
| Conveyor Height |
880 - 920 mm
* SMEMA Compatible
|
Inspection Functions
| Capabilities |
Missing
Misalignment
Tombstone
Billboard
Tantalum Polarity
Rotation
Floating
|
| Defects |
Insufficient/Excess Solder
Bridging
Open
Solder Ball
Non-wetting
Void
Lifted Lead
|
Dimensions
| WxDxH |
1500 x 2060 x 1650 mm
Note: not including signal tower, height: 515 mm
|
| Weight |
3250 kg |
| Power Requirement |
200 – 240 VAC single phase, 50/60 Hz, 4 kVA |
|
