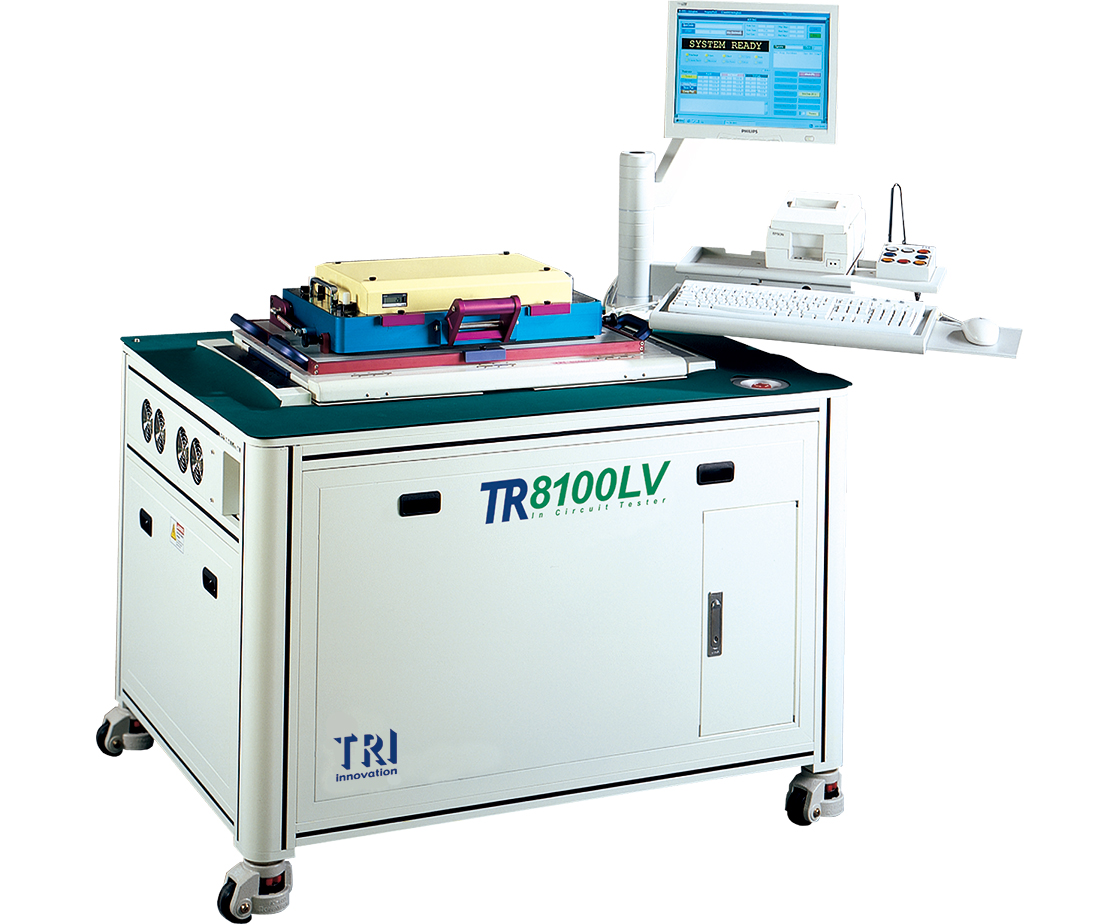

TR8100LV
 |
|
|
|
TR8100LV
|
|
|
INTRODUCTION
TR8100LV为德律科技最高阶之电测设备，专为大型且复杂的电路板且低电压测试所设计。TR8100LV的真空系统可确保全部针点良好接触性，非多工式驱动/接收式数位结构,可达3,584点，针对多针点之元件测试更快更简易且制作程序更快。TRI ToggleScan™与 VregTest™ 测试技术结合边界扫描提供少量或无测试点之解决方案。
• 1:1 驱动/接收数字结构
• 高测试覆盖率
• 低电压元件测试能力与超高检测速度
• 人性化界面包含快速与简单的程序设定
Tester Specifications
|
Analog/hybrid test points |
TR8100LV: 3584
TR8100LLV: 5632 |
|
Operating System |
Microsoft® Windows compatible PC, Windows 10 |
|
Fixture Type |
Offline press or vacuum type fixture |
Standard Testing Components
|
Analog Test Hardware |
-
6-wire measurement switching matrix
-
Programmable AC/DC/DC High voltage and current sources
-
AC/DC voltage, DC current measurement, frequency
-
Component R/L/C measurement
-
Synthesized Arbitrary Waveform Generator
-
TestJet vectorless open circuit detection
|
|
Digital Testing |
-
Non-multiplexing 1:1 per pin architecture with independent per-pin level setting
-
DUT power supplies: 5 V@5 A, 3.3 V@5 A, 12 V@5A, 0.2~20 V@3 A and -3~-20 V@3 A
-
On-board Flash, EEPROM, MAC programming
|
Optional Components
|
Analog Hardware |
Fixture Conversion Kits for Teradyne, GenRad |
|
Digital Testing |
-
Programmable DUT power supplies: 75 V / 8 A, 200W maximum output power
-
Includes BScan Chain Test, BScan Cluster Test, BScan Virtual Nails Test, BScan Virtual Chain Test and IEEE1149.6 Test
|
|
Yield Management System |
YMS 4.0 |
Dimensions
|
WxDxH |
TR8100LV: 1150 x 850 x 800 mm
TR8100LLV: 1550 x 850 x 800 mm |
|
Weight |
TR8100LV: 390 kg
TR8100LLV: 450 kg |
