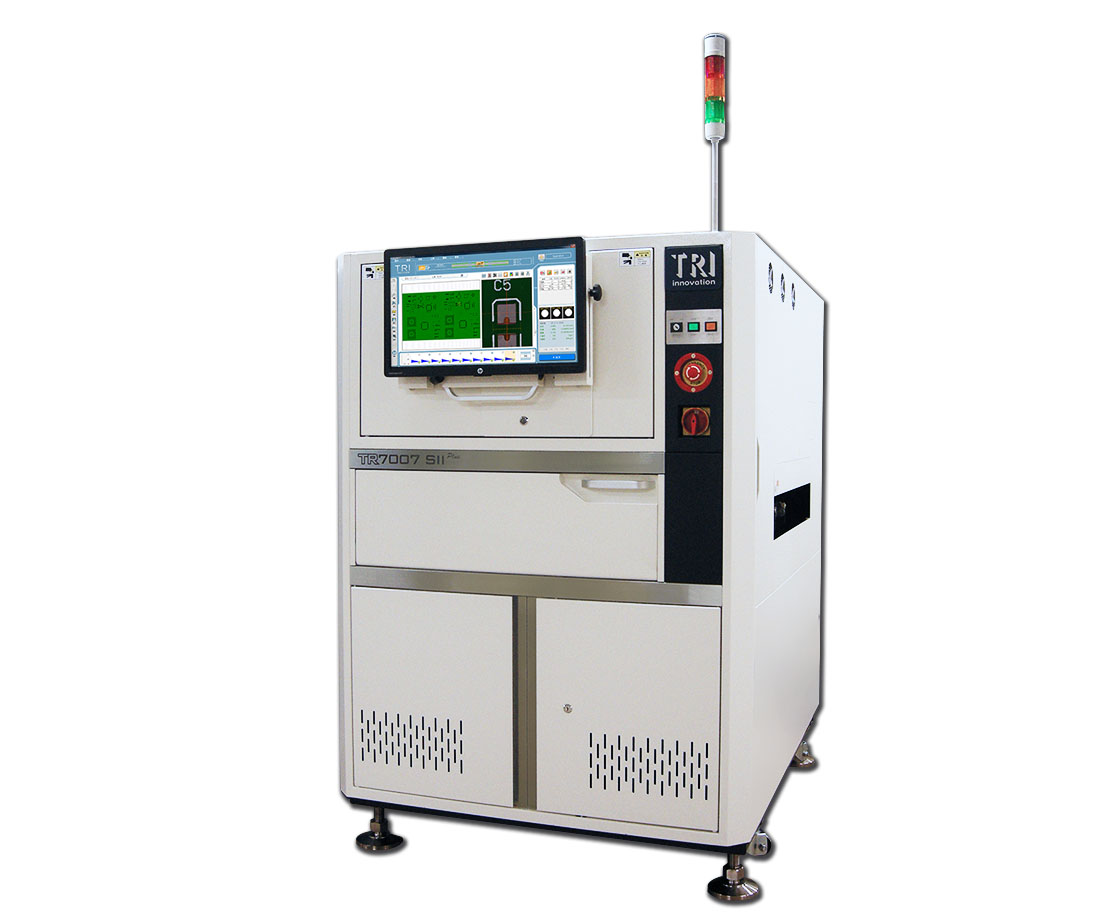

  • TR7007 SII Plus

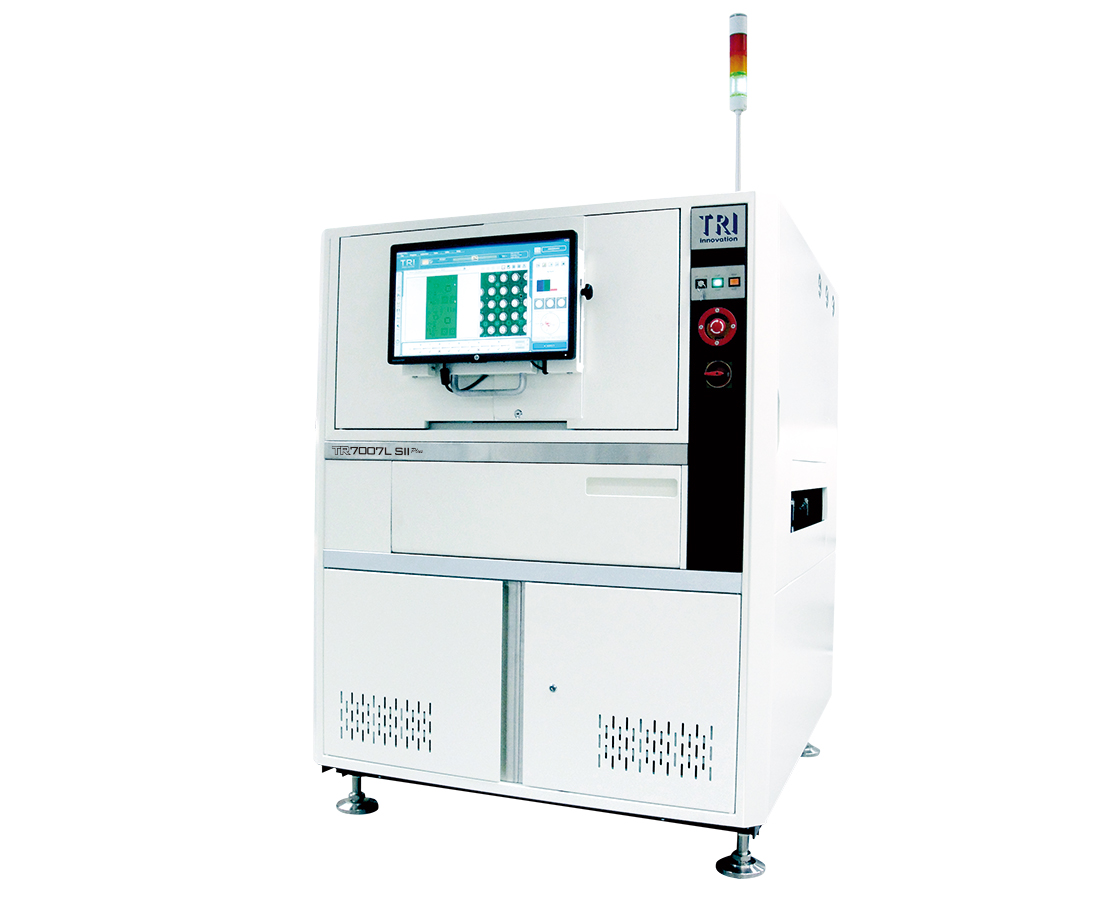

  • TR7007L SII Plus
  • TR7007 SII Plus DL
TR7007 SII Plus

INTRODUCTION

With industry leading speeds of up to 200 cm2/sec, the TR7007 SII Plus is the perfect SPI solution for any production line. This highly accurate inline shadow-free solder paste inspection solution offers full 3D inspection at resolutions of 15 µm or 10 µm. Built on a high precision, reliable linear motor platform, the system's hallmark features include closed loop function, enhanced 2D imaging, auto-warp compensation and fringe pattern technology. TRI's quick and intuitive user interface makes programming simple and easy, bringing maximum value to your production.

  • • Industry leading inspection speed up to 200 cm2/sec @ 15 µm
    • Shadow free Fringe Pattern lighting technology
    • Optical resolution 10 µm or 15 µm
    • Linear motor design for stable and accurate inspection
    • Advanced SPC functions for production quality monitoring and evaluation
