INTRODUCTION

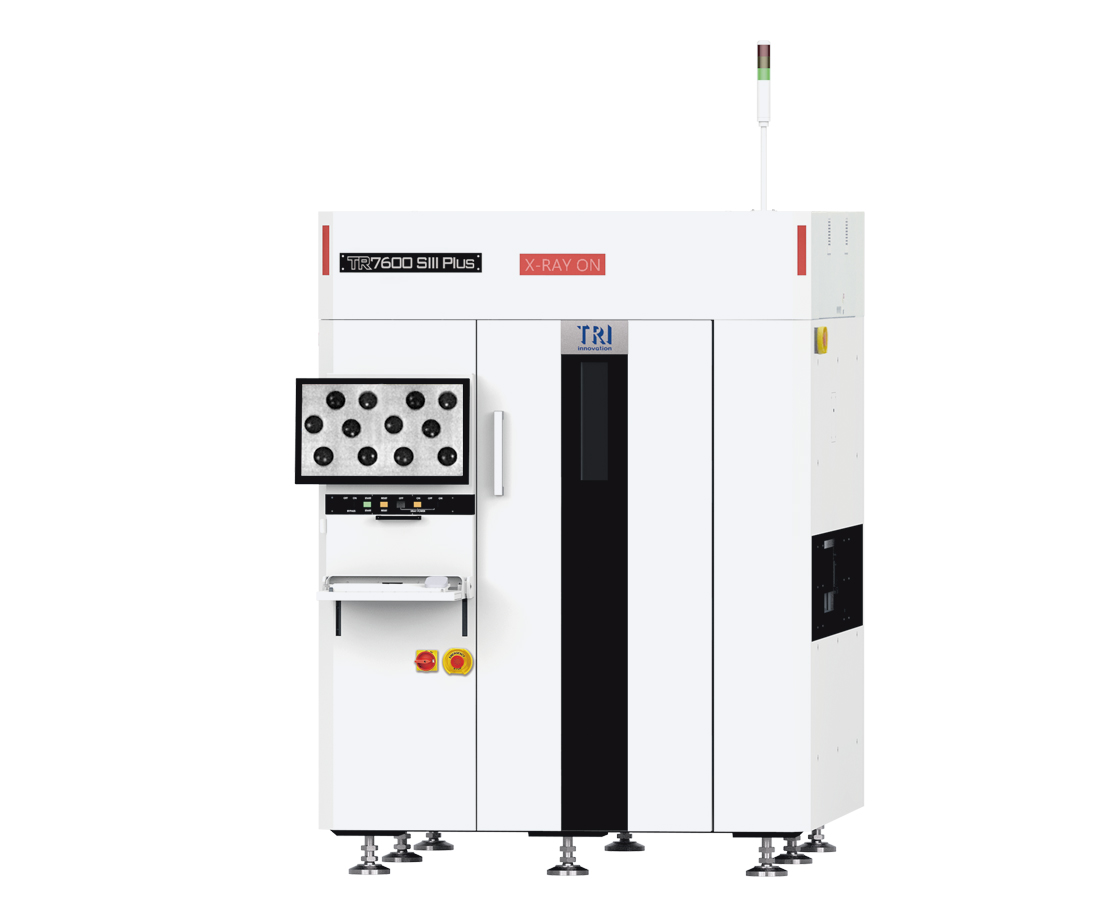

专为半导体、先进封装、汽车、航太及医疗等高可靠性产业设计的 TR7600 SIII Plus，是 TRI 的高产能 3D SEMI AXI 机种。该设备支援高达 800 x 350 mm、重达 12 kg 的大尺寸载板，并具备 2 µm - 20 µm 多重解析度检测能力，可确保快速且准确地检测 C4 凸块、系统级封装（SiP）与铜柱等元件；此外，在 AI 气泡检测与 AI 维修站等演算法的驱动下，更能进而大幅提升缺陷检测率。
• 高产能 3D SEMI AXI，专为满足 OSAT 的产能需求而优化
• AI 驱动检测演算法，可实现精确的缺陷检测
• C4 凸块（70 µm 至 140 µm）与铜柱检测能力
• 弹性多重解析度平台：2 – 20 µm 生产配置
• 线上微调，无需中断生产
• 可检测高达 800 x 350 mm、重达 12 kg 的大尺寸载板
• 支援智慧工厂，具备 MES 串接功能
• 应用领域：先进封装、汽车、航太、医疗
Imaging System
|
Camera |
Ultra-High Speed Line-Scan CCD Cameras |
|
X-ray Source |
60 - 110 kV |
|
Imaging Resolution |
2 μm - 20 μm |
|
Inspection Method |
2D, 2.5D, 3D Slicing, Planar CT (Optional) |
Motion Table & Control
|
X Axis Control |
High-precision ballscrew + AC-servo controller |
|
Y Axis Control |
High-precision ballscrew + AC-servo controller |
|
Z Axis Control |
High-precision ballscrew + AC-servo controller |
Board Handling
|
Max. PCB Size |
2 μm - 3 μm: 245 x 100 mm
7 μm - 20 μm: 800 x 350 mm |
|
PCB Thickness |
0.6 - 7 mm (Optional: 0.4 mm, Max. PCB Weight: 3 kg) |
|
Max. PCB Weight |
12 kg |
|
Top Clearance |
@ 20 μm: 50 mm
@ 15 μm: 45 mm
@ 10 μm: 29 mm
@ 7 μm: 19 mm
@ 3 μm: 5 mm
@ 2 μm: 3 mm
Note: Calibration is required for non-standard resolutions. |
|
Bottom Clearance |
70 mm |
|
Edge Clearance |
3 mm or 5 mm |
|
Conveyor |
880 – 920 mm. (Optional: 940 - 965 mm)
* SMEMA Compatible |
Inspection Functions
|
Capabilities |
BGAs
Backdrill
Barrel fill
Capacitors
Resistor
Chips
Components Under RF shields
WLCSP
DIMM Connectors
Flip-Chips
Ground Pads
Gullwing
Heat sinks
J-Leads
LED Chips
LGAs
Paladin Connector
RNET
SiP
SMT Connectors
SOIC
SOT
Thermal Pad
QFNs
QFP
THTs |
|
Defects |
Missing
Misalignment
Tombstone
Billboard
Tantalum Polarity
Rotation
Foreign Material
Insufficient/Excess Solder
Bridging
Open
Solder Ball
Non-Wetting
Void
Lifted Lead |
Dimensions
|
WxDxH |
1470 x 1971 x 1975 mm
Note: not including signal tower, height: 519 mm |
|
Weight |
3870 kg |
|
Power Requirement |
200 - 240 VAC single phase, 50/60 Hz, 4 kVA |
