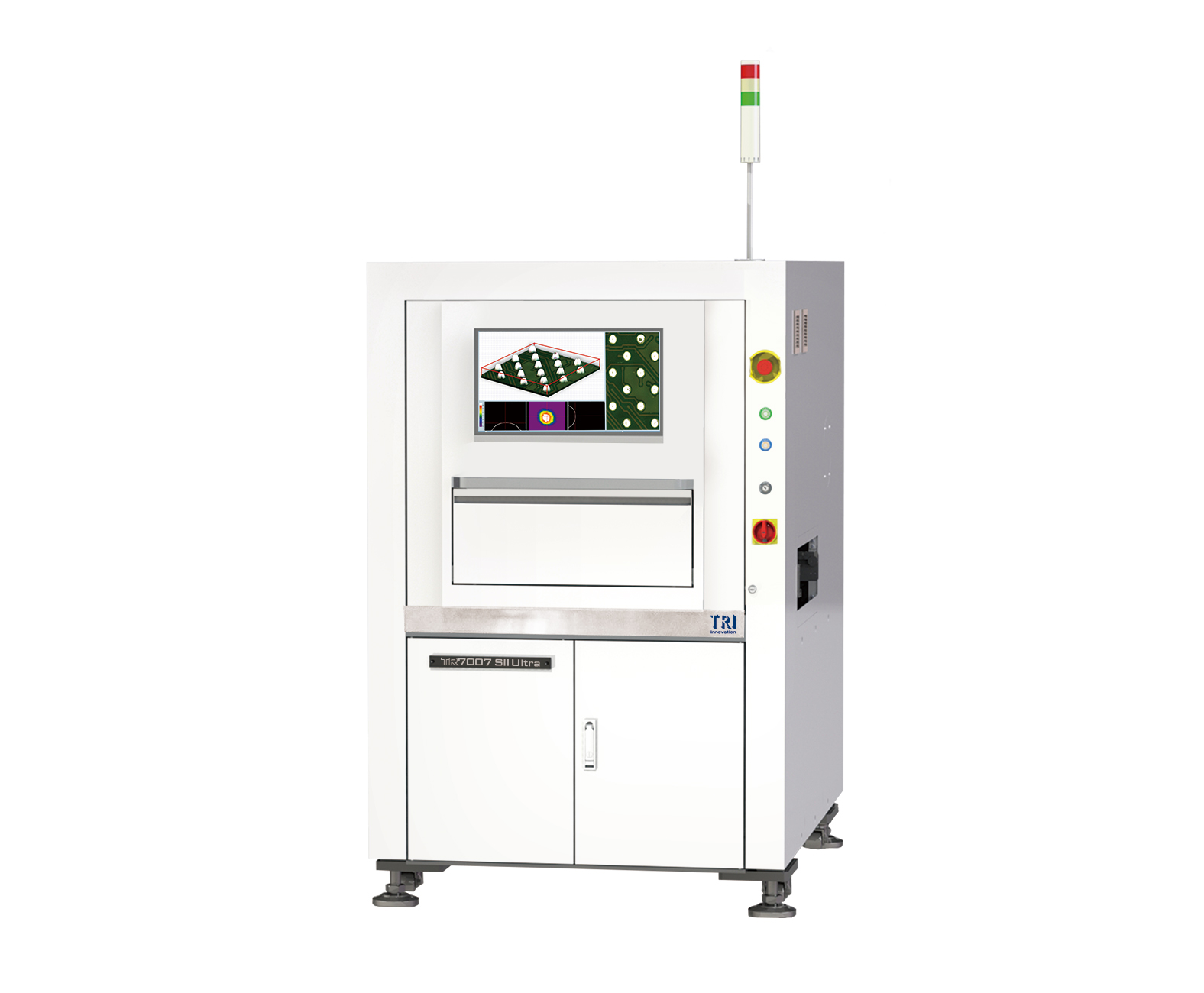

TR7007 SII Ultra

INTRODUCTION

TR7007 SII Ultra 是设计专用于 SEMI 后段制程锡膏检测的最新 6 μm 高解析度平台。此款 3D SEMI SPI 具备用于例如锡点间距锡膏量测的计量功能并配备宽光谱光源，可增强对比度并提高缺陷检测率。此外TR7007 SII Ultra 还是一款符合工业 4.0解决方案，可支援闭环反馈/前馈、IPC-CFX 和 IPC Hermes 9852 标准。

应用领域：凸块、助焊剂、胶水、锡膏、表面

• 高速 SEMI 后段制程检测，速度高达 74 cm²/sec
• 透过 TRI SPI 计量功能实现精确的锡膏量测
• 宽光谱光源，可增强对比度并提高缺陷检测率
• 透过 TRI 智能编程，可在数分钟内完成检测就绪
• 支援闭环控制反馈与前馈功能
• 即时 SPC 趋势智能工厂解决方案

Optical System

Imaging Method	Dynamic Scan
Top Camera	4 Mpix
Imaging Resolution	6 µm / 10 µm
Lighting	Wide Spectrum 2D Lights (RGB+W), Coaxial Lighting

Imaging Performance

Max. Imaging Speed

6 μm: 25 cm²/sec ; 10 μm: 74 cm²/sec

Motion Table & Control

X-Axis Control	Linear motor + Linear Scale + EtherCAT Servo
Y-Z Axis Resolution	AC motor with ball screw + EtherCAT Servo
X-Y Axis Resolution	0.5 µm
Z Axis Resolution	1 µm

Board Handling

Max. PCB Size	TR7007 SII Ultra: 510 x 460 mm TR7007 SII Ultra DL: 510 x 310 mm x 2 lanes, 510 x 590 mm x 1 lane
PCB Thickness	0.5-6 mm
Max. PCB Weight	3 kg
Top Clearance	25 mm
Bottom Clearance	40 mm
Edge Clearance	3 mm
Conveyor	Inline Height: 880 – 920 mm * SMEMA Compatible

Inspection Functions

Applications	Bare Board Bumps Flux Mini-LED Solder Solder Paste
Defects Detected	Insufficient Paste Excessive Paste Shape Deformity Missing Paste Bridging
Measurement	Height Area Volume Offset

Dimensions

WxDxH	TR7007 SII Ultra: 1100 x 1560 x 1710 mm TR7007 SII Ultra DL: 1100 x 1860 x 1710 mm Note: not including signal tower, signal tower height 395 mm
Weight	TR7007 SII Ultra: 740 kg TR7007 SII Ultra DL: 925 kg
