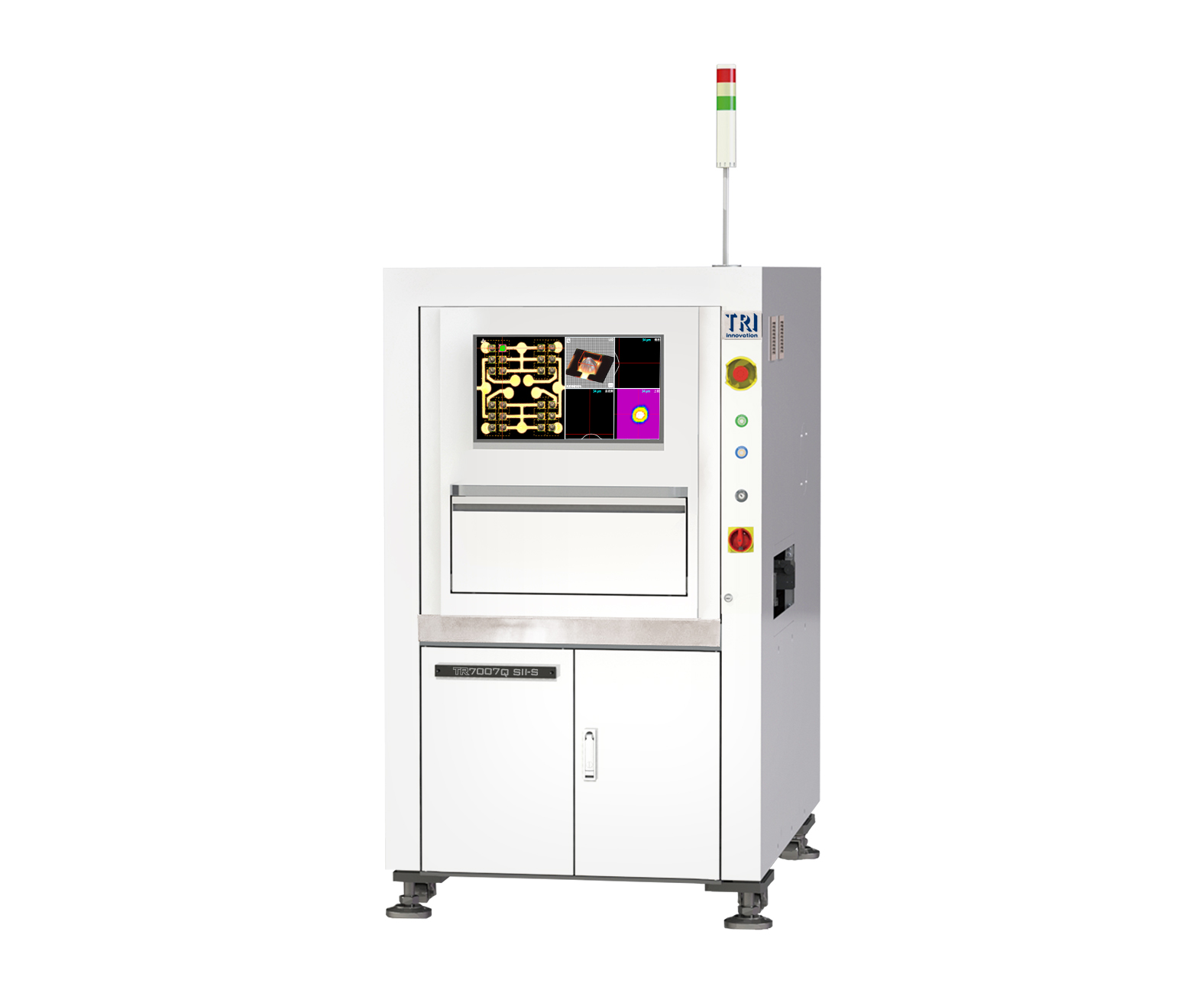

TR7007Q SII-S

INTRODUCTION

TR7007Q SII-S 建立于 3.5 μm 高解析度平台，采用 25 MP成像技术，专为 SEMI 后段制程、Mini-LED、C4 凸块（ ~ 100 μm Ø）和 008004 锡膏检测应用而设计。此系统具备更高的准确度与稳定性，可实现精确的锡膏量测并将误判率降至最低。TR7007Q SII-S 配备宽光谱光源系统与同轴照明，以提高多种业界应用的缺陷检测率。这款 3D SEMI SPI 支援现行的智慧工厂标准，包括 IPC-CFX 和 Hermes 标准（IPC-HERMES-9852）。

应用领域：凸块、助焊剂、胶水、Mini-LED 焊锡、锡膏、表面

• 3.5 μm High-Resolution 3D SEMI Back-end, Mini-LED and 008004 solder inspection
• Advanced Wide Spectrum Light for Enhanced Contrast and Detection Rate
• Improved Accuracy and Stability for Precise Solder Measurements
• High Precision Inspection for Multiple Applications
• Industry 4.0 Ready Platform
• Ensures clean operation with HEPA Filter*

*Optional

Optical System

Imaging Method	Stop-and-Go Imaging
Top Camera	25 Mpix
Imaging Resolution	3.5 µm / 6 µm
Lighting	Wide Spectrum 2D Lights (RGB+W), Coaxial Lighting

Imaging Performance

Max. Imaging Speed

2.1 FOV/sec

Motion Table & Control

X-Y-Z Axis Control	Ballscrew + AC Servo with Motion Controller
X-Y-Z Axis Resolution	0.1 µm

Board Handling

Max. PCB Size	TR7007Q SII-S: 450 x 450 mm TR7007Q SII-S DL: 510 x 310 mm x 2 lanes, 510 x 460 mm x 1 lane
PCB Thickness	0.6-5 mm
Max. PCB Weight	3 kg. Optional: 5 kg
Top Clearance	25 mm
Bottom Clearance	40 mm
Edge Clearance	3 mm. Optional: 4 mm / 5 mm
Conveyor	Inline Height: 880 – 920 mm * SMEMA Compatible

Inspection Functions

Applications	Bumps Flux Mini-LED Solder Solder Paste
Defects Detected	Insufficient Paste Excessive Paste Shape Deformity Missing Paste & Bridging
Measurement	Height Area Volume and Offset

Dimensions

WxDxH	TR7007Q SII-S: 1000 x 1480 x @15µm: 1710 mm, @3.5µm / 9.8 µm: 1650 mm TR7007Q SII-S DL: 1000 x 1750 x 1700 mm Note: not including signal tower, signal tower height 520 mm
Weight	TR7007Q SII-S: 795 kg TR7007Q SII-S DL: 840 kg
