半导体检测机 (SEMI)

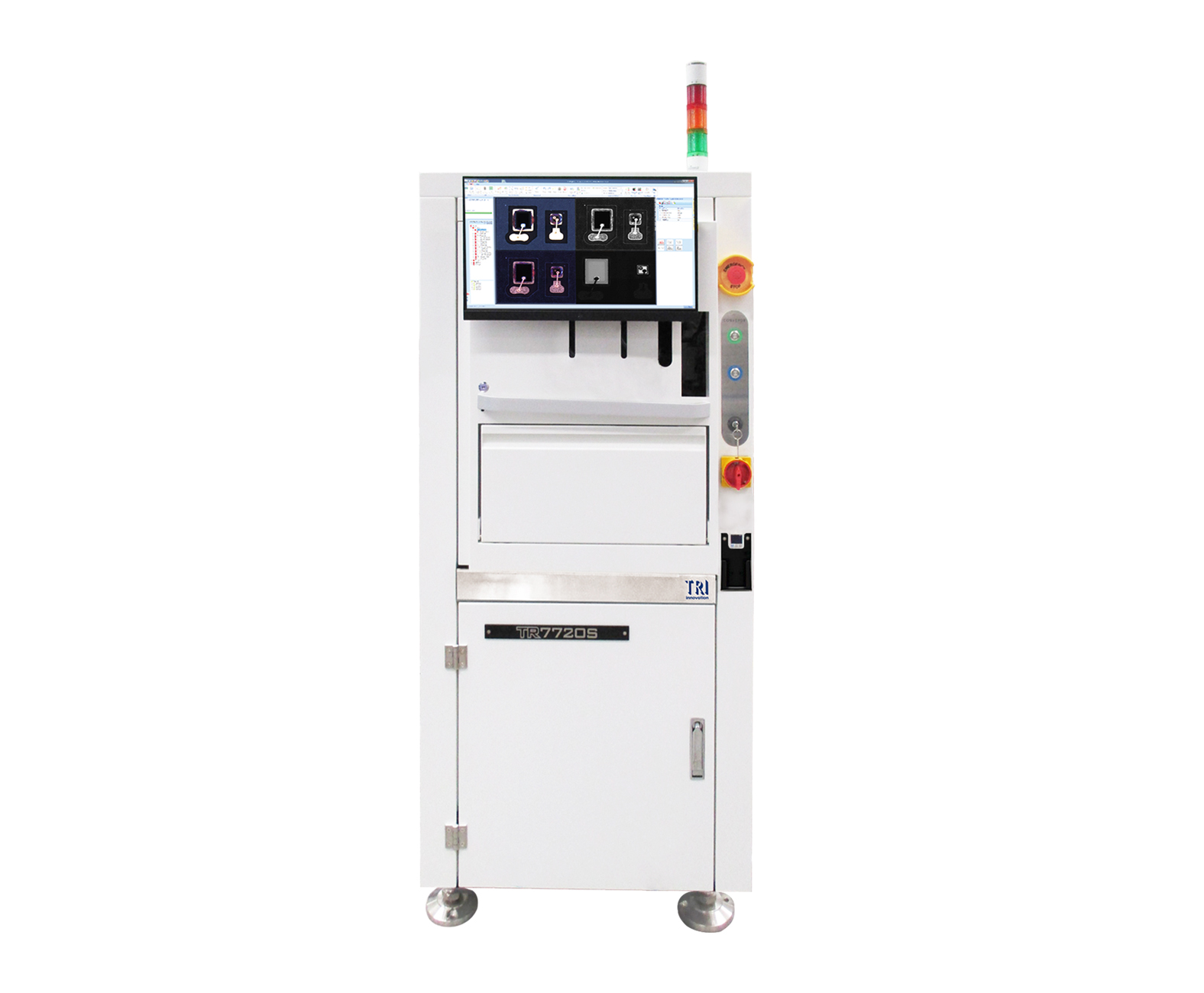

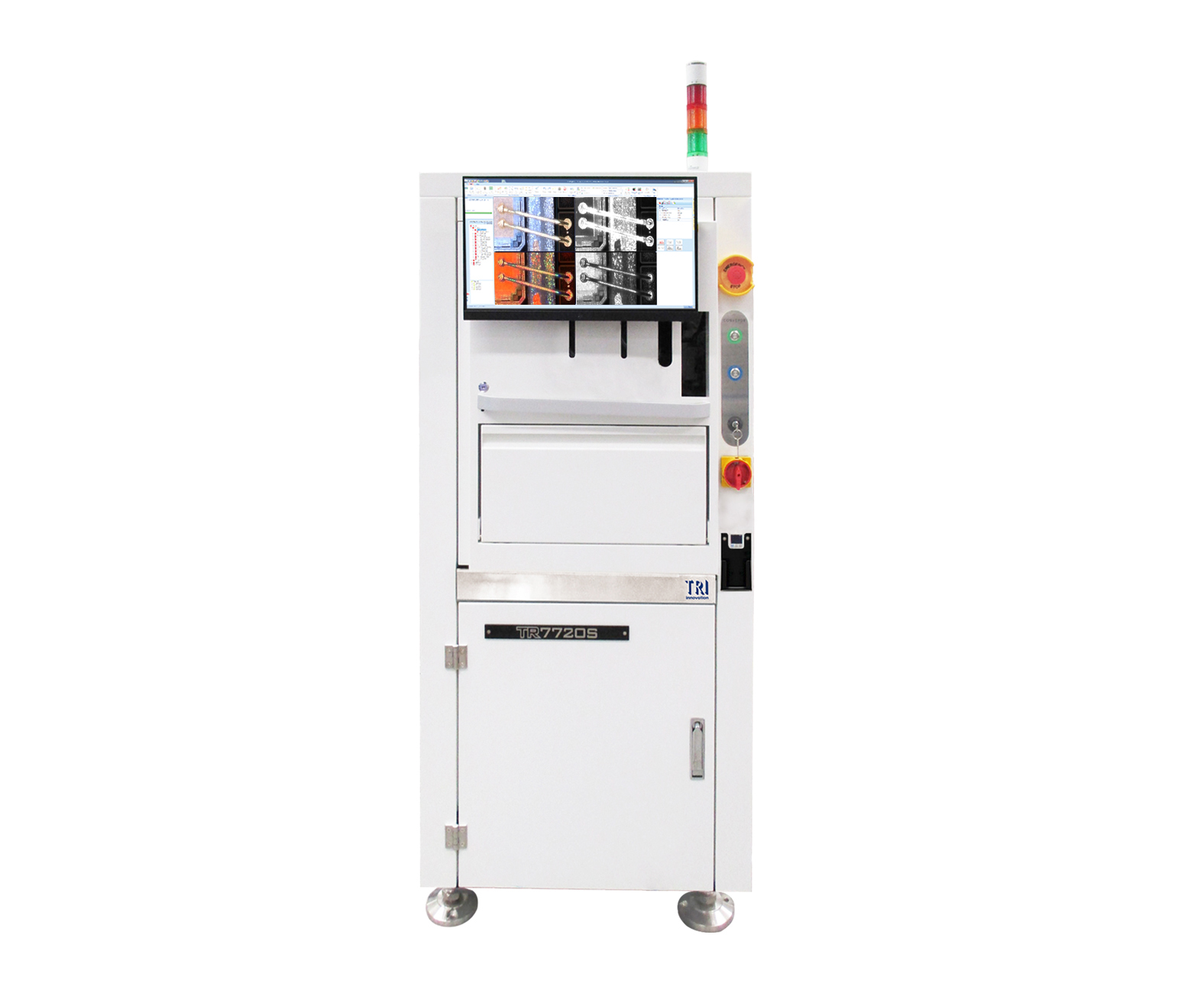

TR7720S

INTRODUCTION

TR7720S是一款专为半导体与封装行业设计的小型AI驱动 AOI，可用于检测打线接合、黏晶、SMD和锡点。5.5 μm高分辨率解决方案TR7720S拥有先进测量技术和强化的机械结构，可提供精确和准确的检测结果，能够检测高达50 μm（2mil）的线径。

• 打线接合与黏晶高级封装缺陷检测
• 5.5 μm 高分辨率小型 AOI
• 打线缺陷检测人工智能检测演算法*
• 提升数据可追溯性的量测等级*技术
• 可检测小至 50 μm 的金/铝/银/铜线
• 接合检测：球形接合、楔形接合、带状接合
• 智能工厂实时 SPC 趋势追踪

*选配项目

Optical System

Imaging Method	Stop-and-Go Imaging
Top Camera	12 Mpix
Imaging Resolution	5.5 µm
Lighting	Multi-phase True Color LED, Coaxial Lighting

Imaging Performance

Max. Imaging Speed

10.3 cm²/sec

Motion Table & Control

X-Y-Z Axis Control	Ballscrew + AC Servo with Motion Controller
X-Y-Z Axis Resolution	1 µm

Board Handling

Max. PCB Size	310 x 250 mm
PCB Thickness	0.1-5 mm
Max. PCB Weight	1 kg
Top Clearance	25 mm
Bottom Clearance	40 mm
Edge Clearance	3 mm
Conveyor	Inline Height: 880 – 920 mm * SMEMA Compatible

Inspection Functions

Die Bonding	Missing Orientation Shift Rotation Chipping Crack Scratch Foreign Material Epoxy on Die Epoxy Coverage
Molding / Underfill Materials (EMC, CUF, NCP, NCF, MUF)	Area coverage Shapes/Dimensions Surface Void Damage Crack Scratches Delamination Contamination Surface particles
Bonding Area/Pad	Copper Protrusion Crack Chipping Exposed Copper Exposed Nickel Target Material Scratches or Brush Marks Oxidation Foreign Material

Dimensions

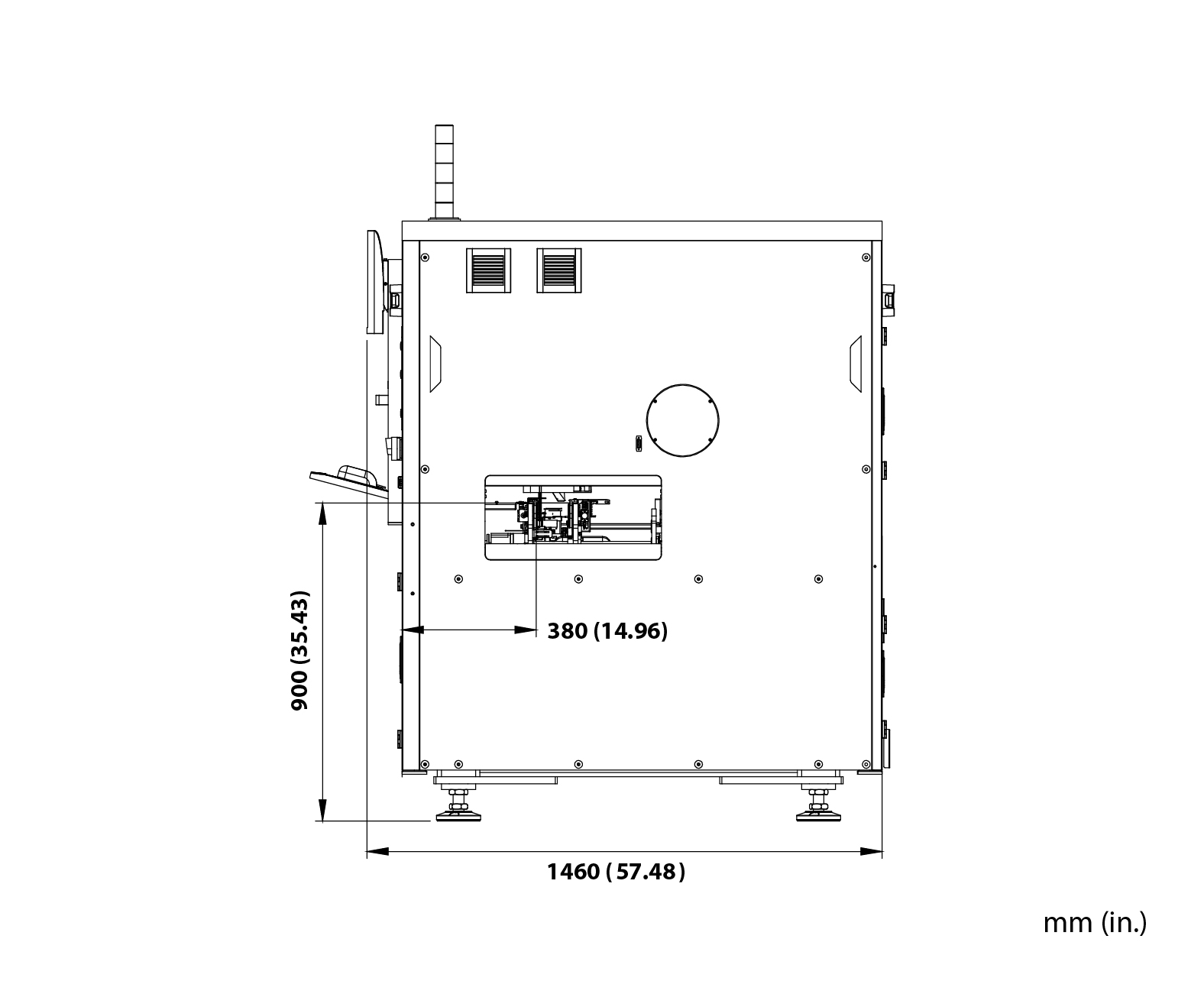

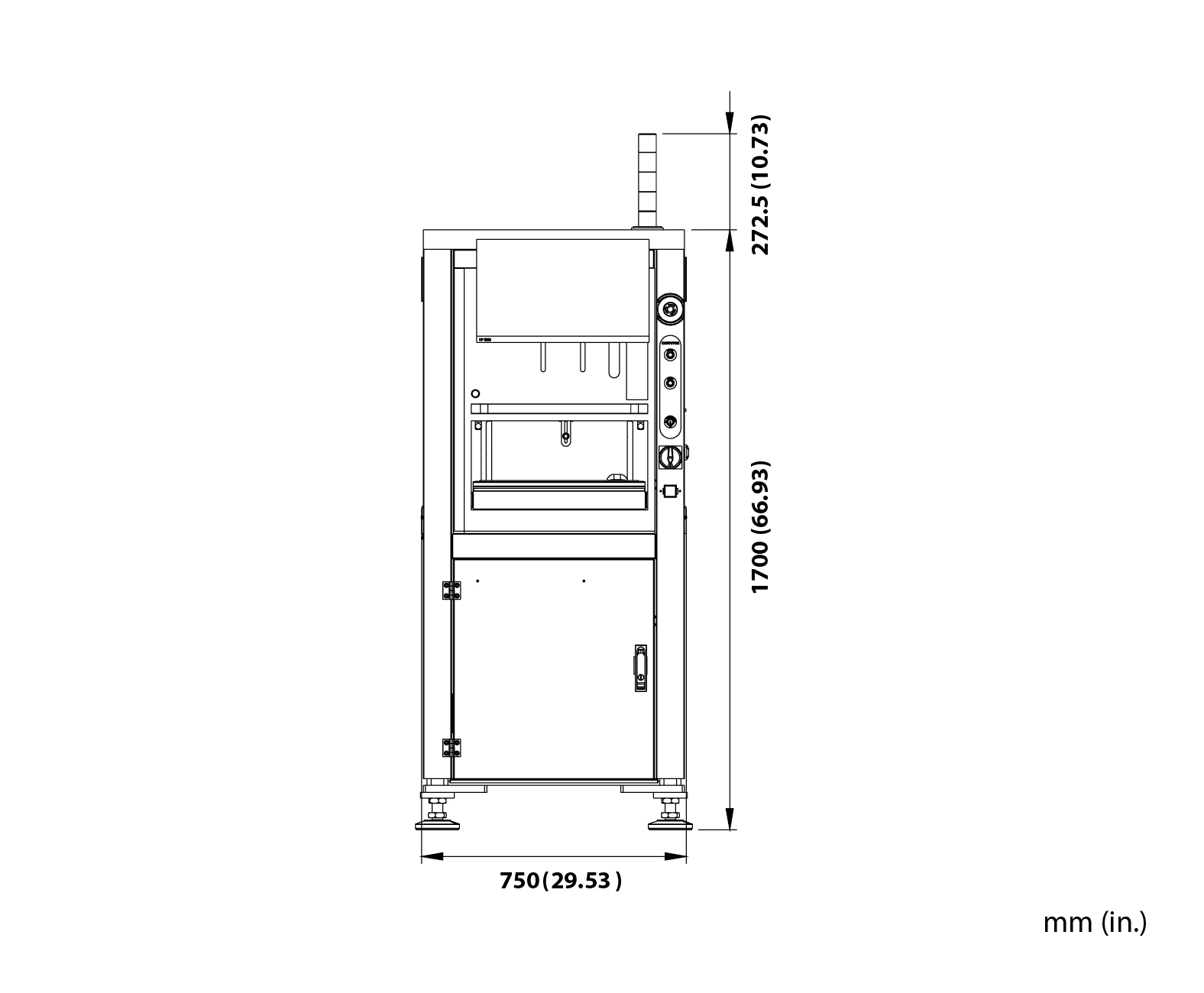

WxDxH	750 x 1460 x 1700 mm Note: not including signal tower, signal tower height 272.5 mm
Weight	710 kg
