INTRODUCTION

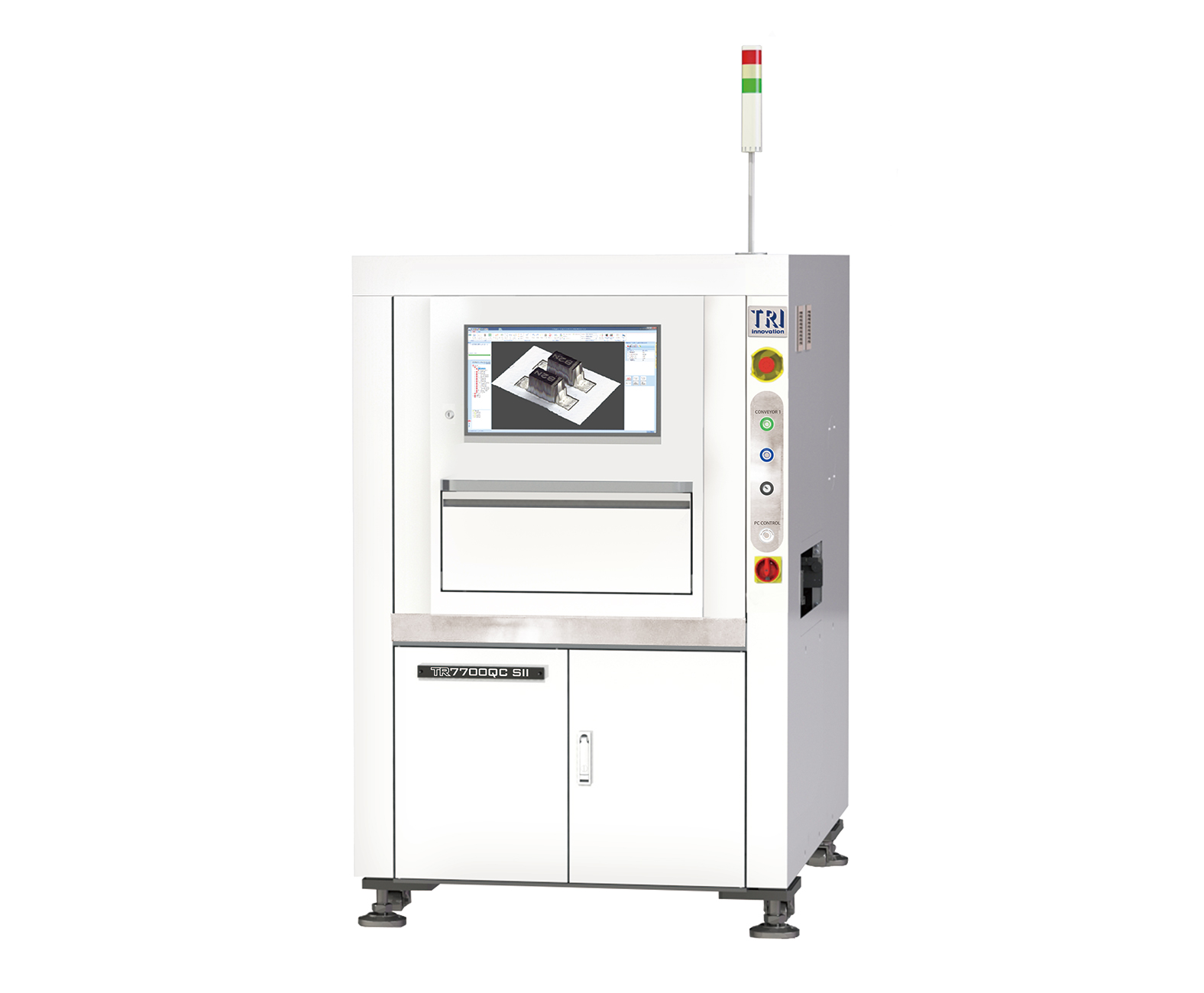

The TR7700QC SII 3D AOI is equipped with essential inspection functionalities for multiple electronics manufacturing industry applications. The 3D AOI features user-friendly programming for easy setup, flexible IPC-610 inspection algorithms, and compliance with the latest Smart Factory standards.
• 3D AOI with Essential Features for Components and Solder Joints Inspection
• User-Friendly Programming and IPC-610 Flexible Algorithms
• Industry-leading Inspection Speed of up to 57 cm2/sec
• Tall Component Inspection 3D Height Range up to 40 mm
• Smart Factory Ready Solution
Optical System
| Imaging Method |
|
| Camera |
|
| Imaging Resolution |
|
| Lighting |
|
| 3D Technology |
|
| Field of View |
|
Inspection Performance
| Imaging Speed |
|
| Height Resolution |
|
| Max. Solder Height |
|
Motion Table & Control
| X-Axis Control |
|
| Y-Axis Control |
|
| Z-Axis Control |
|
| X-Y Axis Resolution |
|
| Z-Axis Resolution |
|
Board Handling
| Max PCB Size |
|
| PCB Thickness |
|
| Max PCB Weight |
|
| Top Clearance |
|
| Bottom Clearance |
|
| Edge Clearance |
|
| Conveyor Height |
|
Optical System
| Imaging Method |
Stop-and-Go |
| Top Camera |
12 MP High Speed Camera |
| Angle Camera |
N/A |
| Imaging Resolution |
10 µm, 12 µm, 15 µm (factory setting) |
| Lighting |
Multi-phase True Color LED |
| 3D Technology |
Quad Digital Fringe Projectors |
| Max. 3D Range |
40 mm |
Inspection Performance
| Imaging Speed |
@ 10 μm: 25 cm²/sec
@ 12 μm: 37 cm²/sec
@ 15 μm: 57 cm²/sec |
Motion Table & Control
| X-Axis Control |
Ballscrew + AC Servo with Motion Controller |
| Y-Axis Control |
Ballscrew + AC Servo with Motion Controller |
| Z-Axis Control |
Ballscrew + AC Servo with Motion Controller |
| X-Y Axis Resolution |
1 μm |
Board Handling
| Max PCB Size |
TR7700QC SII: 510 x 460 mm
TR7700MQC SII: 660 x 690 mm
TR7700L QC SII: 765 x 610 mm
TR7700QC SII DL: 510 x 310 mm x 2 lanes, 510 x 590 mm x 1 lane |
| PCB Thickness |
0.6-5 mm |
| Max PCB Weight |
TR7700QC SII: 3 kg. Optional: 5kg
TR7700MQC SII: 3 kg. Optional: 5kg
TR7700L QC SII: 3 kg. Optional: 5 kg / 12 kg
TR7700QC SII DL: 3 kg. Optional: 5kg |
| Top Clearance |
50 mm |
| Bottom Clearance |
40 mm |
| Edge Clearance |
3 mm. Optional: 4 mm / 5 mm |
| Conveyor |
Inline Height: 880 – 920 mm
* Optional: 940-965 mm (SMEMA compatible) |
Inspection Functions
| Component |
Missing, Tombstoning, Billboarding, Polarity, Rotation, Shift, Wrong Marking (OCV), Defective, Upside Down, Extra Component, Foreign Material, Lifted Component |
| Solder |
Solder Fillet Height, Solder Volume %, Excess Solder, Insufficient Solder, Bridging, Through-hole Pins, Lifted Lead, Golden Finger Scratch/ Contamination |
Dimensions
| WxDxH |
TR7700QC SII: 1100 x 1720 x 1710 mm
TR7700MQC SII: 1250 x 1740 x 1710 mm
TR7700L QC SII: 1365 x 1720 x 1710 mm
TR7700QC SII DL: 1100 x 1820 x 1710 mm
Note: not including signal tower, signal tower height 515 mm |
| Weight |
TR7700QC SII: 910 kg
TR7700MQC SII: 992 kg
TR7700L QC SII: 1025 kg
TR7700QC SII DL: 960 kg |
