自动光学检测机 (AOI)

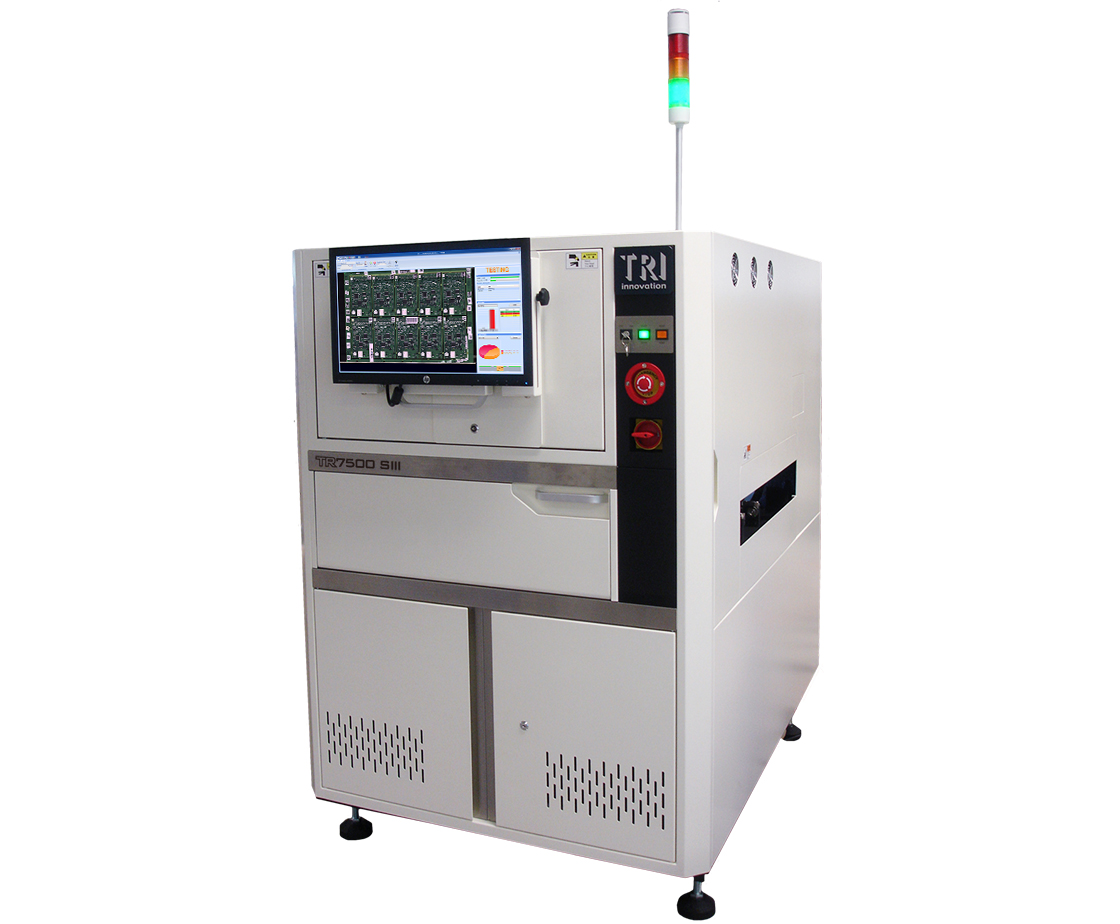

TR7500 SIII


TR7500 SIII

INTRODUCTION

TRI顶尖的在线型AOI解决方案，提供超高速五支相机镜头的组装电路板检测，具有可靠的缺陷检测功能，即使是最复杂的焊点以及组装缺陷皆能检出。TR7500 SIII搭载智能化软件和高性能硬体的强大组合，提供可靠且易于使用的AOI解决方案，更致力于集中在高精度的检测结果并将誤判降到最低，以帮助优化您的生产产量。

• 高精度五支镜头的多相AOI
• 智能编程的GUI与离线编辑功能
• 智能化自动输送带系统可减少进出板时间
• 检测可靠，高精度，低误判

Optical System

Imaging Method
Camera
Imaging Resolution
Lighting
3D Technology
Field of View

Inspection Performance

Imaging Speed
Height Resolution
Max. Solder Height

Motion Table & Control

X-Axis Control
Y-Axis Control
Z-Axis Control
X-Y Axis Resolution
Z-Axis Resolution

Board Handling

Max PCB Size
PCB Thickness
Max PCB Weight
Top Clearance
Bottom Clearance
Edge Clearance
Conveyor Height

Inspection Functions

Defects
Measurement

Dimensions

WxDxH
Weight

Optical System

Imaging Method	Dynamic Imaging
Top Camera	4 Mpix
Angle Camera	1.3 Mpix or 6.5 Mpix (factory setting)
Imaging Resolution	10 µm, 15 µm (factory setting)
Lighting	Multi-phase RGB+W LED
3D Technology	Single/Dual 3D laser sensors
Max. 3D Range	20 mm (with 3D Laser Sensor upgrade optional)

Inspection Performance

Imaging Speed

4 Mpix@ 10 µm 2D: 60 cm²/sec
4 Mpix@ 15 µm 2D: 120 cm²/sec

Motion Table & Control

X-Axis Control	Ballscrew + AC-servo controller
Y-Axis Control	Ballscrew + AC-servo controller
Z-Axis Control	N/A
X-Y Axis Resolution	1 µm

Board Handling

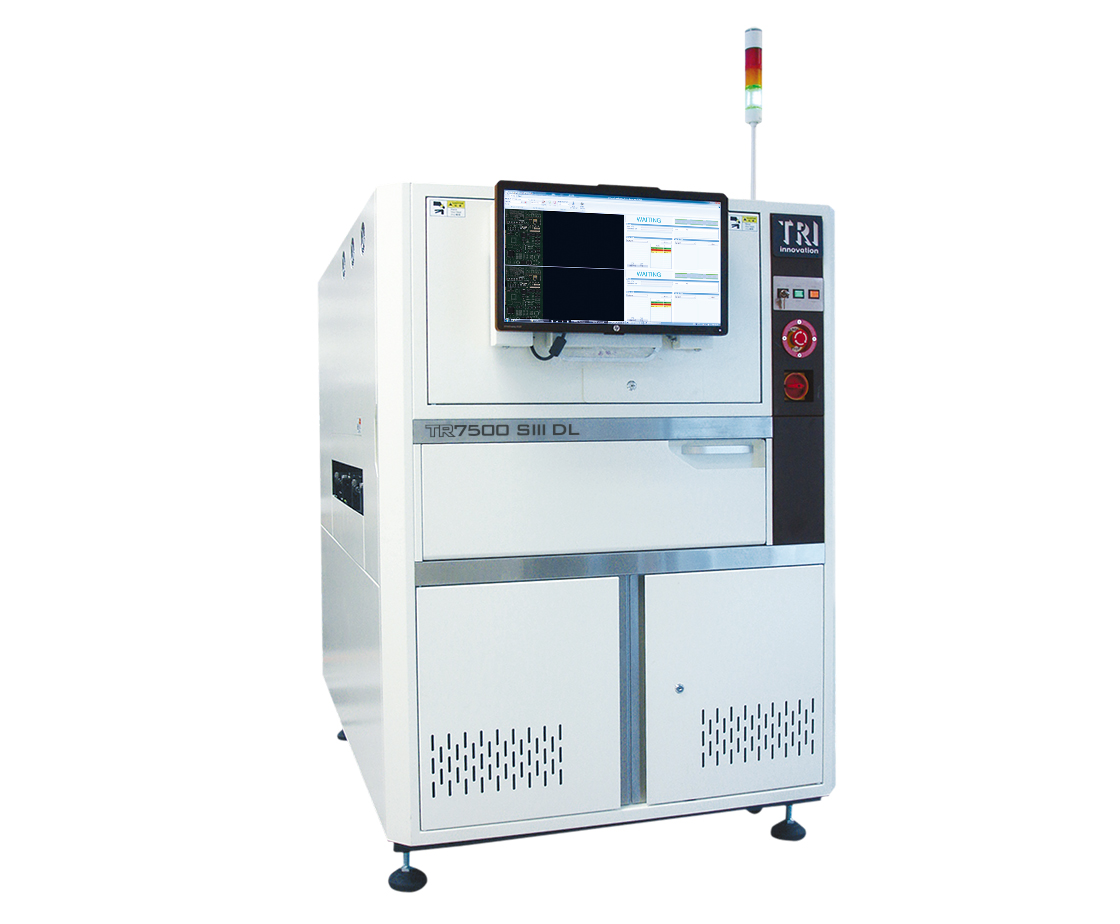

Max PCB Size	TR7500 SIII: 510 x 460 mm TR7500L SIII: 660 x 610 mm TR7500 SIII DL: 510 x 310 mm x 2 lanes, 510 x 590 mm x 1 lane
PCB Thickness	0.6-5 mm
Max PCB Weight	3 kg
Top Clearance	25 mm [48 mm optional]
Bottom Clearance	40 mm
Edge Clearance	3 mm [5 mm optional]
Conveyor	Inline Height: 880 – 920 mm * SMEMA Compatible

Inspection Functions

Component	Missing Tombstoning Billboarding Polarity Rotation Shift Wrong Marking (OCV) Defective Upside Down Extra Component Foreign Material Lifted Component
Solder	Excess Solder Insufficient Solder Bridging Through-hole Pins Lifted Lead Golden Finger Scratch/Contamination

Dimensions

WxDxH	TR7500 SIII: 1100 x 1670 x 1550 mm TR7500L SIII: 1300 x 1630 x 1655 mm TR7500 SIII DL: 1100 x 1770 x 1550 mm Note: not including signal tower, signal tower height 520 mm
Weight	TR7500 SIII: 1030 kg TR7500L SIII: 1255 kg TR7500 SIII DL: 1150 kg
