INTRODUCTION

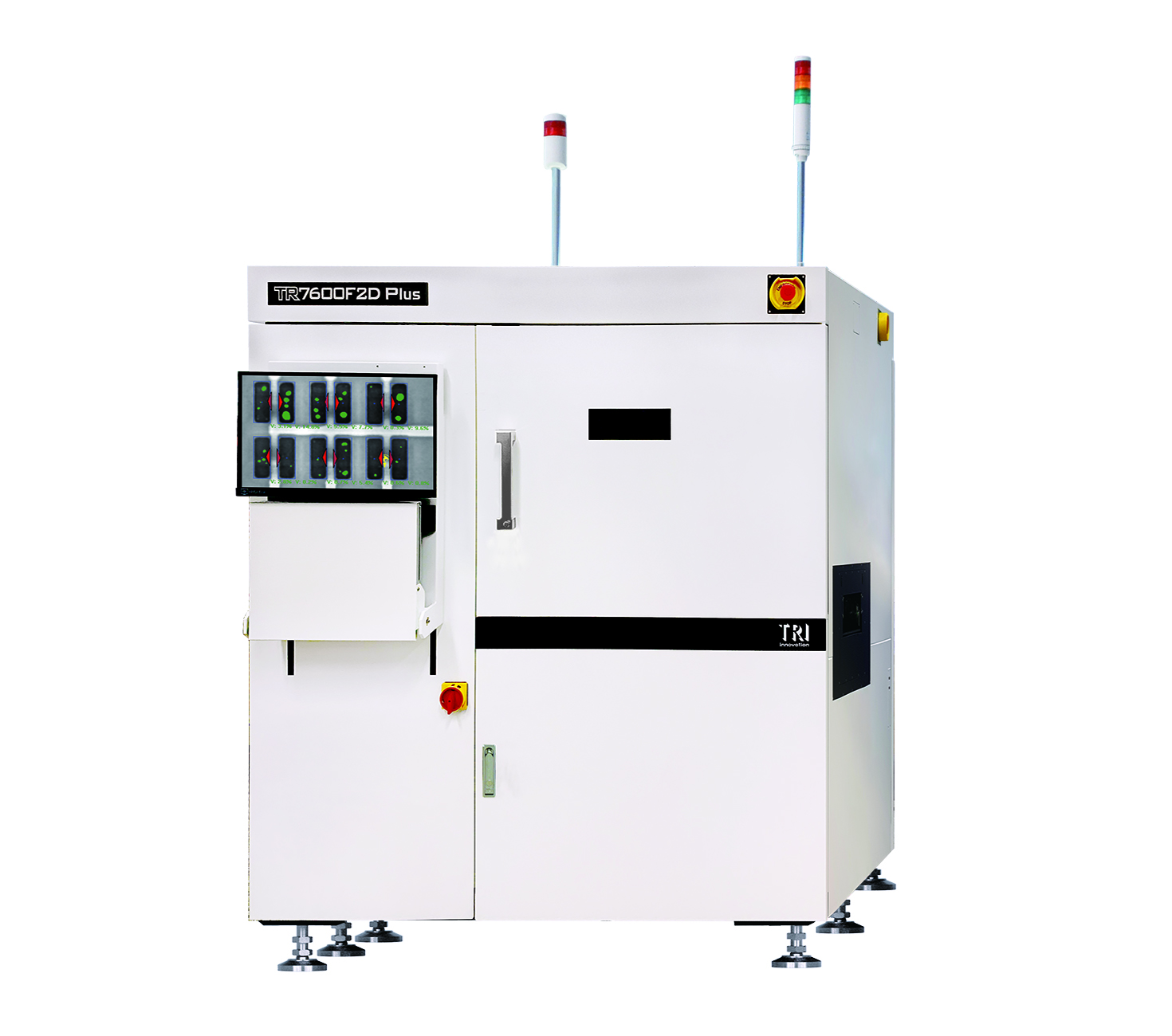

2.5D 在线型 AXI TR7600F2D Plus 采用全新的机械平台以实现更快的周期时间（Cycle Time），效能较前代机型提升了 10%。凭借 5 µm 的高解析度，TR7600F2D Plus 提供了全面的检测覆盖率，非常适合消费性电子产业（例如行动电子制造）的检测需求。
TR7600F2D Plus 能够可靠地检测 BGA、电容器、晶片、WLCSP、DIMM 连接器、Flip-Chips、Ground Pads、Gullwing、散热片、J-Leads、LED 晶片、LGA、Paladin 连接器、电阻、RNET、封装体系（SiP）、SMT 连接器、SOIC、SOT、导热片、QFN、QFP 以及THT中的缺陷。
• Next Generation Mechanical Design for Faster Cycle Time
• Flexible Multi-Resolution, Multi-Power in one Configuration
• New motion controller, for real-time measurements and ease of maintenance
• Improved 2D Camera for easier adjustments and less calibration
• Large Board Inspection, up to 900 mm x 520 mm
• Smart Factory Ready with MES Connectivity
Optical System
| Imaging Method |
|
| Camera |
|
| Imaging Resolution |
|
| Lighting |
|
| 3D Technology |
|
| Field of View |
|
Inspection Performance
| Imaging Speed |
|
| Height Resolution |
|
| Max. Solder Height |
|
Motion Table & Control
| X-Axis Control |
|
| Y-Axis Control |
|
| Z-Axis Control |
|
| X-Y Axis Resolution |
|
| Z-Axis Resolution |
|
Board Handling
| Max PCB Size |
|
| PCB Thickness |
|
| Max PCB Weight |
|
| Top Clearance |
|
| Bottom Clearance |
|
| Edge Clearance |
|
| Conveyor Height |
|
Optical System
| Imaging Method |
|
| Top Camera |
|
| Angle Camera |
|
| Imaging Resolution |
|
| Lighting |
|
| 3D Technology |
|
| Max. 3D Range |
|
Motion Table & Control
| X-Axis Control |
|
| Y-Axis Control |
|
| Z-Axis Control |
|
| X-Y Axis Resolution |
|
Board Handling
| Max PCB Size |
|
| PCB Thickness |
|
| Max PCB Weight |
|
| Top Clearance |
|
| Bottom Clearance |
|
| Edge Clearance |
|
| Conveyor |
|
Imaging System
| Camera |
Flat Panel Detector |
| X-ray Source |
60 -130 kV |
| Imaging Resolution |
5 μm - 30 μm |
| Inspection Method |
2D, 2.5D |
Motion Table & Control
| X-Axis Control |
High-precision ballscrew + AC-servo controller |
| Y-Axis Control |
High-precision ballscrew + AC-servo controller |
| Z-Axis Control |
High-precision ballscrew + AC-servo controller |
| X-Y Axis Resolution |
N/A |
Board Handling
| Max PCB Size |
900 x 520 mm |
| PCB Thickness |
0.5 - 7 mm |
| Max PCB Weight |
12 kg |
| Top Clearance |
@ 15/20/25/30 μm: 50 mm
@ 10 μm: 30 mm
@ 5 μm: 10 mm
|
| Bottom Clearance |
50 mm |
| Edge Clearance |
3 mm or 5 mm |
| Conveyor Height |
880 - 920 mm
* SMEMA Compatible
|
Inspection Functions
| Capabilities |
BGAs
Capacitors
Chips
WLCSP
DIMM Connectors
Flip-Chips
Ground Pads
Gullwing
Heat sinks
J-Leads
LED Chips
LGAs
Paladin Connector
Resistor
RNET
SiP
SMT Connectors
SOIC
SOT
Thermal Pad
QFNs
QFP
THTs |
| Defects |
Missing
Misalignment
Tombstone
Billboard
Tantalum Polarity
Rotation
Insufficient/Excess Solder
Bridging
Open
Solder Ball
Void |
Dimensions
| WxDxH |
1537 x 2160 x 1800 mm
Note: not including signal tower, height: 519.5 mm
|
| Weight |
3150 kg |
| Power Requirement |
200 – 240 VAC, single phase, 50/60 Hz, 4 kVA |
|
