TR8100 SII INLINE
 |
|
|
|

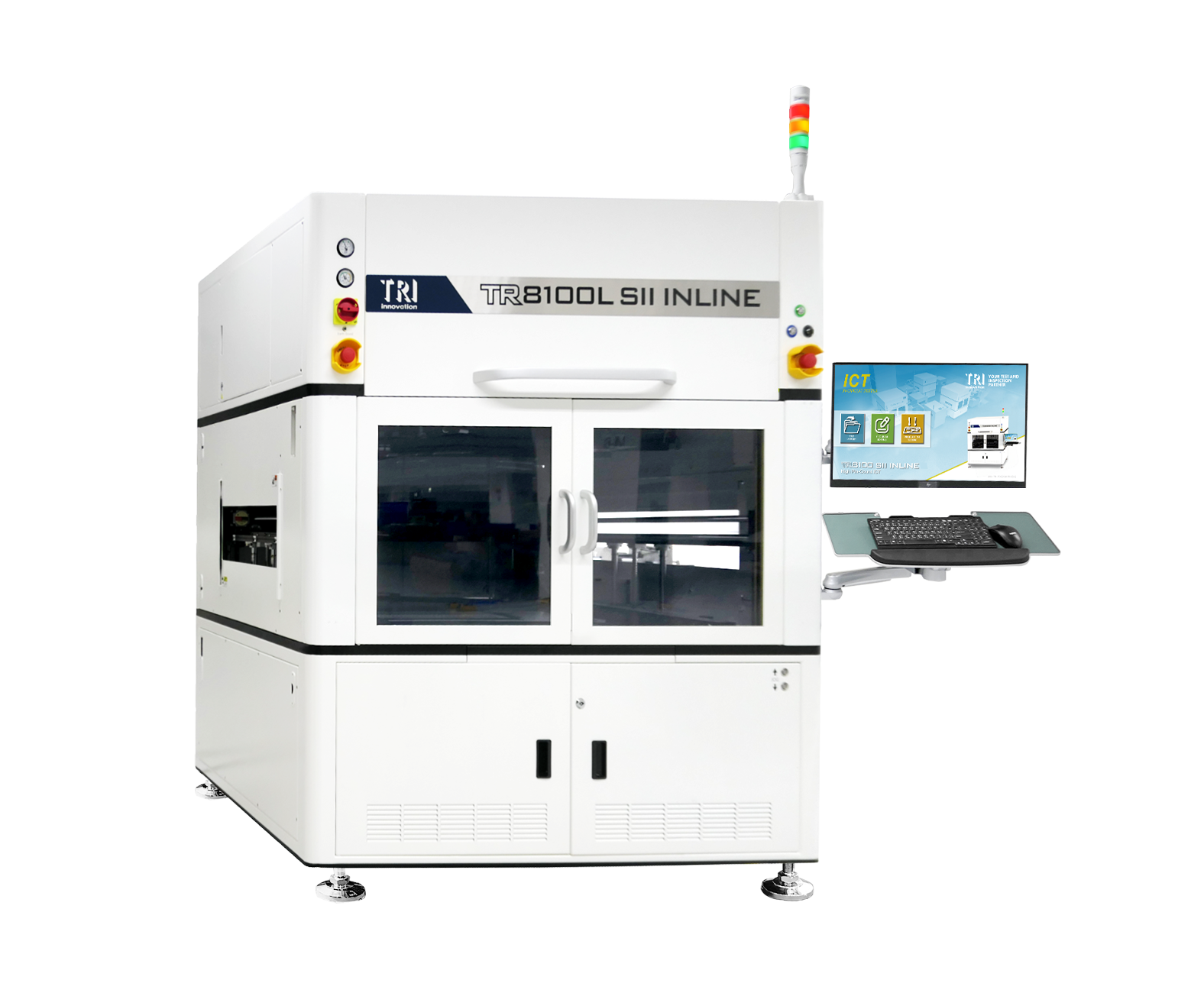

TR8100L SII INLINE
|
|
|
INTRODUCTION
TRI TR8100 SII INLINE 是一款高针点数在线型测试机 (ICT) 与功能测试机 (FCT)，专为满足先进 AI 伺服器板日益增长的需求，以及电信电子制造业不断演进的需要而设计。TR8100 SII 的真空治具系统可确保探针完整接触，其高达 7,056 针点的数位无多工器 (MUX-free) 架构，让大针点数元件的测试变得更快速、更简单，并能加快程式开发速度。此在线型测试机 (ICT) 内建自我诊断功能，以确保长期的测试可靠性。TR8100 SII 广泛的测试覆盖率能减少生产缺陷并降低重工费用，还能无缝整合至现有的制造生态系统中，全面相容旧款的 TRI 模组、治具与测试程式，确保顺畅导入而无需耗费高昂的更换或重新编程成本。
• High-pin-count ICT + FCT solution with up to 7,056 test points.
• High fault coverage and advanced test capabilities.
• Non-multiplexing 1:1 independent per-pin architecture
• Low voltage device testing and rapid test speed
• Accommodates various board sizes and testing requirements, supporting multiple industry standards, including AI servers, 5G, and AIoT boards.
• Vacuum fixture ensures rapid and precise board handling.
• Ergonomic and Operator Friendly Design for Easy Fixture Debugging.
• Built-in Self Diagnostics and Auto-Calibration by DMM
• Intuitive UI with flow-based easy program development
Tester Specifications
|
Max. Test Points |
TR8100L SII INLINE: 3,584 Points. Optional: 7,056 Points
|
|
Operating System |
Microsoft® Windows 11 |
|
Fixture Type |
Vacuum type |
|
Max. PCB Size |
TR8100L SII INLINE: 50 x 90 – 920 x 610 mm |
|
Max. PCB Weight |
8 kg. Optional: 15 kg |
|
Max. Component Height Clearance |
Top: 90 mm / Bottom: 30 mm / Edge: 3 mm. Optional: 5 mm
|
|
Conveyor Height |
900 – 970 mm |
Standard Testing Components
|
Analog Test Hardware |
-
6-wire measurement switching matrix
-
Programmable AC/DC/DC High voltage and current sources
-
AC/DC voltage, DC current measurement, frequency
-
Component R/L/C measurement
-
Synthesized Arbitrary Waveform Generator
-
TestJet vectorless open circuit detection
|
|
Digital Testing |
-
Non-multiplexing 1:1 per pin architecture with independent per-pin level setting
-
DUT Power Supplies:
(1) Fixed: +5V@5A, +3.3V@5A, +12V@5A, +12V@1A
(2) Programmable: +0.2V~+20V@3A (2sets), -3V~-20V@3A (2 sets)
-
On-board Flash and EEPROM Memories.
|
Industry 4.0
|
Communication Standard |
SMEMA, SECS/GEM, IPC-CFX-2591, IPC-HERMES-9852 |
|
Yield Management System |
YMS 4.0 (Optional) |
Optional Components
|
Analog Hardware |
Fixture Conversion Kits for Teradyne, GenRad |
|
Digital Testing |
-
APPS Power Supplies: Programmable 75 V/8 A/200 W Max., 1 Channel
-
Includes BScan Chain Test, BScan Cluster Test, BScan Virtual Nails Test, BScan Virtual Chain Test and IEEE1149.6 Test
-
Serial Test Controller (STC) Programming
-
DPS Programmable DUT Power supply:
(1) DPS3514: 30Vmax/5Amax/100Wmax per channel /4CH per DPS
(2) DPS3122: 30Vmax/10Amax/200Wmax per channel /2CH per DPS
(3) SPS5450 : 54Vmax/50Amax/2400Wmax per channel/1CH per rack
-
ToggleScan Test
-
VregTestTM: Multi-Phase PWM Individual Phase Frequency & Duty P/N Measurements
|
System Requirement
|
Power Requirement |
200 – 240 VAC, Single Phase, 50/60 Hz, 6 kVA.
|
|
Power Feature |
Power Line Earth Ground Auto Detection. Power 50/60 Hz Auto Detection. |
|
Air Requirement |
Dry Air 4 – 8 kg/cm2 |
|
Vacuum Requirement |
Min. -0.86 bar (-12.6 psi), Exhaust: 70 m3/h |
Dimensions
|
WxDxH |
TR8100L SII INLINE: 1550 x 1450 x 1870 mm |
|
Weight |
TR8100L SII INLINE: 1200 kg |
