INTRODUCTION

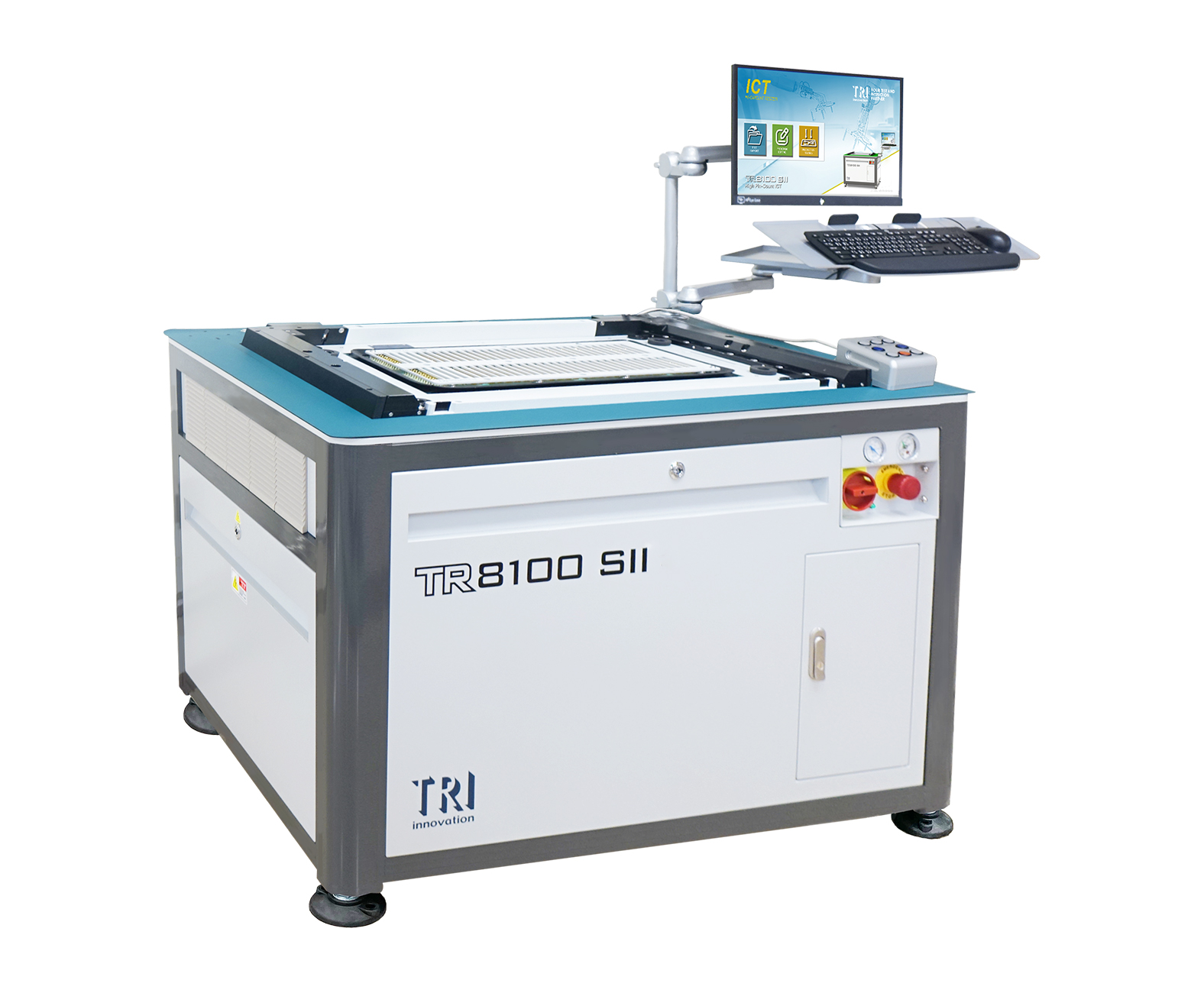

The TR8100 SII is the latest ICT with High Throughput and High Accuracy for large and complex PCBAs. The TR8100 SII is the top-of-the-line board test system targeting the low-voltage testing market. TR8100 SII's vacuum fixture system ensures full pin contact, and with up to 11,088 pins digital MUX-free architecture, the system allows for faster and simpler testing of large pin-count devices and fast program development. The ICT has built-in self-diagnostics to ensure long-term testing reliability.
• High fault coverage test solution with vacuum fixture
• Low voltage device testing and rapid test speed
• Built-in Self Diagnostics function
• High-Accuracy Measurement and Testing
• Friendly UI, easy program development
• Auto-calibration by DMM
Tester Specifications
|
Max. Test Points |
TR8100 SII: 3584. Optional: 7056

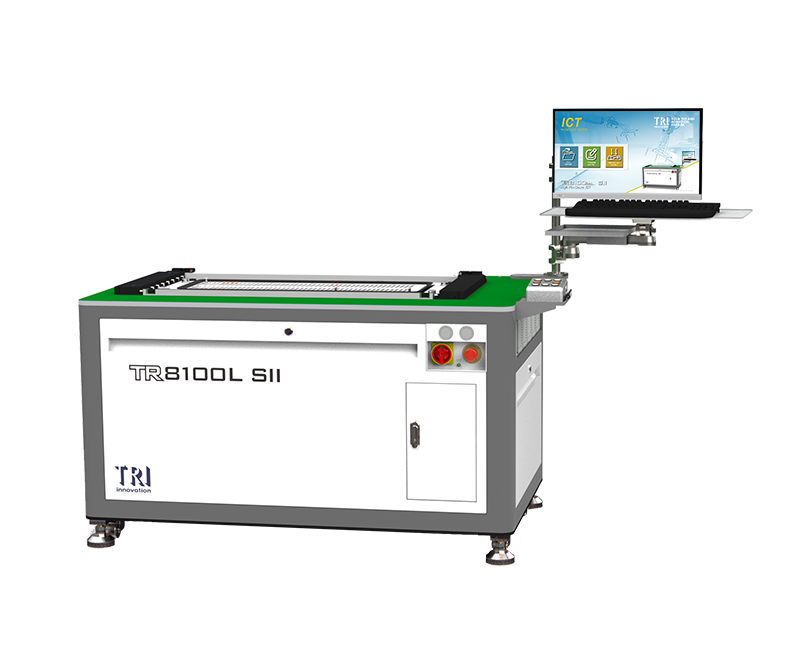

TR8100L SII: 11088
|
|
Operating System |
Microsoft® Windows 11 |
|
Fixture Type |
Vacuum type |
|
Max. PCB Size |
TR8100 SII: 790 x 640 mm
TR8100L SII: 990 x 640 mm
|
Standard Testing Components
|
Analog Test Hardware |
-
6-wire measurement switching matrix
-
Programmable AC/DC/DC High voltage and current sources
-
AC/DC voltage, DC current measurement, frequency
-
Component R/L/C measurement
-
Synthesized Arbitrary Waveform Generator
-
TestJet vectorless open circuit detection
|
|
Digital Testing |
-
Non-multiplexing 1:1 per pin architecture with independent per-pin level setting
-
DUT Power Supplies:
(1) Fixed: +5V@5A, +3.3V@5A, +12V@5A, +12V@1A
(2) Programmable: +0.2V~+20V@3A (2sets), -3V~-20V@3A (2 sets)
-
On-board Flash and EEPROM Memories.
|
Industry 4.0
|
Communication Standard |
SMEMA, SECS/GEM, IPC-CFX-2591, IPC-HERMES-9852 |
|
Yield Management System |
YMS 4.0 (Optional) |
Optional Components
|
Analog Hardware |
Fixture Conversion Kits for Teradyne, GenRad |
|
Digital Testing |
-
APPS Power Supplies: Programmable 75 V/8 A/200 W Max., 1 Channel
-
Includes BScan Chain Test, BScan Cluster Test, BScan Virtual Nails Test, BScan Virtual Chain Test and IEEE1149.6 Test
-
Serial Test Controller (STC) Programming
-
DPS Programmable DUT Power supply:
(1) DPS3514: 30Vmax/5Amax/100Wmax per channel /4CH per DPS
(2) DPS3122: 30Vmax/10Amax/200Wmax per channel /2CH per DPS
(3) SPS5450 : 54Vmax/50Amax/2400Wmax per channel/1CH per rack
-
ToggleScan Test
-
VregTestTM: Multi-Phase PWM Individual Phase Frequency & Duty P/N Measurements
|
System Requirement
|
Power Requirement |
200 – 240 V, Single Phase, 50/60 Hz, 4 kVA.
|
|
Power Feature |
Power Line Earth Ground Auto Detection. Power 50/60 Hz Auto Detection. |
|
Air Requirement |
Dry Air 4 – 8 kg/cm2 |
|
Vacuum Requirement |
Min. -0.86 bar (-12.6 psi), Exhaust: 70 m3/h |
Dimensions
|
WxDxH |
TR8100 SII: 1150 x 850 x 800 mm
TR8100L SII: 1400 x 850 x 800 mm |
|
Weight |
TR8100 SII: 400 kg
TR8100L SII: 470 kg |
