Automated X-ray Inspection (AXI)
|
TR7600XM/LL SII
 |
|
|
|

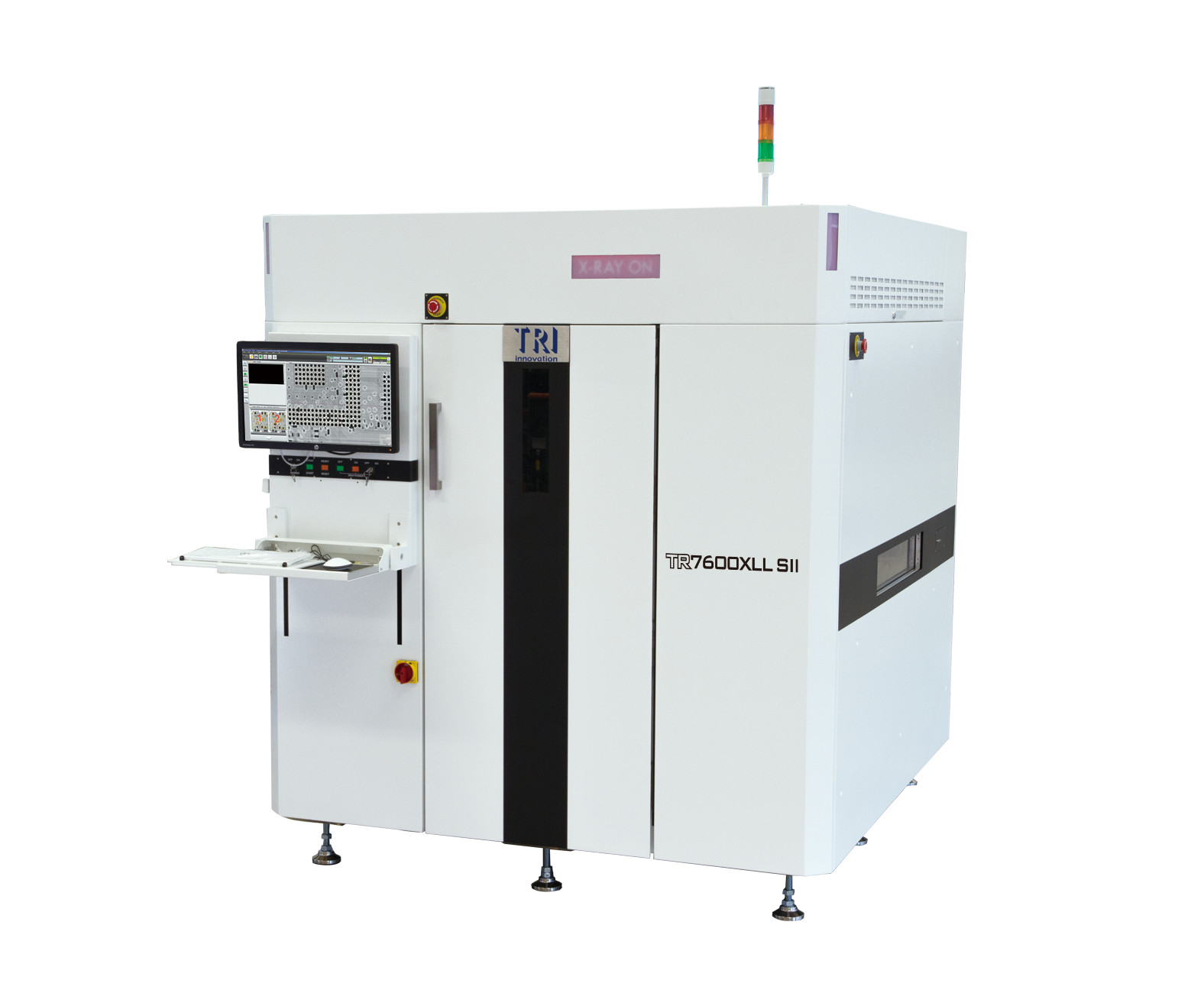

TR7600XLL SII
|
|
|
INTRODUCTION
TR7600XM SII and TR7600XLL SII are high performance and high speed 3D AXI for the largest server, networking and power PCBs. The TR7600XM SII and TR7600XLL SII systems use TRI's unique shadow-free technology to inspect multi-layer boards with 2/3-layer PoPs, µBGAs, QFNs and Press-fit connectors. Smart programming assistants and multi-resolution programs help maximize production yields on any production line.
-
• Very Large board edge to edge inspection up to 1000 mm x 660 mm
• Automated programming saves hours of engineer workload
• Multi resolution programs and advanced processing for superior image quality
• Automatic 2D + 3D slice image extraction using Digital Tomosynthesis
• X-ray tube with adjustable output up to 130 kV/300 µA
Optical System
| Imaging Method |
|
| Camera |
|
| Imaging Resolution |
|
| Lighting |
|
| 3D Technology |
|
| Field of View |
|
Inspection Performance
| Imaging Speed |
|
| Height Resolution |
|
| Max. Solder Height |
|
Motion Table & Control
| X-Axis Control |
|
| Y-Axis Control |
|
| Z-Axis Control |
|
| X-Y Axis Resolution |
|
| Z-Axis Resolution |
|
Board Handling
| Max PCB Size |
|
| PCB Thickness |
|
| Max PCB Weight |
|
| Top Clearance |
|
| Bottom Clearance |
|
| Edge Clearance |
|
| Conveyor Height |
|
Optical System
| Imaging Method |
|
| Top Camera |
|
| Angle Camera |
|
| Imaging Resolution |
|
| Lighting |
|
| 3D Technology |
|
| Max. 3D Range |
|
Motion Table & Control
| X-Axis Control |
|
| Y-Axis Control |
|
| Z-Axis Control |
|
| X-Y Axis Resolution |
|
Board Handling
| Max PCB Size |
|
| PCB Thickness |
|
| Max PCB Weight |
|
| Top Clearance |
|
| Bottom Clearance |
|
| Edge Clearance |
|
| Conveyor |
|
Imaging System
| Camera |
High-performance, ultra-sensitive bidirectional line-scan cameras |
| X-ray Source |
Microfocus tube 130 kV max (user adjustable) |
| Imaging Resolution |
7 μm, 10 μm, 15 μm, 20 μm (3 settings factory configured) |
| Inspection Method |
2.5D, 3D Slicing, Planar CT (optional) |
Motion Table & Control
| X-Axis Control |
High-precision ballscrew + AC-servo controller |
| Y-Axis Control |
High-precision ballscrew + AC-servo controller |
| Z-Axis Control |
High-precision ballscrew + AC-servo controller |
| X-Y Axis Resolution |
1 µm |
Board Handling
| Max PCB Size |
TR7600XM SII: 700 x 350 mm
TR7600XLL SII: 1000 x 660 mm
|
| PCB Thickness |
TR7600XM SII: 0.6-5 mm
TR7600XLL SII: 0.6-7 mm
|
| Max PCB Weight |
TR7600XM SII: 3 kg [8 kg optional]
TR7600XLL SII: 12 kg [15 kg optional]
|
| Top Clearance |
@ 20 μm: 50 mm
@ 15 μm: 30 mm
@ 10 μm: 15 mm
@ 7 μm: 7 mm
|
| Bottom Clearance |
70 mm |
| Edge Clearance |
3 mm [5 mm optional] |
| Conveyor Height |
880 - 920 mm
* SMEMA Compatible
|
Inspection Functions
| Component |
Missing
Misalignment
Tombstone
Billboard
Tantalum Polarity
Rotation
Floating
|
| Solder |
Insufficient/Excess Solder
Bridging
Open
Solder Ball
Non-wetting
Void
Lifted Lead
|
Dimensions
| WxDxH |
TR7600XM SII: 1305 x 1760 x 1945 mm
TR7600XLL SII: 1750 x 2140 x 1945 mm
Note: not including signal tower, height: 510 mm
|
| Weight |
TR7600XM SII: 3375 kg
TR7600XLL SII: 4500 kg
|
| Power Requirement |
TR7600XM SII :200 - 240 VAC single Phase, 50/60 Hz 4 kVA
TR7600XLL SII: 200 - 240 VAC three phase, 50/60 Hz, 7 kVA
(346-416 VAC optional three phase transformer)
|
|
