INTRODUCTION

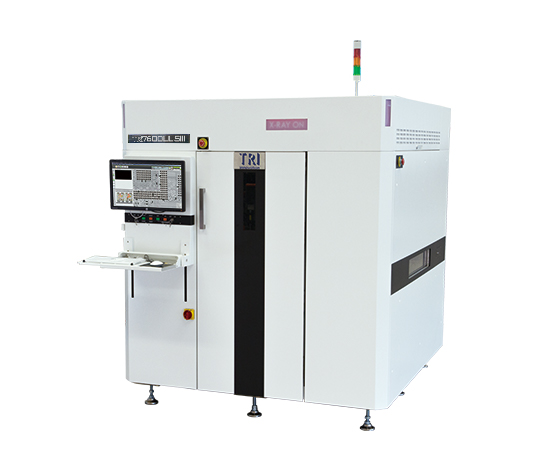

TR7600LL SIII 시리즈 CT AXI는 차세대 TRI의 특징 인라인 PCBA 검사 솔루션입니다.TR7600LL SIII는 초대형 보드의 100 % 검사 범위를 위해 설계되어 업계에서 가장 진보 된 자동 X-ray 검사기로 업계 최고속/고해상도 이미징 성능과 우수한 이미지 품질을 제공합니다.
•초고속 3D CT X-Ray 검사
• 우수한 이미지 품질
• 3D 실사 솔더 조인트 뷰어
• 초 대형 보드 검사
•01005 칩을 위한 고 해상도
Optical System
| Imaging Method |
|
| Camera |
|
| Imaging Resolution |
|
| Lighting |
|
| 3D Technology |
|
| Field of View |
|
Inspection Performance
| Imaging Speed |
|
| Height Resolution |
|
| Max. Solder Height |
|
Motion Table & Control
| X-Axis Control |
|
| Y-Axis Control |
|
| Z-Axis Control |
|
| X-Y Axis Resolution |
|
| Z-Axis Resolution |
|
Board Handling
| Max PCB Size |
|
| PCB Thickness |
|
| Max PCB Weight |
|
| Top Clearance |
|
| Bottom Clearance |
|
| Edge Clearance |
|
| Conveyor Height |
|
Optical System
| Imaging Method |
|
| Top Camera |
|
| Angle Camera |
|
| Imaging Resolution |
|
| Lighting |
|
| 3D Technology |
|
| Max. 3D Range |
|
Motion Table & Control
| X-Axis Control |
|
| Y-Axis Control |
|
| Z-Axis Control |
|
| X-Y Axis Resolution |
|
Board Handling
| Max PCB Size |
|
| PCB Thickness |
|
| Max PCB Weight |
|
| Top Clearance |
|
| Bottom Clearance |
|
| Edge Clearance |
|
| Conveyor |
|
Imaging System
| Camera |
Ultra-High Speed Line-Scan CCD Cameras (3 or 5 Units) |
| X-ray Source |
130 kV max (user adjustable) |
| Imaging Resolution |
7 μm,10 μm,15 μm, 20 μm (user selectable) |
| Inspection Method |
2D, 2.5D, 3D Slicing, Planar CT (Optional) |
Motion Table & Control
| X-Axis Control |
High-precision ballscrew + AC-servo controller |
| Y-Axis Control |
High-precision ballscrew + AC-servo controller |
| Z-Axis Control |
High-precision ballscrew + AC-servo controller |
| X-Y Axis Resolution |
N/A |
Board Handling
| Max PCB Size |
Standard: 510 x 660 mm
2 Stages: 1000 x 660 mm |
| PCB Thickness |
0.6 - 7 mm |
| Max PCB Weight |
12 kg |
| Top Clearance |
@ 20 μm: 50 mm
@ 15 μm: 30 mm
@ 10 μm: 15 mm
@ 7 μm: 7 mm |
| Bottom Clearance |
70 mm |
| Edge Clearance |
3 mm or 5 mm |
| Conveyor Height |
880 - 920 mm (34.6 - 36.2 in.) |
Inspection Functions
| Capabilities |
Missing, Misalignment, Tombstone, Billboard, Tantalum Polarity,
Rotation, Floating |
| Defects |
Insufficient/Excess Solder, Bridging, Open, Solder Ball, Non-wetting,
Void, Lifted Lead |
Dimensions
| WxDxH |
1750 x 2140 x 1945 mm |
| Weight |
4500 kg |
| Power Requirement |
200 - 240 VAC three phase, 50/60 Hz, 7 kVA
(346-416 VAC optional three phase transformer) |
|
