INTRODUCTION

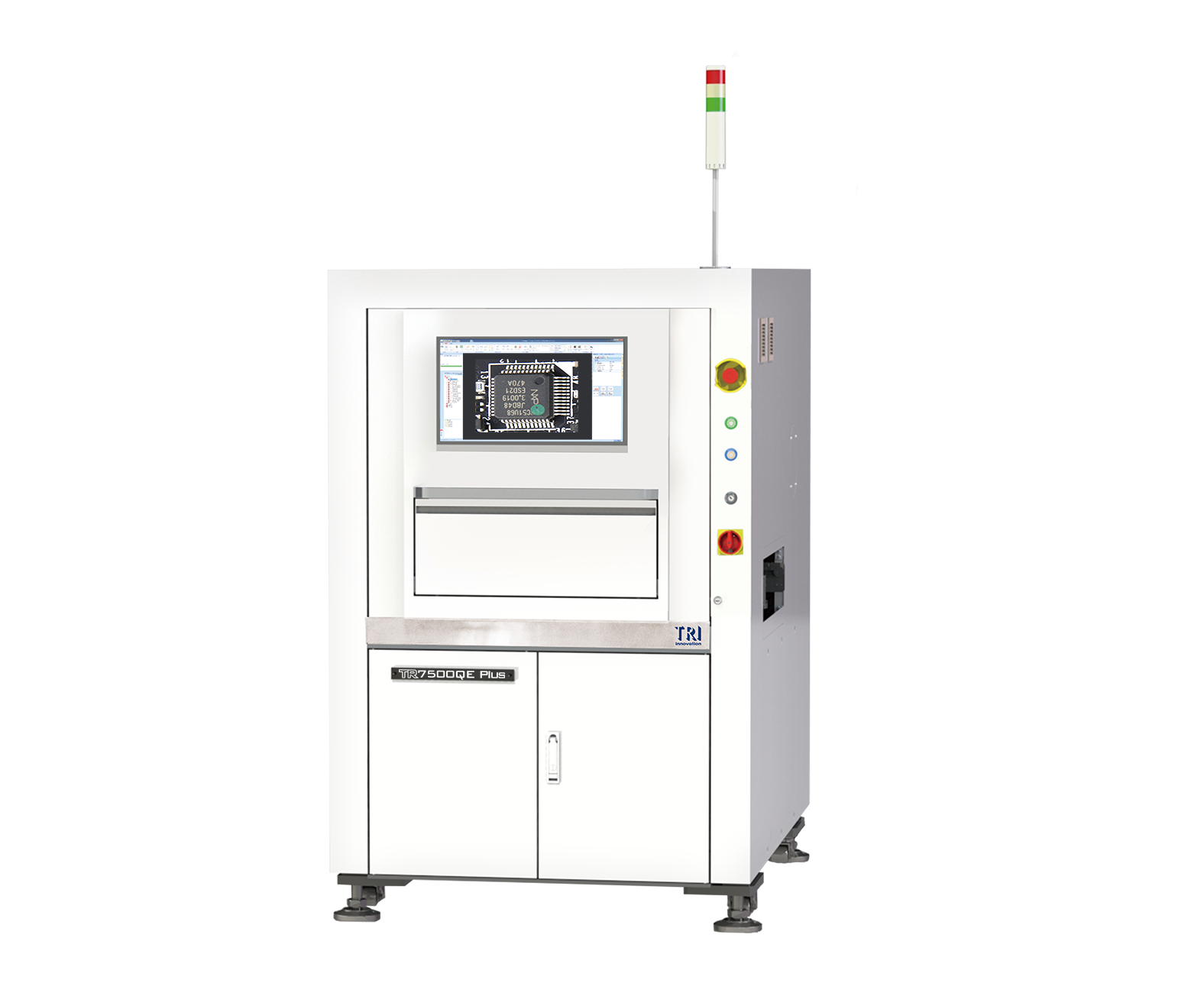

TR7500QE Plus는 차세대 Multi 카메라 측면 뷰 3D AOI입니다. 비용 효율적인 3D AOI 플랫폼은 혁신적인 인공지능(AI) 구동 알고리즘과 높은 정확도 검사를 제공하는 강화된 기계 기능을 탑재 했습니다. 플랫폼에서는 사이드 뷰 카메라를 사용하여 내부 레이어 브리지, 숨겨진 리프팅 리드 및 기타 시야 밖의 결함을 검사할 수 있습니다. TR7500QE Plus는 IPC-CFX 및 헤르메스 표준(IPC-HERMES-9852)과 같은 현재의 스마트 팩토리 표준을 지원합니다.
• 다각도 3D 사이드 뷰, 5대의 카메라 검사
VIDEO
Optical System
Imaging Method
Camera
Imaging Resolution
Lighting
3D Technology
Field of View
Inspection Performance
Imaging Speed
Height Resolution
Max. Solder Height
Motion Table & Control
X-Axis Control
Y-Axis Control
Z-Axis Control
X-Y Axis Resolution
Z-Axis Resolution
Board Handling
Max PCB Size
PCB Thickness
Max PCB Weight
Top Clearance
Bottom Clearance
Edge Clearance
Conveyor Height
Optical System
Imaging Method
Stop-and-Go
Top Camera
12 MP High Speed Camera
Angle Camera
4 Angled Cameras
Imaging Resolution
10 µm, 12 µm *, 15 µm (factory setting)
Lighting
Multi-Phase True Color LED, Coaxial Lighting
3D Technology
Digital Fringe Pattern Projectors
Max. 3D Range
40 mm
Inspection Performance
Imaging Speed
@ 10 μm: 25 cm²/sec
Motion Table & Control
X-Axis Control
Ballscrew + AC Servo with Motion Controller (Linear Motor Optional)
Y-Axis Control
Dual Driven Ballscrew + AC Servo with Motion Controller
Z-Axis Control
Ballscrew + AC Servo with Motion Controller
X-Y Axis Resolution
1 μm
Board Handling
Max PCB Size
TR7500QE Plus: 510 x 510 mm
PCB Thickness
0.5 - 6 mm
Max PCB Weight
3kg. Option: 4kg / 5kg
Top Clearance
50 mm
Bottom Clearance
40 mm
Edge Clearance
3 mm. Optional: 4 mm / 5 mm
Conveyor
Inline Height: 880 – 920 mm
Inspection Functions
Component
Missing, Tombstoning, Billboarding, Polarity, Rotation, Shift, Wrong Marking (OCV), Defective, Upside Down, Extra Component, Foreign Material
Solder
Solder Fillet Height, Solder Volume %, Excess Solder, Insufficient Solder, Bridging, Through-hole Pins, Lifted Lead, Golden Finger Scratch/ Contamination
Dimensions
WxDxH
TR7500QE Plus: 1100 x 1730 x 1700 mm
Weight
TR7500QE Plus: 920 kg
Imaging System
Camera
X-ray Source
Imaging Resolution
Inspection Method
Motion Table & Control
X-Axis Control
Y-Axis Control
Z-Axis Control
X-Y Axis Resolution
Board Handling
Max PCB Size
PCB Thickness
Max PCB Weight
Top Clearance
Bottom Clearance
Edge Clearance
Conveyor Height
Dimensions
WxDxH
Weight
Power Requirement
