INTRODUCTION

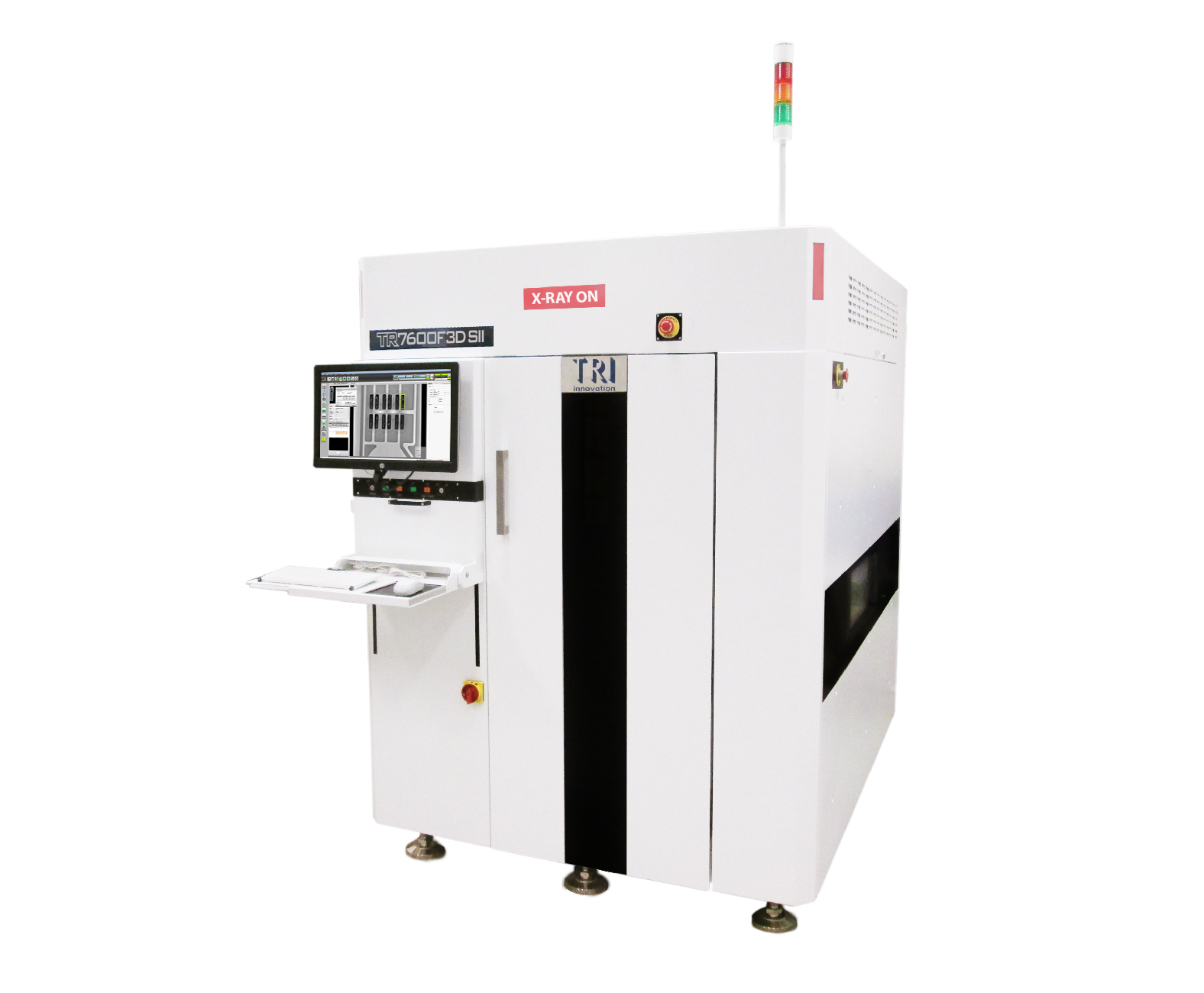

TR7600F3D SII는 차세대 고속 인라인 자동 X-Ray 검사 솔루션으로, 이전 모델보다 2 ~ 3 배 빠른 속도를 자랑합니다. AXI 솔루션은 최대 900mm x 460mm의 대형 보드를 검사 할 수 있습니다. TR7600F3D SII는 생산 라인의 사이클 타임을 맞추면서 불량 반출 및 가성불량을 줄일수 있습니다
• 5 µm의 고정밀도로 포괄적인 불량 검출
VIDEO
Optical System
Imaging Method
Camera
Imaging Resolution
Lighting
3D Technology
Field of View
Inspection Performance
Imaging Speed
Height Resolution
Max. Solder Height
Motion Table & Control
X-Axis Control
Y-Axis Control
Z-Axis Control
X-Y Axis Resolution
Z-Axis Resolution
Board Handling
Max PCB Size
PCB Thickness
Max PCB Weight
Top Clearance
Bottom Clearance
Edge Clearance
Conveyor Height
Optical System
Imaging Method
Top Camera
Angle Camera
Imaging Resolution
Lighting
3D Technology
Max. 3D Range
Motion Table & Control
X-Axis Control
Y-Axis Control
Z-Axis Control
X-Y Axis Resolution
Board Handling
Max PCB Size
PCB Thickness
Max PCB Weight
Top Clearance
Bottom Clearance
Edge Clearance
Conveyor
Imaging System
Camera
Flat Panel Detector
X-ray Source
130 kV Max (User Adjustable)
Imaging Resolution
5 μm ,10 μm, 15 μm, 20 μm, 25 μm, 30 μm
Inspection Method
2D, 2.5D, 3D Slicing, Planar CT (Optional)
Motion Table & Control
X-Axis Control
High-Precision Ballscrew + AC-Servo Controller
Y-Axis Control
High-Precision Ballscrew + AC-Servo Controller
Z-Axis Control
High-Precision Ballscrew + AC-Servo Controller
X-Y Axis Resolution
N/A
Board Handling
Max PCB Size
TR7600F3D SII: 900 x 460 mm
PCB Thickness
TR7600F3D SII: 0.6 - 7 mm
Max PCB Weight
12 kg
Top Clearance
@ 20/25/30 μm: 50 mm
Bottom Clearance
@ 30 μm: 55 mm
Edge Clearance
3 mm or 5 mm
Conveyor Height
880 - 920 mm
Inspection Functions
Capabilities
Missing
Defects
Insufficient/Excess Solder
Dimensions
WxDxH
TR7600F3D SII: 1470 x 1971 x 1974 mm
Weight
TR7600F3D SII: 3850 kg
Power Requirement
200 - 240 VAC single phase, 50/60 Hz, 4 kVA
