TR7700 SIII DT


TR7700 SIII DT

INTRODUCTION

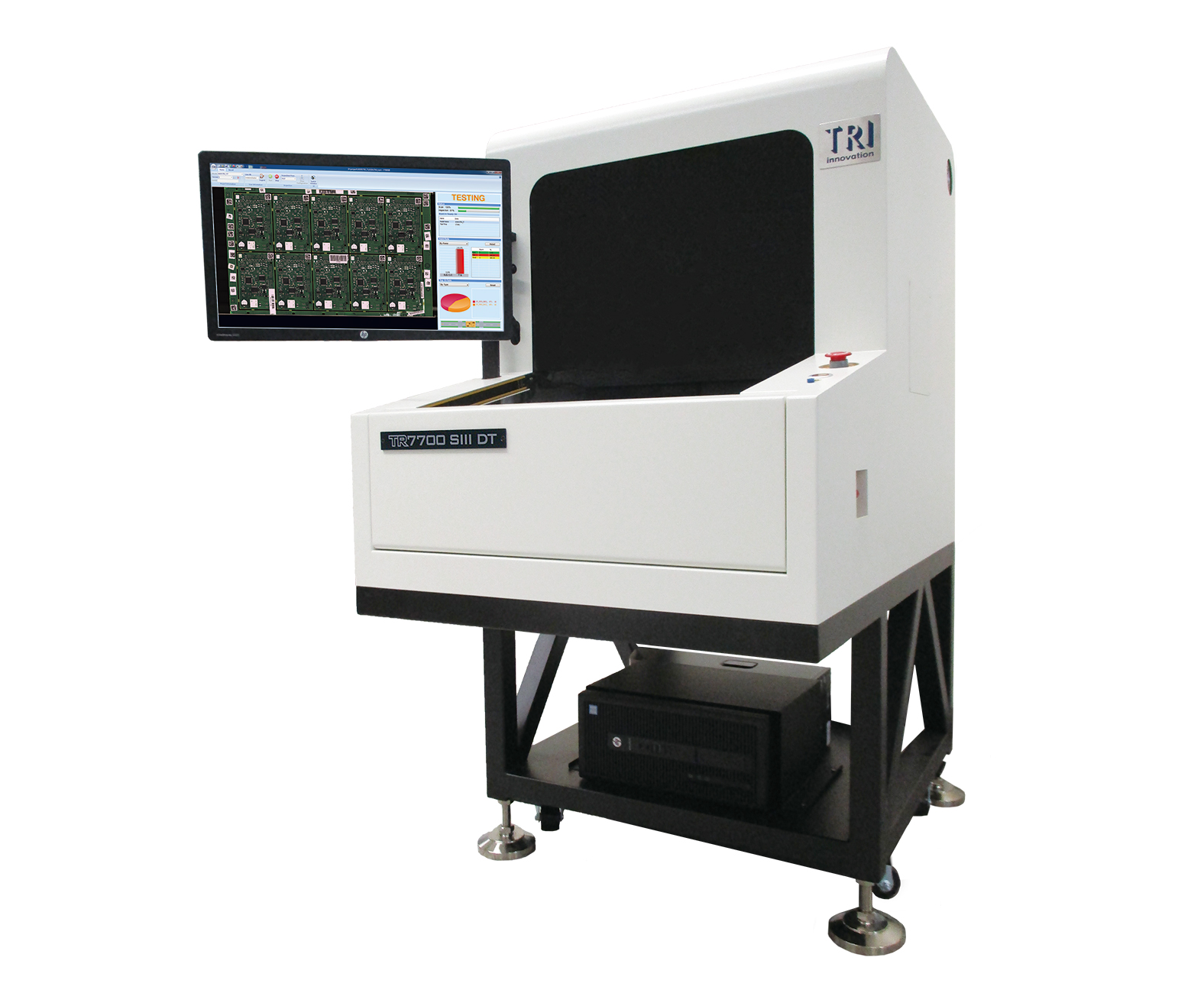

TR7700 SIII DT는 최대의 정밀도와 간편한 사용을 목표로 특별히 설계된 고성능 데스크톱 AOI 솔루션입니다. TRI 독점 다상 조명 및 차세대 검사 소프트웨어를 사용하는 TR7700 SIII DT는 빠르고 간편하게 프로그래밍으로 우수한 결함 감지를 제공하므로 변경이 잦은 생산 시설에 이상적입니다.

• 사전/사후 리플로우 검사를 위한 고정밀 데스크톱 AOI 솔루션
• IPC 표준을 준수하는 빠르고 간편한 프로그래밍
• 고급 알고리즘 및 다상 조명으로 오류 지시 최소화

Please login to access member content

Optical System

Imaging Method
Camera
Imaging Resolution
Lighting
3D Technology
Field of View

Inspection Performance

Imaging Speed
Height Resolution
Max. Solder Height

Motion Table & Control

X-Axis Control
Y-Axis Control
Z-Axis Control
X-Y Axis Resolution
Z-Axis Resolution

Board Handling

Max PCB Size
PCB Thickness
Max PCB Weight
Top Clearance
Bottom Clearance
Edge Clearance
Conveyor Height

Inspection Functions

Defects
Measurement

Dimensions

WxDxH
Weight

Optical System

Imaging Method	Dynamic Imaging
Top Camera	4 Mpix
Angle Camera	N/A
Imaging Resolution	10 µm, 15 µm (factory setting)
Lighting	Multi-phase RGB+W LED
3D Technology	N/A
Max. 3D Range	N/A

Inspection Performance

Imaging Speed

4 Mpix@ 10 µm: 60 cm²/sec
4 Mpix@ 12.5 µm: 120 cm²/sec

Motion Table & Control

X-Axis Control	Ballscrew + AC-servo controller
Y-Axis Control	Ballscrew + AC-servo controller
Z-Axis Control	N/A
X-Y Axis Resolution	1 µm

Board Handling

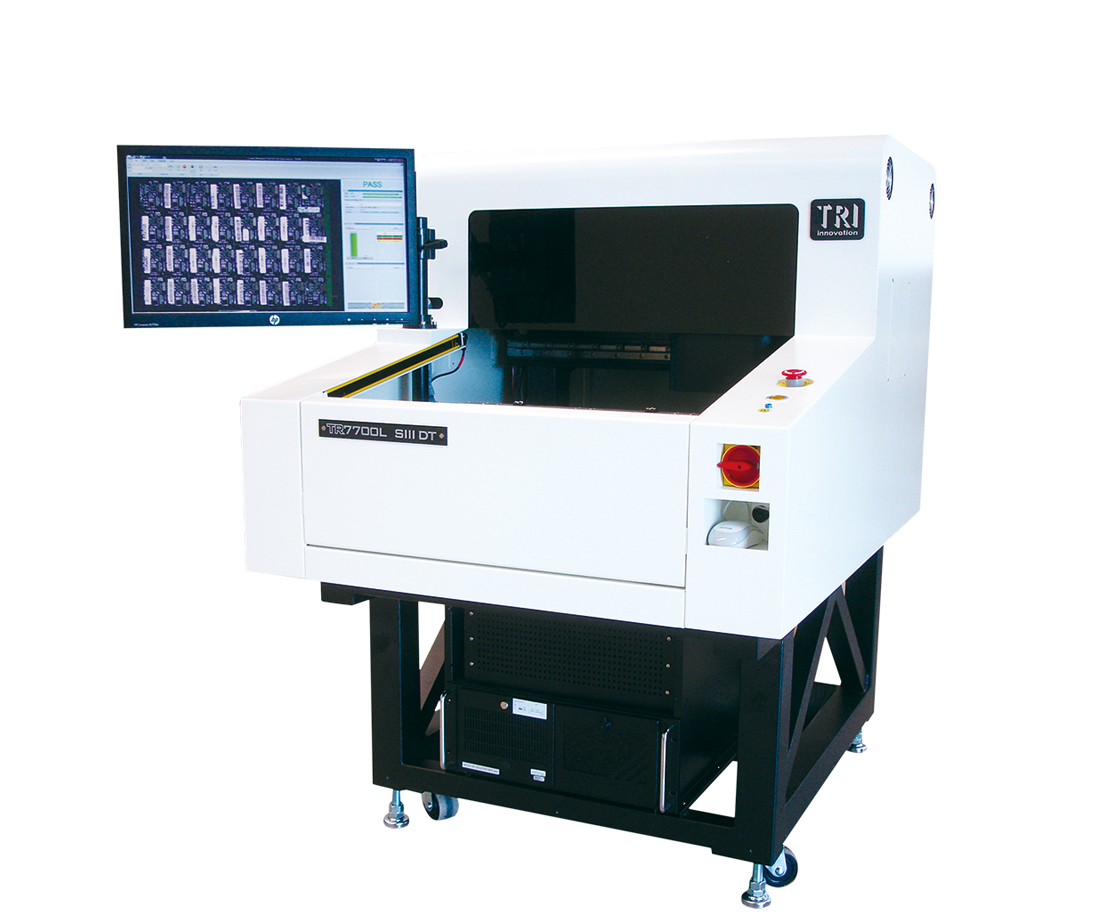

Max PCB Size	TR7700 SIII DT: 330 x 250 mm TR7700L SIII DT: 510 x 460 mm
PCB Thickness	3 mm
Max PCB Weight	3 kg
Top Clearance	25 mm [48 mm optional]
Bottom Clearance	TR7700 SIII DT: 100 mm TR7700L SIII DT: 50 mm
Edge Clearance	3 mm
Conveyor	Manual

Inspection Functions

Component	Missing Tombstoning Billboarding Polarity Rotation Shift Wrong Marking (OCV) Defective Upside Down Extra Component Foreign Material
Solder	Excess Solder Insufficient Solder Bridging Through-hole Pins Lifted Lead Golden Finger Scratch/Contamination

Dimensions

WxDxH	TR7700 SIII DT: 860 x 1100 x 1350 mm TR7700L SIII DT: 980 x 1345 x 1490 mm
Weight	TR7700 SIII DT: 340 kg TR7700L SIII DT: 385 kg

Imaging System

Camera
X-ray Source
Imaging Resolution
Inspection Method

Motion Table & Control

X-Axis Control
Y-Axis Control
Z-Axis Control
X-Y Axis Resolution

Board Handling

Max PCB Size
PCB Thickness
Max PCB Weight
Top Clearance
Bottom Clearance
Edge Clearance
Conveyor Height

Inspection Functions

Capabilities
Defects

Dimensions

WxDxH
Weight
Power Requirement
