INTRODUCTION

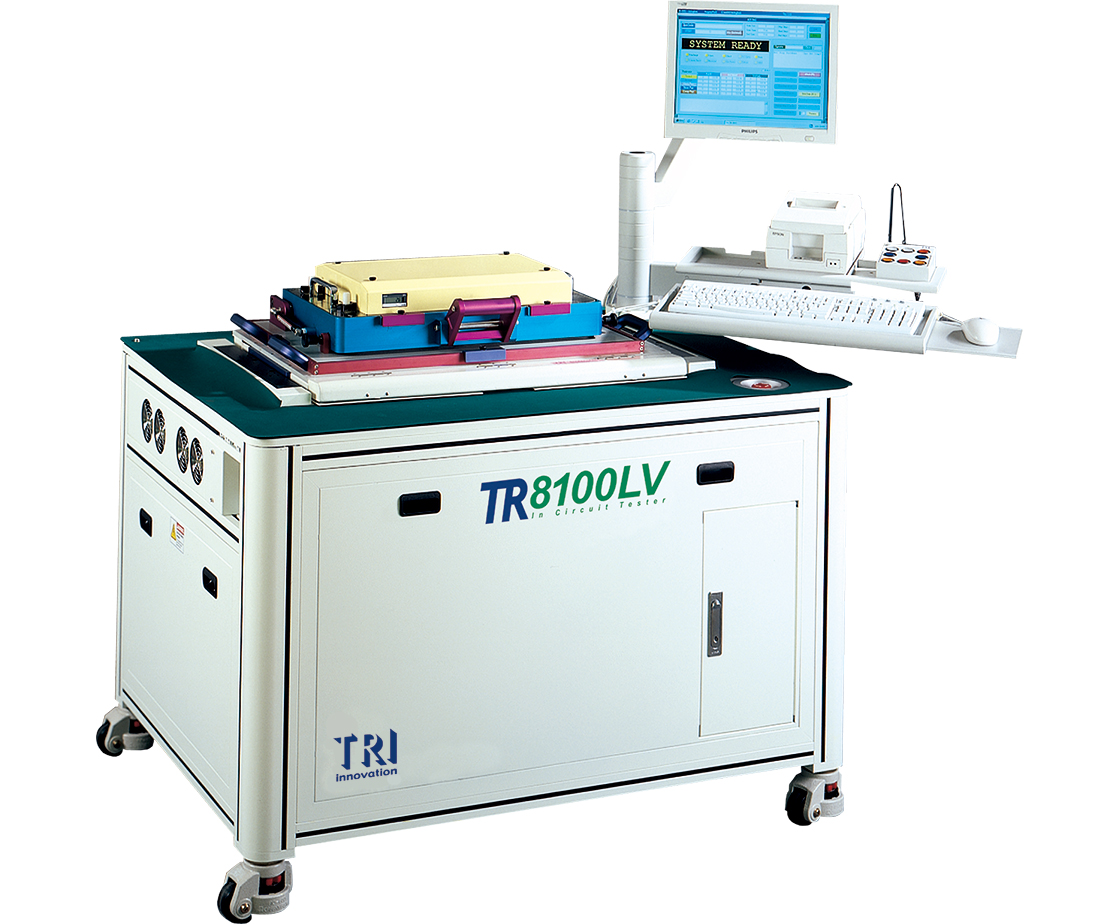

복잡한 대형 PCBA 테스트용으로 설계된 TR8100LV는 TRI 제품 중에서도 최고급 기판 테스트 시스템으로 저전력 테스트 시장을 대상으로 합니다. TR8100LV의 진공 시스템은 MUX 없는 최대 3584핀 디지털 아키텍처로 완전 핀 접촉을 보장하고, 핀 개수가 많은 장치를 더욱 빠르고 간단하게 테스트할 수 있으며, 빠른 프로그램 개발이 가능합니다. 바운더리 스캔과 접근이 제한된 기판을 대상으로 한 솔루션을 조합한 *TRI ToggleScan® & VregTest®기술이 내장되었습니다. *"ToggleScan®" & "VregTest®" 은 Test Research, Inc.의 등록상표입니다.
-
• 핀당 디지털 1:1 드라이버/수신기 아키텍처 설계
• 진공 고정 장치가 포함된 고장 고검출 테스트 솔루션
• 저전압 장치 테스트 및 빠른 테스트 속도
• 친숙한 UI로 빠르고 손쉬운 프로그램 개발 가능
Tester Specifications
Analog/hybrid test points |
TR8100LV: 3584
TR8100LLV: 5632 |
Operating System |
Microsoft® Windows compatible PC, Windows 10 |
Fixture Type |
Offline press or vacuum type fixture |
Standard Testing Components
Analog Test Hardware |
-
6-wire measurement switching matrix
-
Programmable AC/DC/DC High voltage and current sources
-
AC/DC voltage, DC current measurement, frequency
-
Component R/L/C measurement
-
Synthesized Arbitrary Waveform Generator
-
TestJet vectorless open circuit detection
|
Digital Testing |
-
Non-multiplexing 1:1 per pin architecture with independent per-pin level setting
-
DUT power supplies: 5 V@5 A, 3.3 V@5 A, 12 V@5A, 0.2~20 V@3 A and -3~-20 V@3 A
-
On-board Flash, EEPROM, MAC programming
|
Optional Components
Analog Hardware |
Fixture Conversion Kits for Teradyne, GenRad |
Digital Testing |
-
Programmable DUT power supplies: 75 V / 8 A, 200W maximum output power
-
Includes BScan Chain Test, BScan Cluster Test, BScan Virtual Nails Test, BScan Virtual Chain Test and IEEE1149.6 Test
|
Yield Management System |
YMS 4.0 |
Dimensions
WxDxH |
TR8100LV: 1150 x 850 x 800 mm
TR8100LLV: 1550 x 850 x 800 mm |
Weight |
TR8100LV: 390 kg
TR8100LLV: 450 kg |
Optical System
Imaging Method |
|
Camera |
|
Imaging Resolution |
|
Lighting |
|
3D Technology |
|
Field of View |
|
Inspection Performance
Imaging Speed |
|
Height Resolution |
|
Max. Solder Height |
|
Motion Table & Control
X-Axis Control |
|
Y-Axis Control |
|
Z-Axis Control |
|
X-Y Axis Resolution |
|
Z-Axis Resolution |
|
Board Handling
Max PCB Size |
|
PCB Thickness |
|
Max PCB Weight |
|
Top Clearance |
|
Bottom Clearance |
|
Edge Clearance |
|
Conveyor Height |
|
Optical System
Imaging Method |
|
Top Camera |
|
Angle Camera |
|
Imaging Resolution |
|
Lighting |
|
3D Technology |
|
Max. 3D Range |
|
Motion Table & Control
X-Axis Control |
|
Y-Axis Control |
|
Z-Axis Control |
|
X-Y Axis Resolution |
|
Board Handling
Max PCB Size |
|
PCB Thickness |
|
Max PCB Weight |
|
Top Clearance |
|
Bottom Clearance |
|
Edge Clearance |
|
Conveyor |
|
Imaging System
Camera |
|
X-ray Source |
|
Imaging Resolution |
|
Inspection Method |
|
Motion Table & Control
X-Axis Control |
|
Y-Axis Control |
|
Z-Axis Control |
|
X-Y Axis Resolution |
|
Board Handling
Max PCB Size |
|
PCB Thickness |
|
Max PCB Weight |
|
Top Clearance |
|
Bottom Clearance |
|
Edge Clearance |
|
Conveyor Height |
|
Dimensions
WxDxH |
|
Weight |
|
Power Requirement |
|
|
