ICT(In-Circuit Tester, 회로판 테스트 장비)
|
INTRODUCTION

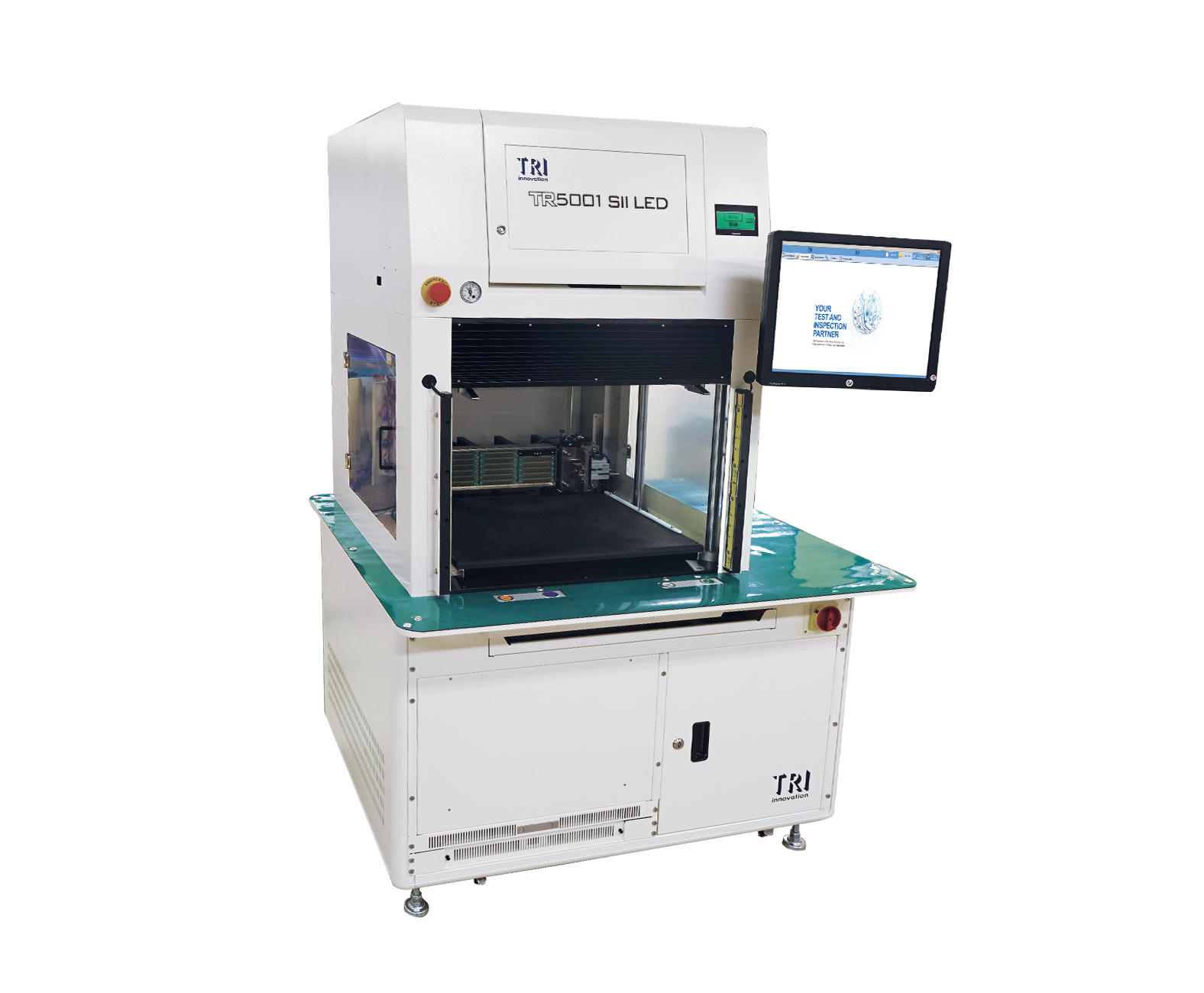

TR5001 SII LED 시리즈는 최대 1080개의 LED 테스트 채널을 갖춘 LED 조명 테스터로 TRI의 최신 ICT + FCT 혁신 제품입니다. ICT+FCT 솔루션은 최대 4개의 독립 코어로 고급 성능의 멀티 코어 병렬 테스트가 가능하고, 내장된 자동 교정 및 자가 진단과 함께 내구성이 뛰어난 QDI( 빠른 분리 인터페이스)로 장기간 테스트 신뢰성 보장합니다. TR5001 SII LED 시리즈는 자동차 산업 LED 조명 테스트에 적합니다.
• 멀티 코어 병렬 테스트
• 시스템 내 LED 분석기
• 비 멀티플렉싱 1:1 핀 아키텍처
• 확장 가능한 MDA로 ICT및 기능 테스트
• 높은 정확도와 높은 처리량
• 최대 1080 개의 LED 채널 테스트
• 내구성 뛰어나고 빠른 분리 인터페이스 QDI
• 자동 컨베이어로 폭 위치 결정
• 보드 워프 및 정렬 오류 알림
Tester Specifications
Analog/hybrid test points |
2048 |
Operating System |
Microsoft® Windows compatible PC with USB, Windows 10 |
Fixture Type |
Inline or Offline with Long Lifespan Quick Disconnection Interface |
Standard Testing Components
Analog Test Hardware |
-
6-wire measurement switching matrix
-
Programmable AC/DC/DC High voltage and current sources
-
AC/DC voltage, DC current measurement
-
Component R/L/C measurement
|
In-Tester LED Analyzer
Repeatability |
1% |
LED Channels |
Up to 1080 LED Test channels. (Top: up to 540 / Bottom: up to 540.) |
Fixture Connection |
Quick Disconnection Interface (QDI) |
Optional Components
Analog Hardware |
-
TestJet vectorless open circuit detection
-
Arbitrary Waveform Generator
|
Digital Testing |
-
Non-multiplexing 1:1 per pin architecture with independent per-pin level setting
-
Serial Test Controller (STC) Programming
-
DUT power supplies: 5 V@3 A, 3.3 V@3 A, 12 V@3A, -12 V@1 A and 24 V@3 A
-
DPS Programmable DUT Power supply :
(1) DPS3514: 30Vmax/5Amax/100Wmax per channel /4CH per DPS
(2) DPS3122: 30Vmax/10Amax/200Wmax per channel /2CH per DPS
-
Programmable DUT power supplies: 75 V / 8 A max, 200W maximum output power
-
Includes BScan Chain Test, BScan Cluster Test, BScan Virtual Nails Test, BScan Virtual Chain Test and IEEE1149.6 Test
-
Up to 8 High Speed Serial Ports, On-board Flash, EEPROM, MAC programming
|
Yield Management System |
YMS 4.0 |
Board Handling
Min. PCB Size |
70 x 70 mm |
Max. PCB Size |
500 x 460 mm |
PCB Thickness |
0.6 - 5 mm |
Dimensions
WxDxH |

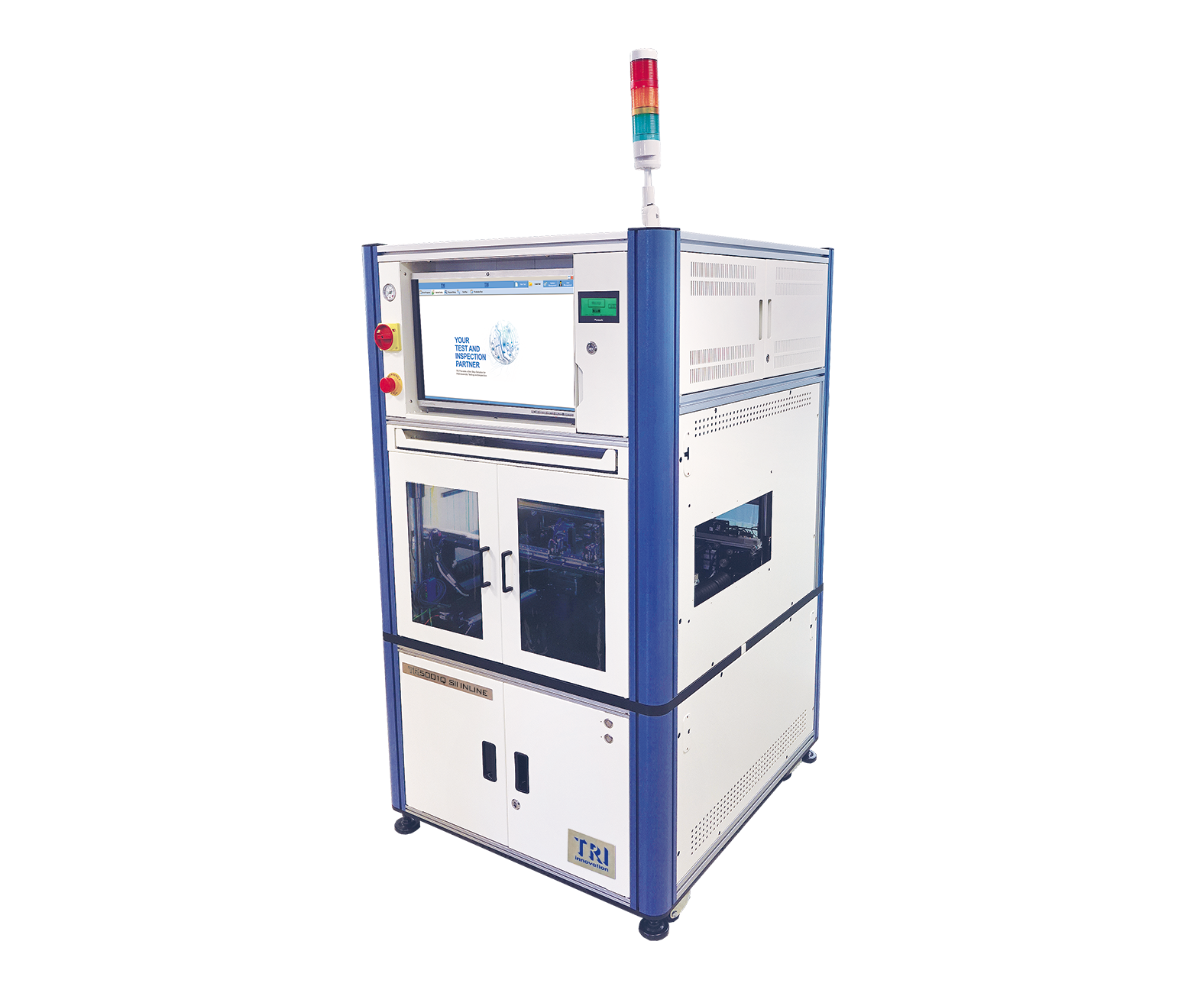

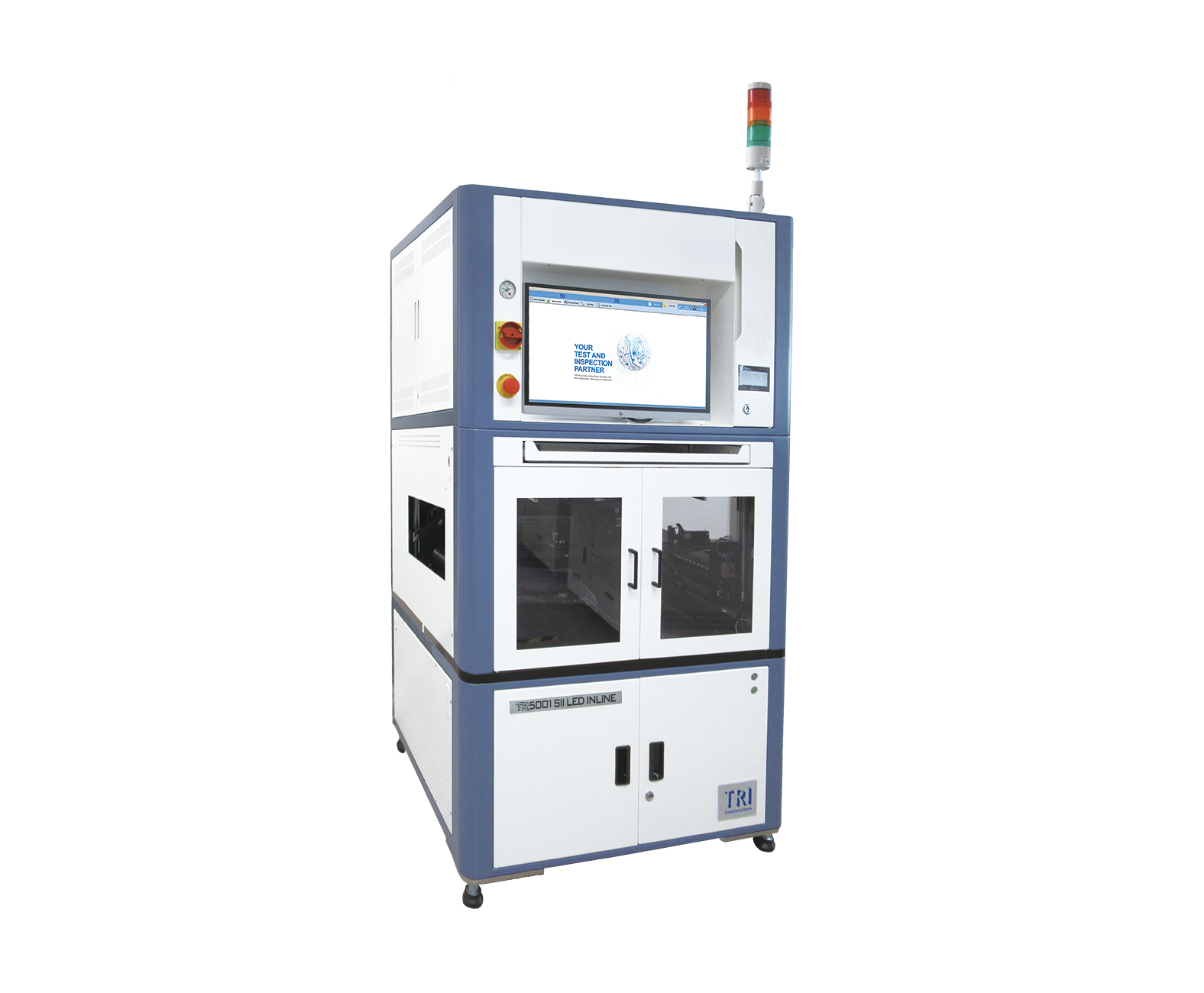

TR5001(D/Q) SII INLINE: 900 x 1180 x 1887 mm*

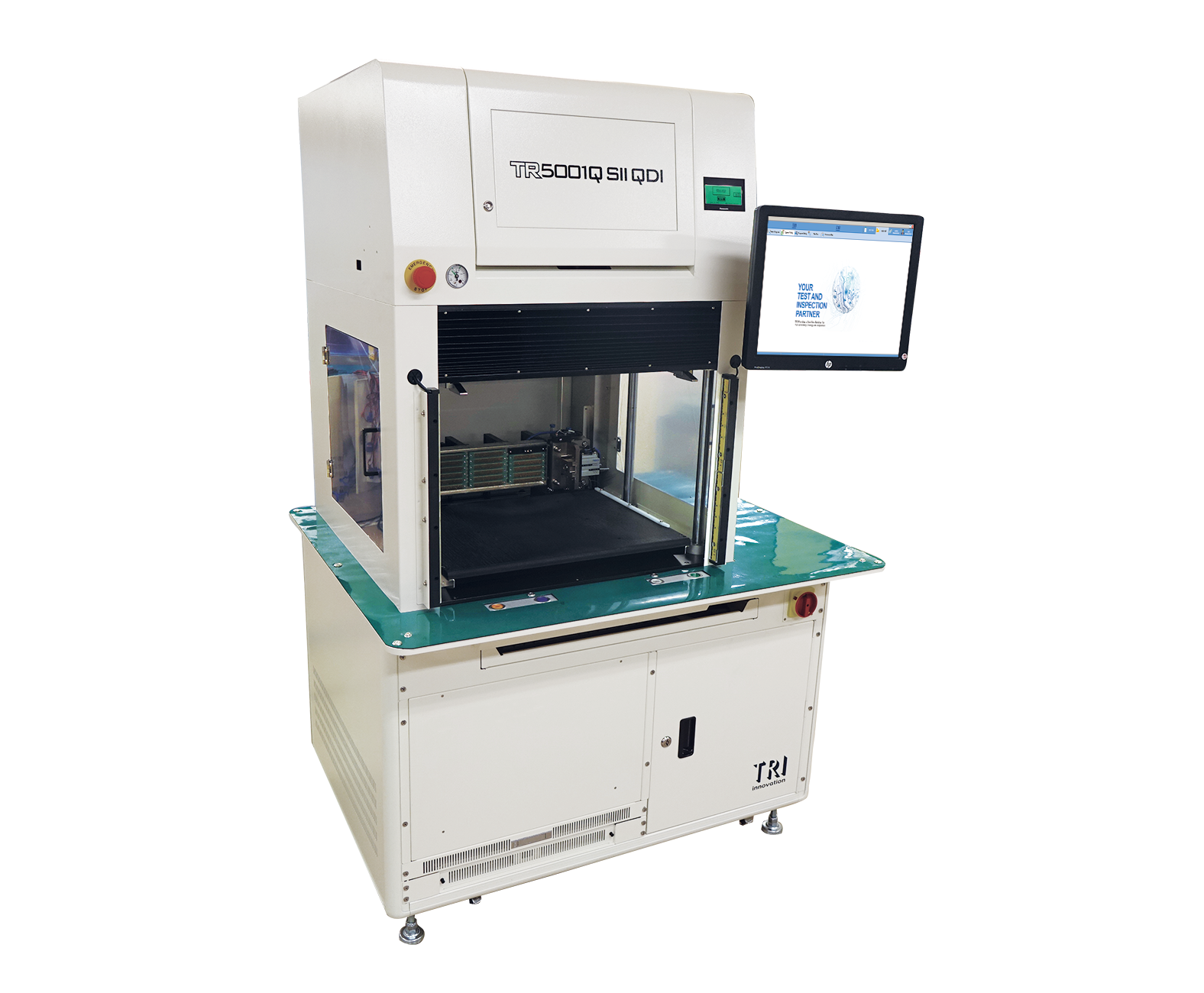

TR5001(D/Q) SII QDI: 1200 x 950 x1850 mm
Note: not including signal tower,signal tower height: 392 mm
|
Weight |
TR5001(D/Q) SII INLINE: 670 kg
TR5001(D/Q) SII QDI: 510 kg
|
