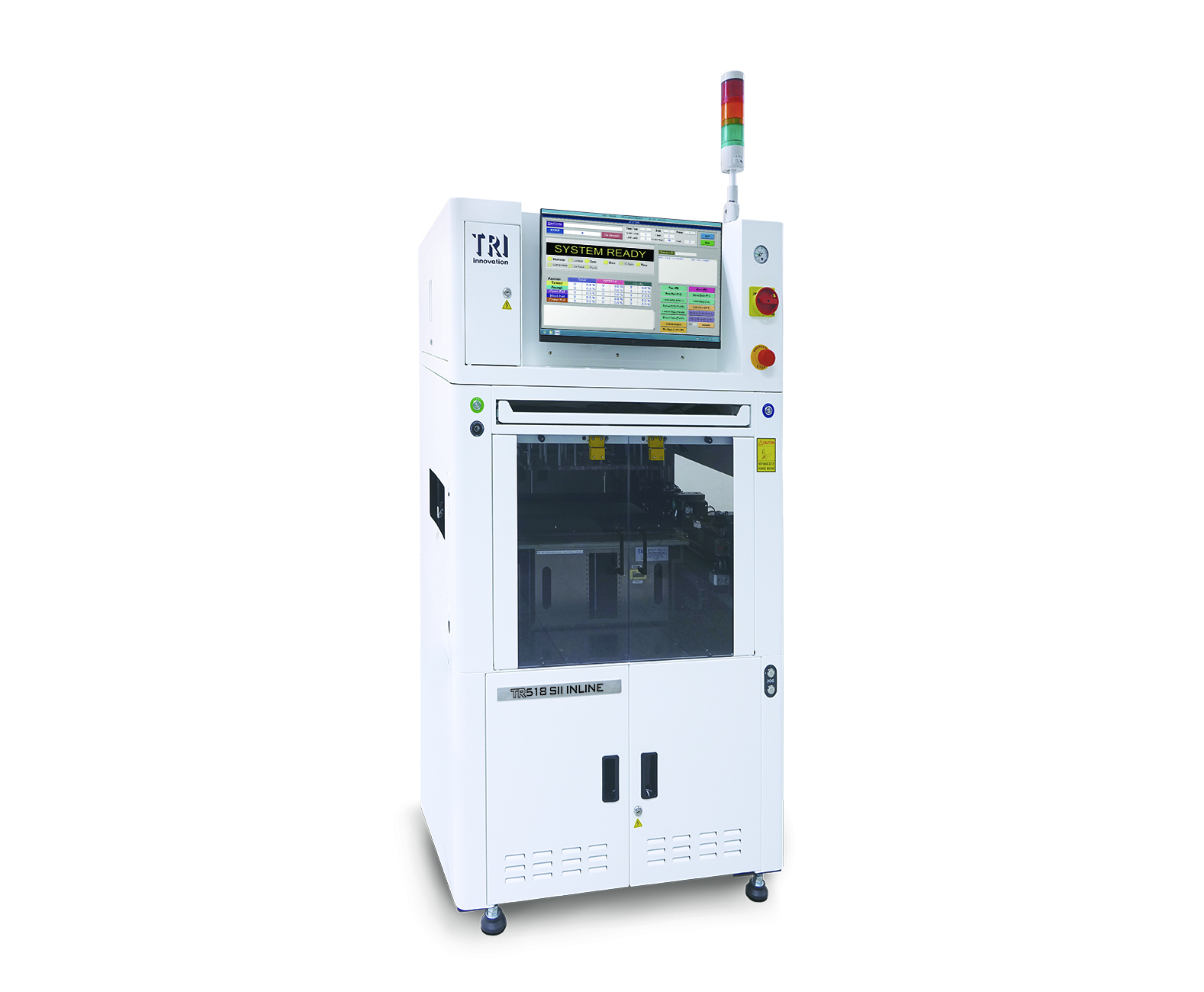

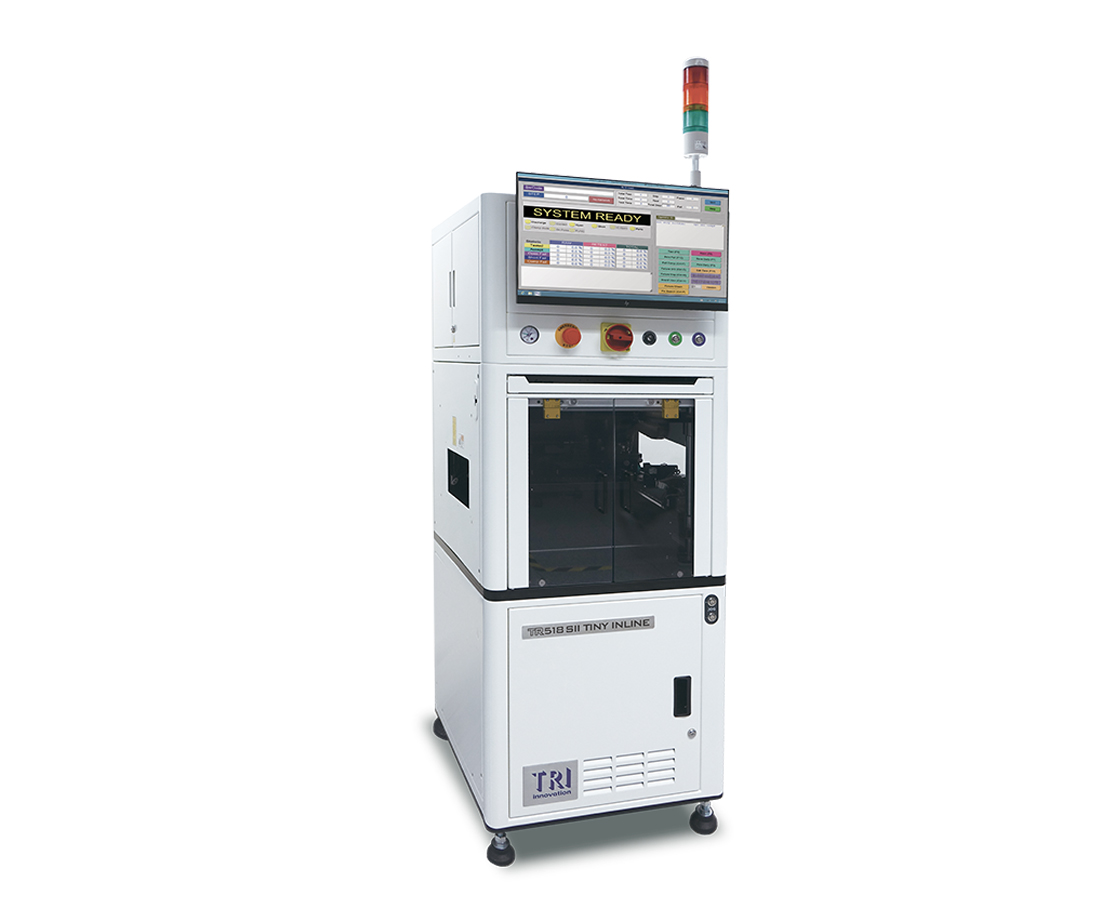

TR518 SII INLINE


TR518 SII INLINE

INTRODUCTION

TR518 SII INLINE은 중간 크기 기판의 MDA 테스트용으로 설계되어, 최대 1024개의 테스트 지점을 지원하는 비용 효율적이며 유연한 자동 테스트 플랫폼입니다. 이 완전 전자식 SMEMA 호환 플랫폼은 차지하는 공간이 극히 작으며, TR518 SII MDA의 기능은 모두 그대로 갖고 있습니다.

• 완전한 기능을 갖춘 인라인 테스트 플랫폼
• TRI MDA 테스트 장비용으로 설계
• SMEMA 통합으로 극히 적은 공간 차지
• 압축 공기 없이 전체 전기 설계
• 최대 1024개 MDA 아날로그 테스트 지점

Tester Specifications

Analog Test Points	1024 analog test points
Operating System	Microsoft^® Windows compatible PC with USB, Windows 10
Fixture Type	Inline/Manual Insertion

Analog Testing

Analog Test Hardware

6-wire measurement switching matrix
Programmable AC/DC/DC High voltage and current sources
Component R/L/C measurement

Optional Components

Analog Hardware	TestJet vectorless open circuit detection Programmable High Voltage DC Source up to 100V / 100 mA
Yield Management System	YMS 4.0

Board Handling

Min. PCB Size	70 x 70 mm
Max. PCB Size	330 x 250 mm
PCB Thickness	0.6 ~ 5 mm

Dimensions

WxDxH	600 x 900 x 1595 mm Note: not including signal tower, height: 515 mm
Weight	340 kg
