ICT(In-Circuit Tester, 회로판 테스트 장비)
|
INTRODUCTION

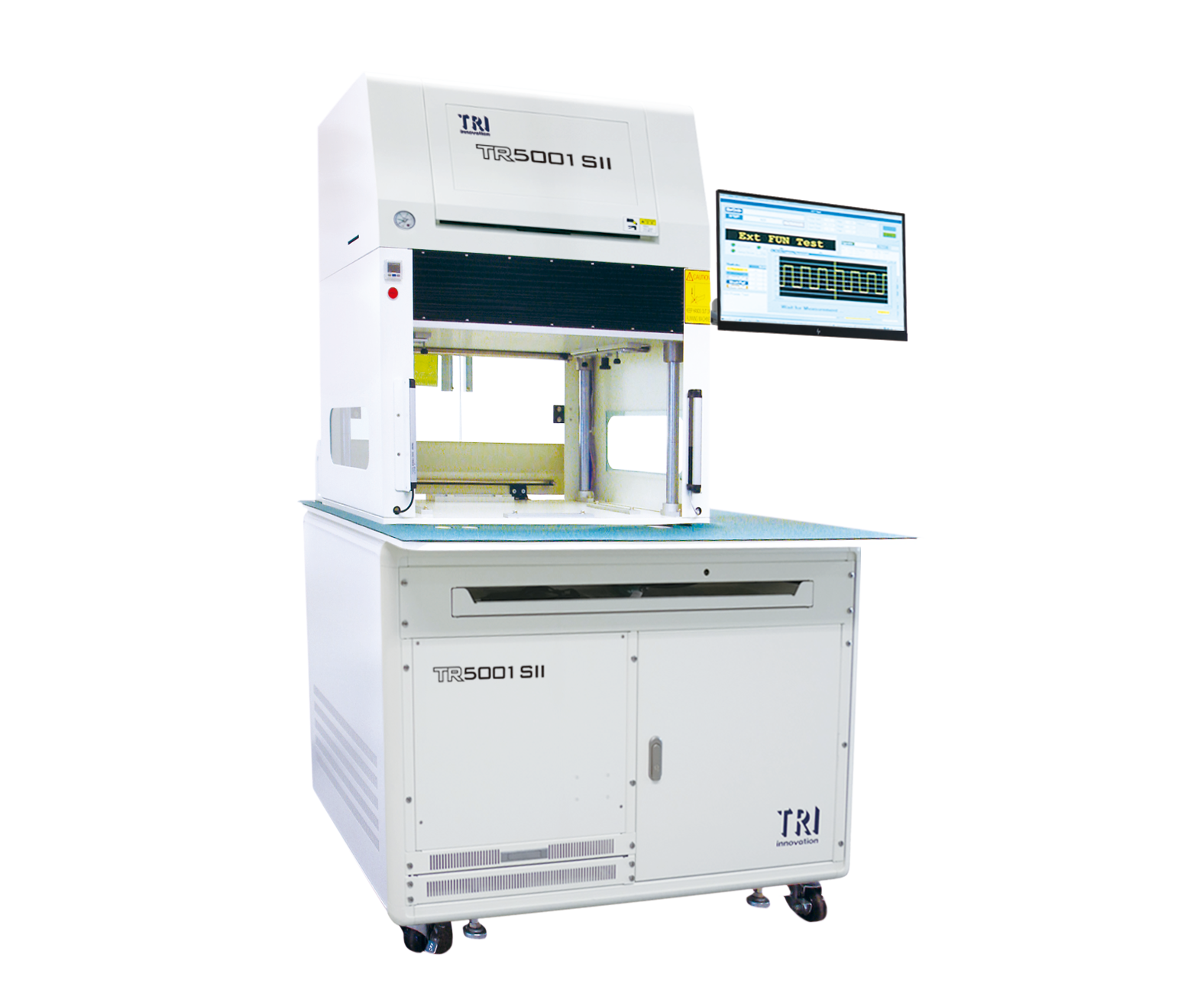

차세대ICT+FCT 솔루션은 높은 처리량을 위해 최대 4개의 독립적 코어를 이용하여 획기적인 성능의 멀티 코어 병렬 테스트를 제공합니다. 향상된 측정 정확도를 제공하는 TR5001Q/D SII의 새로운 자동 교정 및 자가 진단 시스템은 장기간 테스트 신뢰성을 보장합니다.
• 차세대 멀티 코어 병렬 테스터
• 모든 핀 최대 8포트 최첨단 테스트 컨트롤러 시리즈
• 제한된 접근 솔루션으로 PXI 모듈을 이용한 기능적인 테스트 확장
• 자가 진단과 자동 교정 기능 탑재
• 은 정확성의 측정/검사
• 플로우 기반의 쉬운 프로그램 개발과 직접적인 UI
• Auto-calibration by DMM
Tester Specifications
Analog/hybrid test points |
1 Core- 3,456. Optional: 4,480
2 Cores- 3,328. Optional: 4,096
4 Cores- 4,096 |
Operating System |
Microsoft® Windows 11 |
Fixture Type |
Offline press type fixture |
Standard Testing Components
Analog Test Hardware |
-
6-wire measurement switching matrix
-
Programmable AC/DC/DC High voltage and current sources
-
AC/DC voltage, DC current measurement
-
Component R/L/C measurement
-
TestJet vectorless open circuit detection
-
Arbitrary Waveform Generator
|
Industry 4.0
Communication Standard |
SMEMA, SECS/GEM, IPC-CFX-2591, IPC-HERMES-9852 |
Yield Management System |
YMS 4.0 (Optional) |
Optional Components
System Requirement
Power Requirement |
200 – 240 V, Single Phase, 50/60 Hz, 3 kVA. |
Power Feature |
Power Line Earth Ground Auto Detection. Power 50/60 Hz Auto Detection. |
Air Requirement |
Dry Air 4 – 8 kg/cm2 |
Dimensions
WxDxH |
1050 x 850 x 1743 mm |
Weight |
300 kg |
