ICT(In-Circuit Tester, 회로판 테스트 장비)
INTRODUCTION

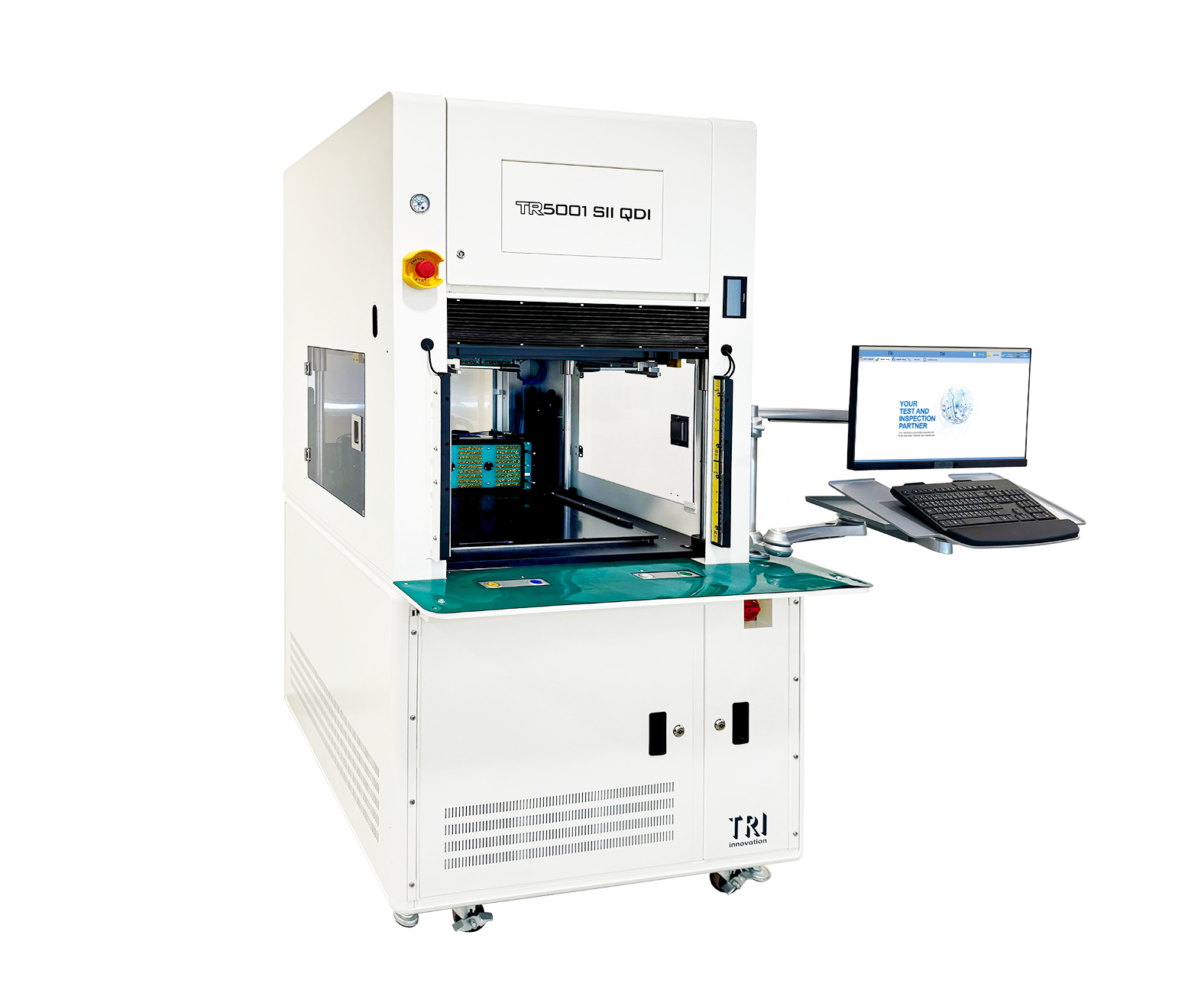

차세대ICT+FCT 솔루션은 높은 처리량을 위해 최대 4개의 독립적 코어를 이용하여 획기적인 성능의 멀티 코어 병렬 테스트를 제공합니다. TRI의 가장 진보된 수동 핸들러는 끊김 없는 작업을 위해 안전하고 공인된 핸즈프리 설계를 갖추고 있다. TR5001Q/D SII QDI의 견고하고 빠른 연결 해제 인터페이스와 빌트인 자동 교정, 자가진단 기능은 장기간 검사 책임을 보장한다.
• 차세대 멀티 코어 병렬 테스터
• 모든 핀 최대 8 포트 최첨단 테스트 컨트롤러 시리즈
• 작업자의 안전을 위한 공인된 핸즈프리 테스팅 플랫폼
• 제한된 접근 솔루션으로 PXI 모듈을 이용한 기능적인 테스트 확장
• 자가 진단과 자동 교정 기능 탑재
• 높은 정확도의 측정과 테스팅
• 플로우 기반의 쉬운 프로그램 개발과 직접적인 UI
• 픽쳐 테스트에 견고하고 빠른 연결 해제 인터페이스
Tester Specifications
Analog/hybrid test points
TR5001Q SII QDI: 4096
TR5001D SII QDI: 3328
TR5001 SII QDI: 3456
Operating System
Microsoft® Windows compatible PC with USB, Windows 7-10
Fixture Type
Offline press type fixture with QDI
Standard Testing Components
Analog Test Hardware
6-wire measurement switching matrix
Programmable AC/DC/DC High voltage and current sources
AC/DC voltage, DC current measurement
Component R/L/C measurement
Optional Components
Analog Hardware
TestJet vectorless open circuit detection
Arbitrary Waveform Generator
Digital Testing
Non-multiplexing 1:1 per pin architecture with independent per-pin level setting
Serial Test Controller (STC) Programming
DUT power supplies: 5 V@3 A, 3.3 V@3 A, 12 V@3A, -12 V@1 A and 24 V@3 A
DPS Programmable DUT Power supply :
(1) DPS3514: 30Vmax/5Amax/100Wmax per channel /4CH per DPS
(2) DPS3122: 30Vmax/10Amax/200Wmax per channel /2CH per DPS
Programmable DUT power supplies: 75 V / 8 A max, 200W maximum output power
Includes BScan Chain Test, BScan Cluster Test, BScan Virtual Nails Test, BScan Virtual Chain Test and IEEE1149.6 Test
Up to 8 High Speed Serial Ports, On-board Flash, EEPROM, MAC programming
Yield Management System
YMS 4.0
Dimensions
WxDxH
1200 x 950 x 1850 mm
Weight
700 kg
