INTRODUCTION

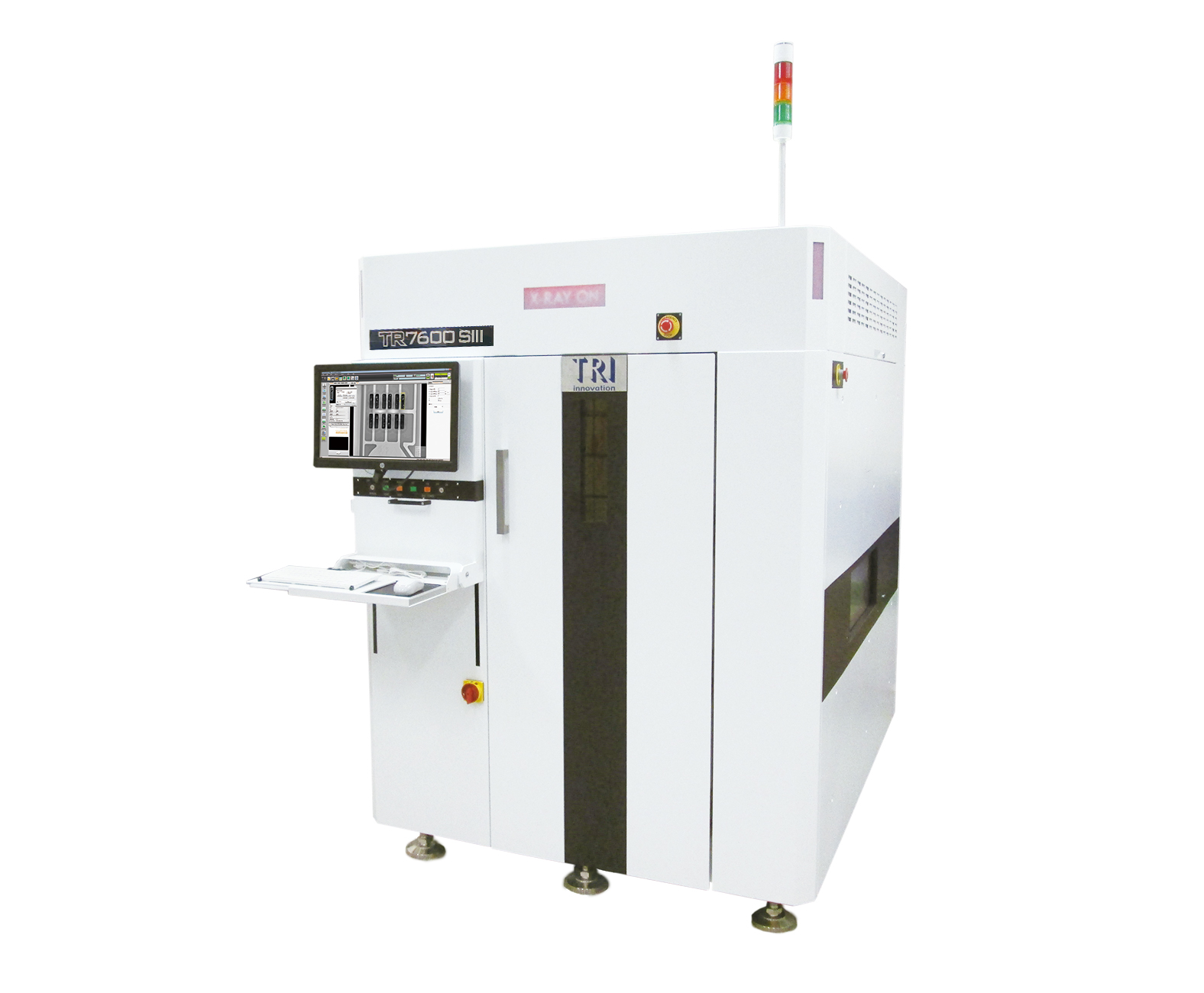

TR7600 SIII 시리즈 CT AXI는 차세대 TRI의 특징 인라인 PCBA 검사 솔루션입니다. TR7600 SIII는 생산 라인 속도에 100% 검사 범위를 위해 설계 되었고, 업계 최고속 이미징 속도와 고해상도를 결합하여 크게 향상된 이미지 품질을 가진 업계에서 가장 진보된 자동 X-ray 검사기이다.
• 초고속 3D CT X-Ray 검사
• 우수한 이미지 품질
• 3D 실사 솔더 조인트 뷰어
• 01005 칩을 위한 고 해상도
VIDEO
Optical System
Imaging Method
Camera
Imaging Resolution
Lighting
3D Technology
Field of View
Inspection Performance
Imaging Speed
Height Resolution
Max. Solder Height
Motion Table & Control
X-Axis Control
Y-Axis Control
Z-Axis Control
X-Y Axis Resolution
Z-Axis Resolution
Board Handling
Max PCB Size
PCB Thickness
Max PCB Weight
Top Clearance
Bottom Clearance
Edge Clearance
Conveyor Height
Optical System
Imaging Method
Top Camera
Angle Camera
Imaging Resolution
Lighting
3D Technology
Max. 3D Range
Motion Table & Control
X-Axis Control
Y-Axis Control
Z-Axis Control
X-Y Axis Resolution
Board Handling
Max PCB Size
PCB Thickness
Max PCB Weight
Top Clearance
Bottom Clearance
Edge Clearance
Conveyor
Imaging System
Camera
Ultra-High Speed Line-Scan CCD Cameras. 3 or 5 Units (9 or 15 Sensors)
X-ray Source
60 -130 kV
Imaging Resolution
7 μm - 20 μm
Inspection Method
2D, 2.5D, 3D Slicing, Planar CT (Optional)
Motion Table & Control
X-Axis Control
High-precision ballscrew + AC-servo controller
Y-Axis Control
High-precision ballscrew + AC-servo controller
Z-Axis Control
High-precision ballscrew + AC-servo controller
X-Y Axis Resolution
N/A
Board Handling
Max PCB Size
900 x 520 mm
PCB Thickness
0.6-7 mm
Max PCB Weight
12 kg
Top Clearance
@ 20 μm: 50 mm @ 15 μm: 30 mm @ 10 μm: 15 mm @ 7 μm: 7 mm
Bottom Clearance
70 mm
Edge Clearance
3 mm or 5 mm
Conveyor Height
880 - 920 mm. Optional: 940-965 mm * SMEMA Compatible
Inspection Functions
Capabilities
Missing Misalignment Tombstone Billboard Tantalum Polarity Rotation Floating
Defects
Insufficient/Excess Solder Bridging Open Solder Ball Non-wetting Void Lifted Lead
Dimensions
WxDxH
1470 x 2110 x 1975 mm Note: not including signal tower, height: 510 mm
Weight
3850 kg
Power Requirement
200 - 240 VAC single phase, 50/60 Hz, 4 kVA
