INTRODUCTION

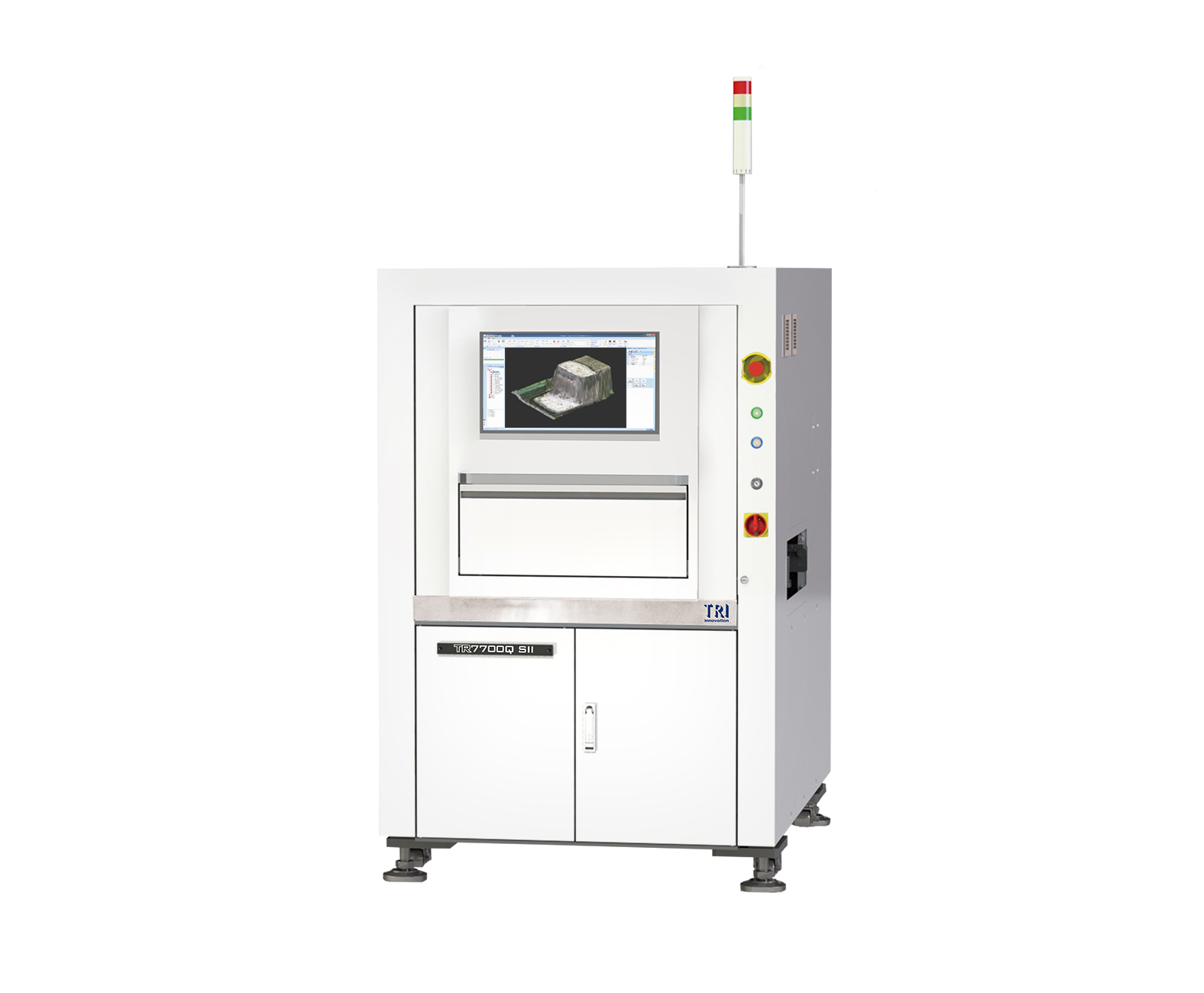

TR7700Q SII는 자동학습기능과 다양한 검사가 가능한 알고리즘, 정확한 측정을 위한 계측기능, 스마트팩토리 응용프로그램을 위한 데이터 호환 기능 등을 갖춘 스마트프로그래밍으로 구동됩니다. TR7700Q SII은 우수한 기계적 안정성으로 더 높은 정확도를 가지며, Stop-and-Go 이미징기술로 게이지 R&R이 개선되었습니다.
• 업계 최고의 검사 속도, 최대 57cm2 /sec
• 멀티 3D 기술: Zero-escapes 검사
• 향상된 GR&R을 통한 높은 정확도 검사
VIDEO
Optical System
Imaging Method
Camera
Imaging Resolution
Lighting
3D Technology
Field of View
Inspection Performance
Imaging Speed
Height Resolution
Max. Solder Height
Motion Table & Control
X-Axis Control
Y-Axis Control
Z-Axis Control
X-Y Axis Resolution
Z-Axis Resolution
Board Handling
Max PCB Size
PCB Thickness
Max PCB Weight
Top Clearance
Bottom Clearance
Edge Clearance
Conveyor Height
Optical System
Imaging Method
Stop-and-Go
Top Camera
12 MP/21 MP High Speed Camera
Angle Camera
N/A
Imaging Resolution
9.8 µm, 10 µm, 12 µm, 15 µm (factory setting)
Lighting
Multi-phase True Color LED
3D Technology
Quad Digital Fringe Projectors
Max. 3D Range
@ 9.8 μm: 40 mm @ 10 μm: 40 mm @ 12 μm: 40 mm @ 15 μm: 40 mm
Inspection Performance
Imaging Speed
@ 9.8 μm: 40 cm²/sec @ 10 μm: 25 cm²/sec @ 12 μm: 37 cm²/sec @ 15 μm: 57 cm²/sec
Motion Table & Control
X-Axis Control
Ballscrew + AC Servo with Motion Controller
Y-Axis Control
Ballscrew + AC Servo with Motion Controller
Z-Axis Control
Ballscrew + AC Servo with Motion Controller
X-Y Axis Resolution
1 μm
Board Handling
Max PCB Size
TR7700Q SII: 510 x 460 mm TR7700LQ SII: 765 x 610 mm TR7700Q SII DL: 510 x 310 mm x 2 lanes, 510 x 590 mm x 1 lane
PCB Thickness
0.6-5 mm
Max PCB Weight
TR7700Q SII: 3 kg. Optional: 5kg TR7700LQ SII: 3 kg (6.61 lb). Optional: 5 kg (11.02 lb) / 12 kg (26.46 lb) TR7700Q SII DL: 3 kg. Optional: 5kg
Top Clearance
@ 9.8 μm: 50 mm @ 10 μm: 50 mm @ 12 μm: 50 mm @ 15 μm: 50 mm
Bottom Clearance
40 mm
Edge Clearance
3 mm. Optional: 4 mm / 5 mm
Conveyor
Inline Height: 880 – 920 mm * Optional: 940-965 mm (SMEMA compatible)
Inspection Functions
Component
Missing, Tombstoning, Billboarding, Polarity, Rotation, Shift, Wrong Marking (OCV), Defective, Upside Down, Extra Component, Foreign Material, Lifted Component
Solder
Solder Fillet Height, Solder Volume %, Excess Solder, Insufficient Solder, Bridging, Through-hole Pins, Lifted Lead, Golden Finger Scratch/ Contamination
Dimensions
WxDxH
TR7700Q SII: 1100 x 1720 x 1710 mm TR7700LQ SII: 1365 x 1720 x 1710 mm TR7700Q SII DL: 1100 x 1820 x 1710 mm Note: not including signal tower, signal tower height 515 mm
Weight
TR7700Q SII: 910 kg TR7700LQ SII: 1025 kg TR7700Q SII DL: 960 kg
