ICT(In-Circuit Tester, 회로판 테스트 장비)

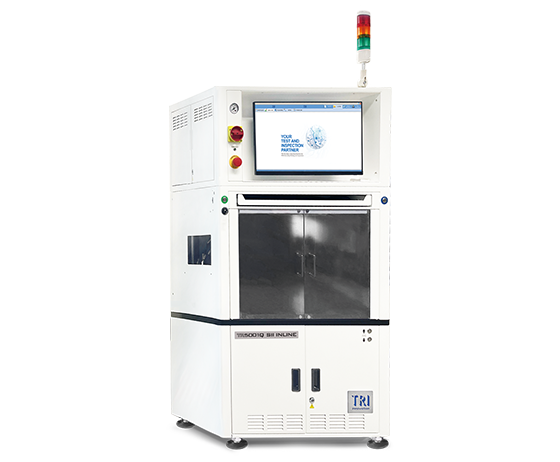

TR5001 SII INLINE
TR5001 SII INLINE
INTRODUCTION
차세대 병렬 인라인 ICT+FCT 솔루션은 높은 처리량을 위해 최대 4개의 독립적 코어를 이용하여 획기적인 성능의 멀티 코어 병렬 테스트를 제공합니다.SMEMA 호환 인라인 핸들러는 작업자의 작업부하를 줄이고 처리량을 증가시키며, 자동 교정과 자가 진단 기능이 탑재된 견고한 빠른 연결 해제 인터페이스는 장시간 테스트 신뢰성을 보장합니다.
• 차세대 멀티 코어 병렬 테스터
• 모든 핀 최대 8포트 최첨단 테스트 컨트롤러 시리즈
• 제한된 접근 솔루션으로 PXI 모듈을 이용한 기능적인 테스트 확장
• 자가 진단과 자동 교정 기능 탑재
• 높은 정확도의 측정과 테스팅
• SMEMA 호환 인라인 높은 검출 테스트 솔루션
• 플로우 기반의 쉬운 프로그램 개발과 직접적인 UI
• Auto-calibration by DMM
Tester Specifications
Analog/hybrid test points
1 Core- 3,456. Optional: 4,480
2 Cores- 3,328. Optional: 4,096
4 Cores- 4,096
Operating System
Microsoft® Windows 11
Fixture Type
Inline with long lifespan Quick Disconnection Interface
Standard Testing Components
Analog Test Hardware
6-wire measurement switching matrix
Programmable AC/DC/DC High voltage and current sources
AC/DC voltage, DC current measurement
Component R/L/C measurement
TestJet vectorless open circuit detection
Arbitrary Waveform Generator
Industry 4.0
Communication Standard
SMEMA, SECS/GEM, IPC-CFX-2591, IPC-HERMES-9852
Yield Management System
YMS 4.0 (Optional)
Board Handling
Min. PCB Size
50 x 50 mm
Max. PCB Size
510 x 510 mm
System Requirement
Power Requirement
200 – 240 V, Single Phase, 50/60 Hz, 3 kVA.
Power Feature
Power Line Earth Ground Auto Detection. Power 50/60 Hz Auto Detection.
Air Requirement
Dry Air 4 – 8 kg/cm2
Dimensions
WxDxH
900 x 1200 x 1680 mm
Note: not including signal tower,signal tower height: 392 mm
Weight
687 kg
