INTRODUCTION

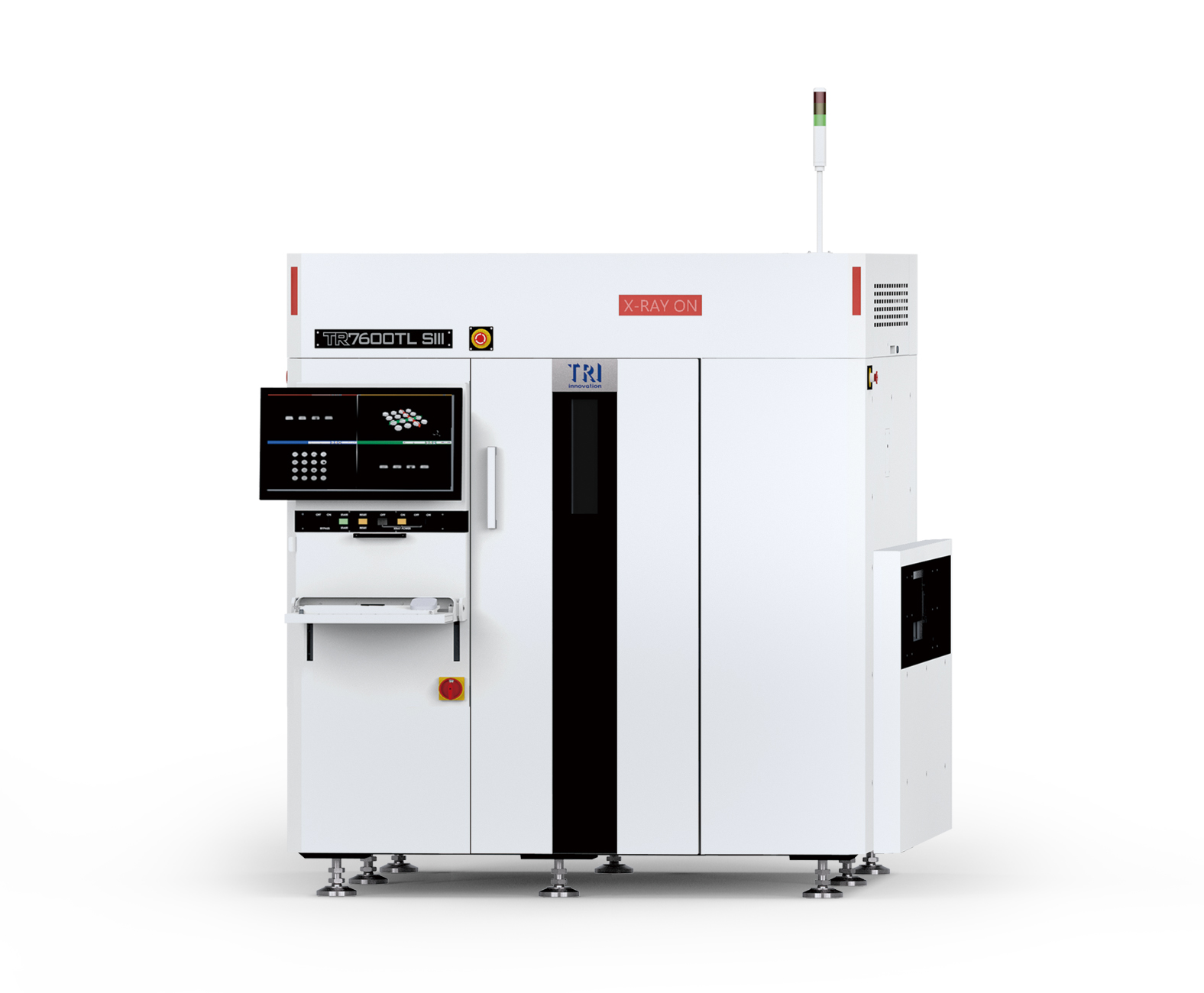

TR7600TL SIII 는 새로운 인라인 라인 스캔 3D AXI로, 최대 1200mm x 660mm의 큰 보드를 검사 가능하도록 CT 기능이 전문화되어 있습니다. TR7600TL SIII Series 플랫폼은 영상 해상도를 저하시키지 않으면서 탁월한 속도와 성능을 제공합니다.
• 초고속 3D CT X선 검사
• 대형 보드에서도 최고의 해상도를 제공하는 AXI
• 강력한 알고리즘을 사용하는 스마트 프로그래밍
VIDEO
Optical System
Imaging Method
Camera
Imaging Resolution
Lighting
3D Technology
Field of View
Inspection Performance
Imaging Speed
Height Resolution
Max. Solder Height
Motion Table & Control
X-Axis Control
Y-Axis Control
Z-Axis Control
X-Y Axis Resolution
Z-Axis Resolution
Board Handling
Max PCB Size
PCB Thickness
Max PCB Weight
Top Clearance
Bottom Clearance
Edge Clearance
Conveyor Height
Optical System
Imaging Method
Top Camera
Angle Camera
Imaging Resolution
Lighting
3D Technology
Max. 3D Range
Motion Table & Control
X-Axis Control
Y-Axis Control
Z-Axis Control
X-Y Axis Resolution
Board Handling
Max PCB Size
PCB Thickness
Max PCB Weight
Top Clearance
Bottom Clearance
Edge Clearance
Conveyor
Imaging System
Camera
Ultra-High Speed Line-Scan CCD Cameras. 3 or 5 Units (9 or 15 Sensors)
X-ray Source
60 -130 kV
Imaging Resolution
10 μm - 25 μm
Inspection Method
2D, 2.5D, 3D Slicing, Planar CT (optional)
Motion Table & Control
X-Axis Control
High-precision ballscrew + AC-servo controller
Y-Axis Control
High-precision ballscrew + AC-servo controller
Z-Axis Control
High-precision ballscrew + AC-servo controller
X-Y Axis Resolution
N/A
Board Handling
Max PCB Size
1200 x 660 mm
PCB Thickness
0.6-7 mm
Max PCB Weight
12 kg
Top Clearance
@ 25 μm: 50 mm @ 20 μm: 50 mm @ 15 μm: 30 mm @ 10 μm*: 15 mm * For confirming the specific technical requirements, please contact TRI’s sales representative
Bottom Clearance
@ 25 μm: 55 mm @ 20 μm: 70 mm @ 15 μm: 70 mm @ 10 μm: 70 mm
Edge Clearance
3 mm or 5 mm
Conveyor Height
880 - 920 mm. Optional: 940-965 mm * SMEMA Compatible
Inspection Functions
Capabilities
Missing Misalignment Tombstone Billboard Tantalum Polarity Rotation Floating
Defects
Insufficient/Excess Solder Bridging Open Solder Ball Non-wetting Void Lifted Lead
Dimensions
WxDxH
2014 x 2000 x 1940 mm Note: not including signal tower, height: 510 mm
Weight
4750 kg
Power Requirement
200 – 240 VAC, Three Phase, 50 / 60 Hz, 7 kVA. Optional: 346 – 416 VAC Three Phase Transformer
