절연 보호 코팅 검사기 (CI AOI)

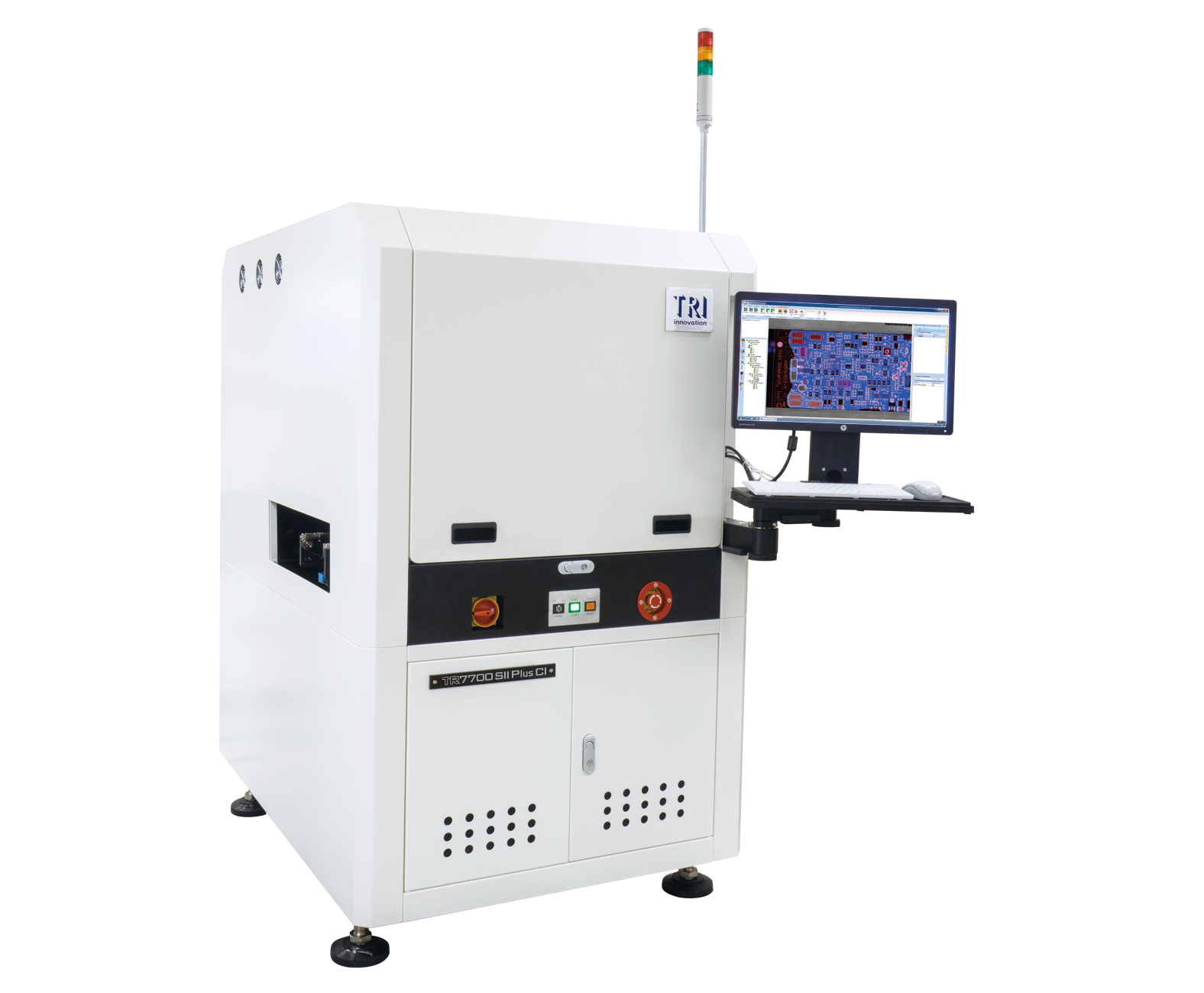

TR7700 SII Plus CI

INTRODUCTION

TR7700 SII Plus CI는 UV-활성 절연 보호 코팅을 검사 할 특별한 다중 층 조명과 고정밀 광학 설계를 결합하여 쉬운 UV-활성 절연 보호 코팅 검사를 제공합니다.스마트 소프트웨어 및 다중 층 이미지는 TR7700 SII Plus CI 가 최소의 가성불량과 가장 정형적인 코팅 결함을 식별하는것을 보장한다.

• 정확한 UV - 활성 코팅 검사
• 이해하기 쉬운 범위의 프로그래밍과 쉬운 교육
• 정확한 코팅 면적 측정
• 다중 위상 조명과 노이즈 감소

Optical System

Imaging Method	Dynamic Imaging
Top Camera	4 Mpix
Angle Camera	N/A
Imaging Resolution	10 µm, 15 µm (factory setting)
Lighting	Multi-phase R/W + UV

Imaging Performance

Imaging Speed

@10 µm: 60 cm²/sec
@15 µm: 120 cm²/sec

Motion Table & Control

X-Axis Control	Ballscrew + AC-servo controller
Y-Axis Control	Ballscrew + AC-servo controller
X-Y Axis Resolution	1 µm

Board Handling

Max PCB Size	500 x 460 mm
PCB Thickness	0.6-5 mm
Max PCB Weight	3 kg
Top Clearance	50 mm
Bottom Clearance	40 mm [100 mm optional]
Edge Clearance	3 mm [5 mm optional]
Conveyor	Inline Height: 880 – 920 mm * SMEMA Compatible

Inspection Functions

Conformal Coating

Missing Coating
Insufficient Coating
Crack
Bubble/Void
Splash/Smear/Contamination
Spill
Measurement

Dimensions

WxDxH	1000 x 1400 x 1650 mm Note: not including signal tower, signal tower height 520 mm
Weight	600 kg
