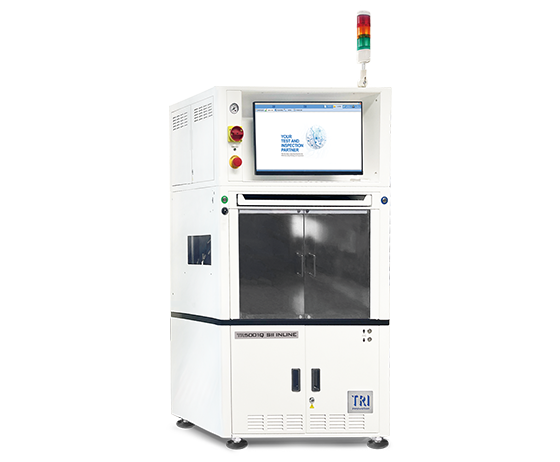

TR5001 SII INLINE
TR5001 SII INLINE
INTRODUCTION
Next generation parallel inline ICT+FCT solution offers breakthrough performance Multi-Core Parallel testing with up to 4 independent cores for high throughput. SMEMA-compatible inline handler reduces operator workload and increases throughput, and durable Quick Disconnect Interface together with built-in auto-calibration and self-diagnostics ensure long-term testing reliability.
• New Generation Flexible Multi-Core Parallel Tester
• State-of-the-Art Serial Test Controller with up to 8 ports on any pin
• Limited access solution and functional test expansion using PXI modules
• Built-in Self Diagnostics and Auto-Calibration function
• High-Accuracy Measurement and Testing
• SMEMA compatible inline high fault coverage test solution
• Intuitive UI with flow-based easy program development
Tester Specifications
Analog/hybrid test points
1 Core- 3,456. Optional: 4,480
Operating System
Microsoft® Windows 11
Fixture Type
Inline with long lifespan Quick Disconnection Interface
Standard Testing Components
Analog Test Hardware
6-wire measurement switching matrix
Programmable AC/DC/DC High voltage and current sources
AC/DC voltage, DC current measurement
Component R/L/C measurement
TestJet vectorless open circuit detection
Arbitrary Waveform Generator
Industry 4.0
Communication Standard
SMEMA, SECS/GEM, IPC-CFX-2591, IPC-HERMES-9852
Yield Management System
YMS 4.0 (Optional)
Board Handling
Min. PCB Size
50 x 50 mm
Max. PCB Size
510 x 510 mm
System Requirement
Power Requirement
200 – 240 V, Single Phase, 50/60 Hz, 3 kVA.
Power Feature
Power Line Earth Ground Auto Detection. Power 50/60 Hz Auto Detection.
Air Requirement
Dry Air 4 – 8 kg/cm2
Dimensions
WxDxH
900 x 1200 x 1680 mm
Note: not including signal tower,signal tower height: 392 mm
Weight
687 kg
