Automated X-ray Inspection (AXI)

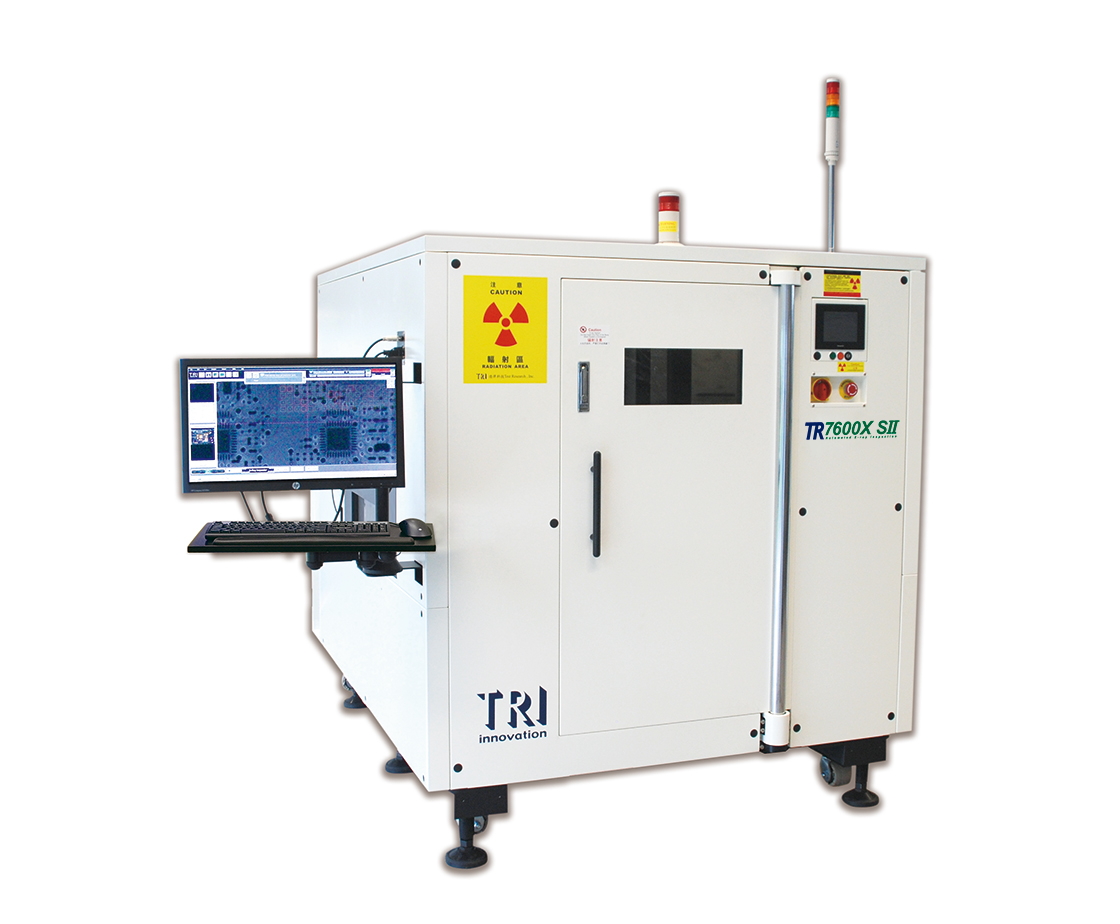

  • TR7600X SII


Built for maximum inspection performance, TR7600X SII series offers ultimate performance 3D X-ray inspection for the largest server, networking and power PCBs. With advanced ultra-high-speed cameras, the TR7600X SII series combines TRI’s unique shadow-free 3D inspection of multi-layer boards with 2/3-layer PoPs, µBGAs, QFNs, Press-fit connectors with fully automated programming and multi-resolution programs help maximize production yields on any production line.
  • • Ultra-high-speed bidirectional cameras

    • Large board edge to edge inspection up to 900 mm x 460 mm

    • X-ray tube with adjustable output up to 130 kV/300 µA

    • Multi resolution BlockScan programs and advanced processing for superior image quality

    • Automatic 2D + 3D slice image extraction using Digital Tomosynthesis

    • Exclusive Image enhancement technology for clear Pressfit inspection
