Automated Optical Inspection (AOI)

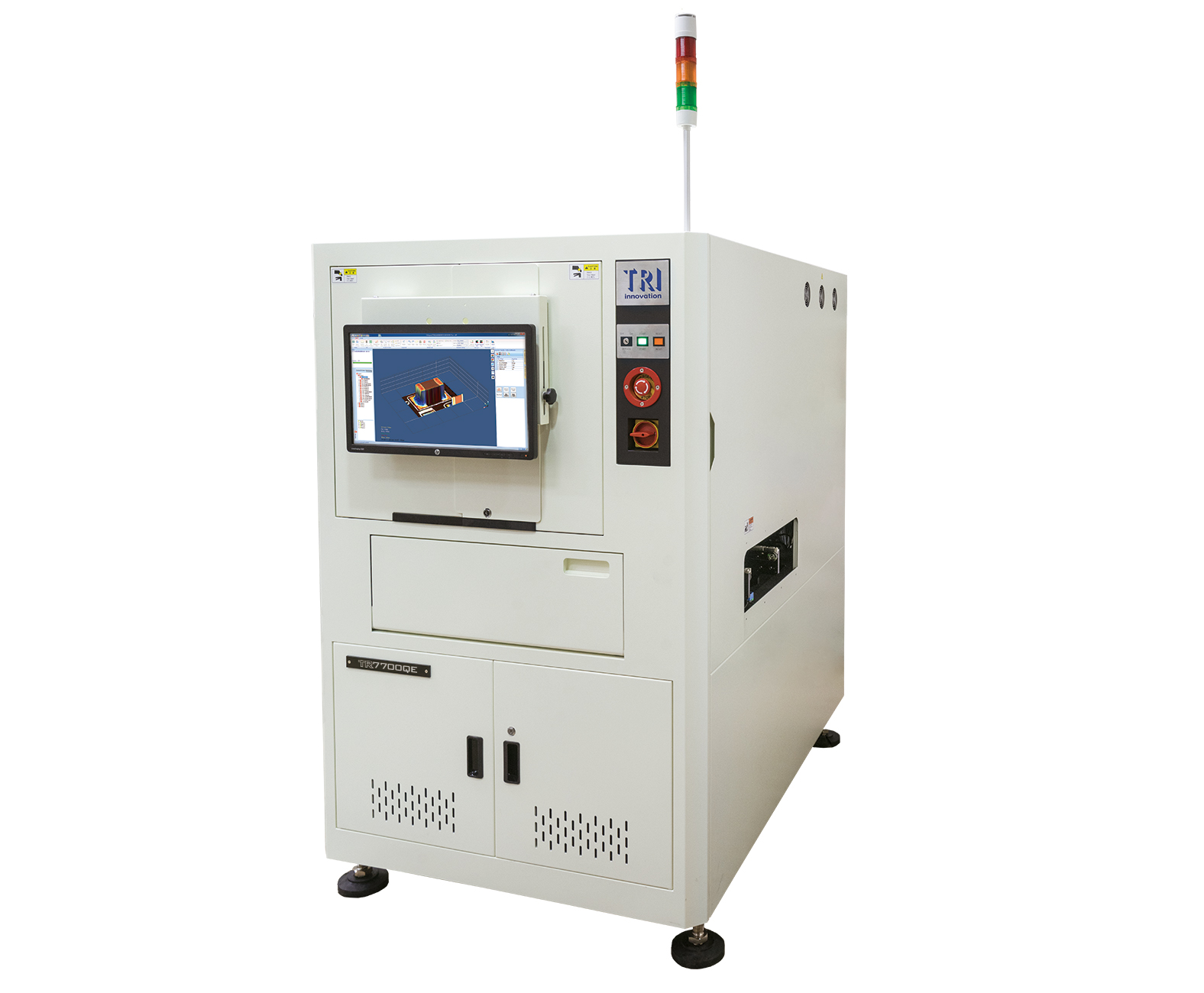

TR7700QE

INTRODUCTION

The TR7700QE AOI offers high performance 3D solder and assembly inspection by combining the next generation 2D and 3D technologies based on 4-way adaptive digital fringe pattern projection. Latest inspection software ensures quick CAD-based programming and features fully customizable templates.
• Advanced 2D + 3D Coverage
• 4-way Digital Fringe Projectors
• Up to 40 mm 3D Height Range
• High Speed CoaXPress Imaging
• Optional 3D Laser Module
