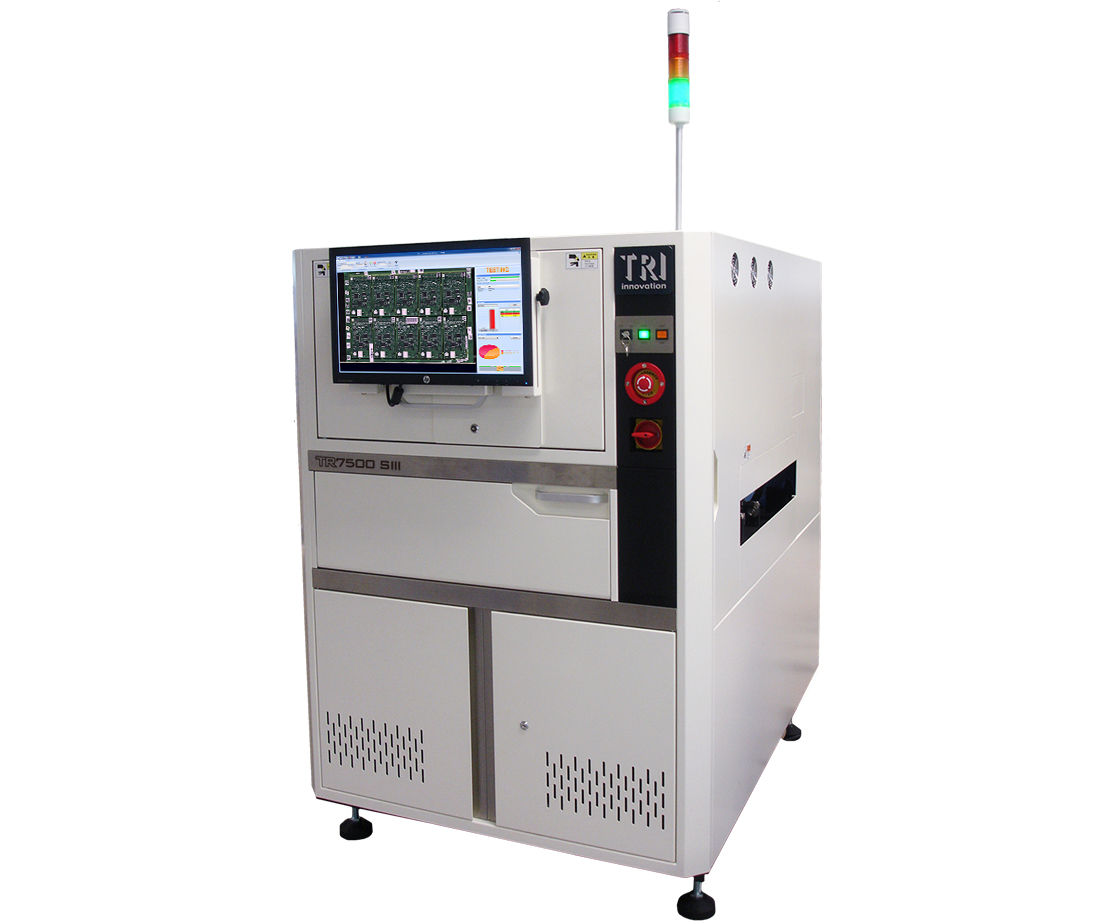

TR7500 SIII


TR7500 SIII

INTRODUCTION

TRI 제품 중에서도 최고급품인 AOI 솔루션은 초고속 카메라 5대로 PCB 조립품 검사를 제공하여, 아무리 복잡한 솔더 및 조립품 결함이라도 안정적으로 감지할 수 있습니다. 지능형 소프트웨어와 고성능 하드웨어를 사용한 강력한 조합으로 안정적이고 사용하기 쉬운 AOI 시스템을 구축하여, 대단히 정확도가 높은 검사를 수행하고 결과에 오류 지시가 극히 적어 생산 라인에서 산출량을 최적화하는 데 큰 도움이 됩니다.

• 고정밀 5-카메라 다상 AOI
• 스마트 간편 프로그래밍 GUI(오프라인 편집 기능 포함)
• 지능형 자동 컨베이어로 적재 시간 절약
• 정확도가 높고 오류 지시가 극히 적은 안정적인 검사 기능

Optical System

Imaging Method
Camera
Imaging Resolution
Lighting
3D Technology
Field of View

Inspection Performance

Imaging Speed
Height Resolution
Max. Solder Height

Motion Table & Control

X-Axis Control
Y-Axis Control
Z-Axis Control
X-Y Axis Resolution
Z-Axis Resolution

Board Handling

Max PCB Size
PCB Thickness
Max PCB Weight
Top Clearance
Bottom Clearance
Edge Clearance
Conveyor Height

Inspection Functions

Defects
Measurement

Dimensions

WxDxH
Weight

Optical System

Imaging Method	Dynamic Imaging
Top Camera	4 Mpix
Angle Camera	1.3 Mpix or 6.5 Mpix (factory setting)
Imaging Resolution	10 µm, 15 µm (factory setting)
Lighting	Multi-phase RGB+W LED
3D Technology	Single/Dual 3D laser sensors
Max. 3D Range	20 mm (with 3D Laser Sensor upgrade optional)

Inspection Performance

Imaging Speed

4 Mpix@ 10 µm 2D: 60 cm²/sec
4 Mpix@ 15 µm 2D: 120 cm²/sec

Motion Table & Control

X-Axis Control	Ballscrew + AC-servo controller
Y-Axis Control	Ballscrew + AC-servo controller
Z-Axis Control	N/A
X-Y Axis Resolution	1 µm

Board Handling

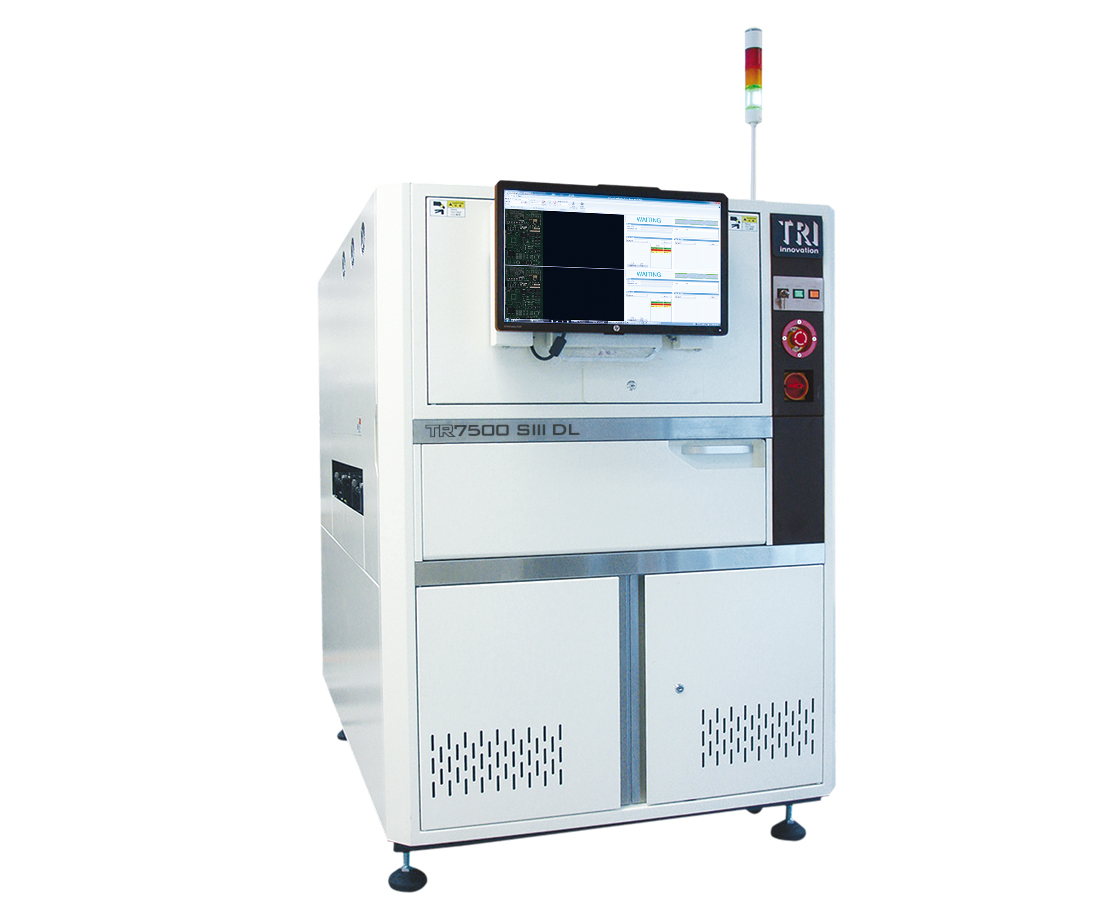

Max PCB Size	TR7500 SIII: 510 x 460 mm TR7500L SIII: 660 x 610 mm TR7500 SIII DL: 510 x 310 mm x 2 lanes, 510 x 590 mm x 1 lane
PCB Thickness	0.6-5 mm
Max PCB Weight	3 kg
Top Clearance	25 mm [48 mm optional]
Bottom Clearance	40 mm
Edge Clearance	3 mm [5 mm optional]
Conveyor	Inline Height: 880 – 920 mm * SMEMA Compatible

Inspection Functions

Component	Missing Tombstoning Billboarding Polarity Rotation Shift Wrong Marking (OCV) Defective Upside Down Extra Component Foreign Material Lifted Component
Solder	Excess Solder Insufficient Solder Bridging Through-hole Pins Lifted Lead Golden Finger Scratch/Contamination

Dimensions

WxDxH	TR7500 SIII: 1100 x 1670 x 1550 mm TR7500L SIII: 1300 x 1630 x 1655 mm TR7500 SIII DL: 1100 x 1770 x 1550 mm Note: not including signal tower, signal tower height 520 mm
Weight	TR7500 SIII: 1030 kg TR7500L SIII: 1255 kg TR7500 SIII DL: 1150 kg

Imaging System

Camera
X-ray Source
Imaging Resolution
Inspection Method

Motion Table & Control

X-Axis Control
Y-Axis Control
Z-Axis Control
X-Y Axis Resolution

Board Handling

Max PCB Size
PCB Thickness
Max PCB Weight
Top Clearance
Bottom Clearance
Edge Clearance
Conveyor Height

Inspection Functions

Capabilities
Defects

Dimensions

WxDxH
Weight
Power Requirement
