INTRODUCTION

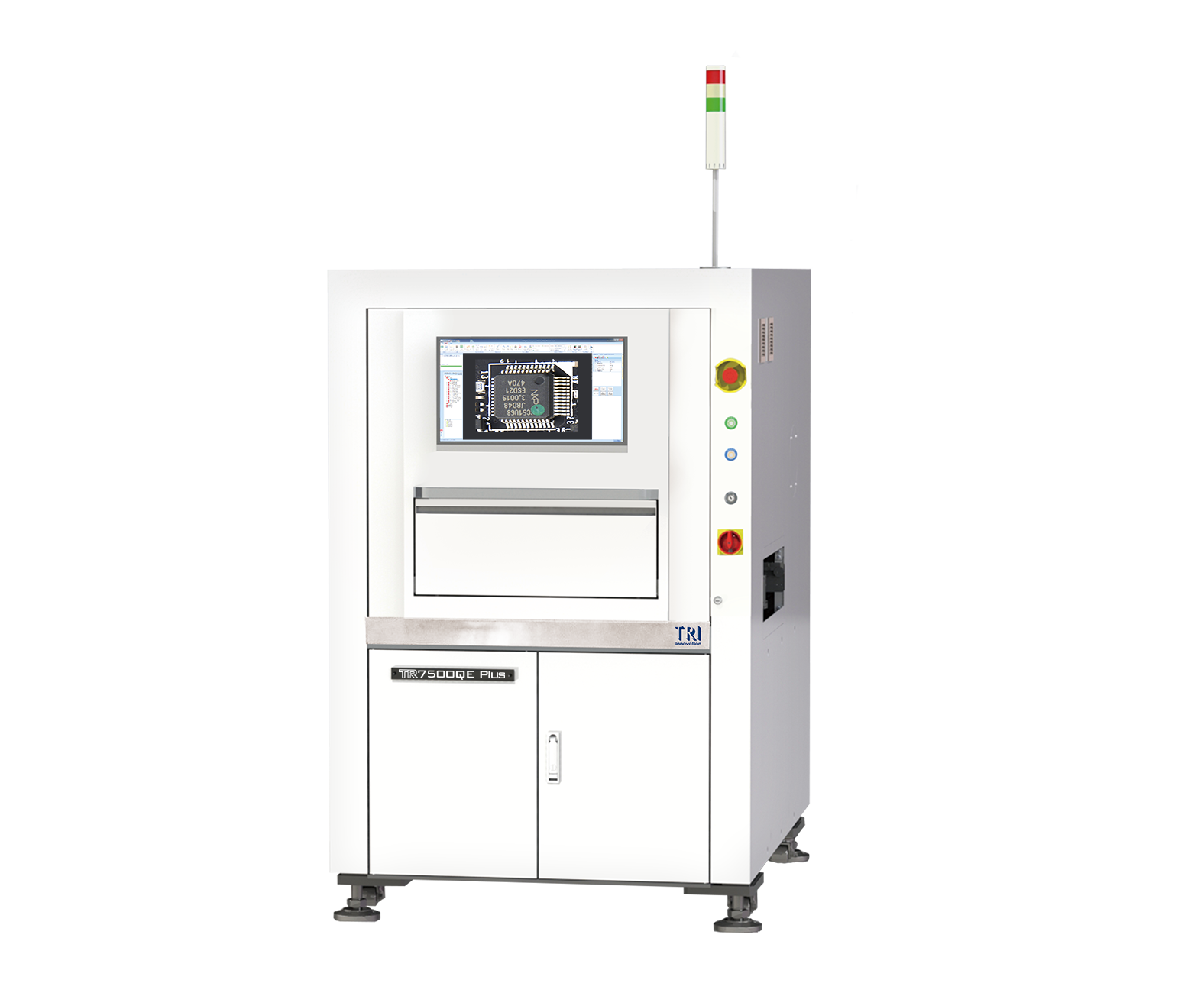

TR7500QE Plus는 차세대 Multi 카메라 측면 뷰 3D AOI입니다. 비용 효율적인 3D AOI 플랫폼은 혁신적인 인공지능(AI) 구동 알고리즘과 높은 정확도 검사를 제공하는 강화된 기계 기능을 탑재 했습니다. 플랫폼에서는 사이드 뷰 카메라를 사용하여 내부 레이어 브리지, 숨겨진 리프팅 리드 및 기타 시야 밖의 결함을 검사할 수 있습니다. TR7500QE Plus는 IPC-CFX 및 헤르메스 표준(IPC-HERMES-9852)과 같은 현재의 스마트 팩토리 표준을 지원합니다.
• 다각도 3D 사이드 뷰, 5대의 카메라 검사
• 차등적 등급 측정
• 스마트 프로그래밍을 통한 AI기반 알고리즘
• Industry 4.0 지원 플랫폼
Optical System
| Imaging Method |
|
| Camera |
|
| Imaging Resolution |
|
| Lighting |
|
| 3D Technology |
|
| Field of View |
|
Inspection Performance
| Imaging Speed |
|
| Height Resolution |
|
| Max. Solder Height |
|
Motion Table & Control
| X-Axis Control |
|
| Y-Axis Control |
|
| Z-Axis Control |
|
| X-Y Axis Resolution |
|
| Z-Axis Resolution |
|
Board Handling
| Max PCB Size |
|
| PCB Thickness |
|
| Max PCB Weight |
|
| Top Clearance |
|
| Bottom Clearance |
|
| Edge Clearance |
|
| Conveyor Height |
|
Optical System
| Imaging Method |
Stop-and-Go |
| Top Camera |
12 MP High Speed Camera |
| Angle Camera |
4 Angled Cameras |
| Imaging Resolution |
10 µm, 12 µm *, 15 µm (factory setting)
* Available for TR7500QE Plus |
| Lighting |
Multi-Phase True Color LED, Coaxial Lighting |
| 3D Technology |
Digital Fringe Pattern Projectors |
| Max. 3D Range |
40 mm |
Inspection Performance
| Imaging Speed |
@ 10 μm: 25 cm²/sec
@ 12 μm: 37 cm²/sec
@ 15 μm: 57 cm²/sec |
Motion Table & Control
| X-Axis Control |
Ballscrew + AC Servo with Motion Controller (Linear Motor Optional) |
| Y-Axis Control |
Dual Driven Ballscrew + AC Servo with Motion Controller |
| Z-Axis Control |
Ballscrew + AC Servo with Motion Controller |
| X-Y Axis Resolution |
1 μm |
Board Handling
| Max PCB Size |
TR7500QE Plus: 510 x 510 mm
TR7500QE Plus DL: 510 x 310 mm x 2 lanes, 510 x 590 mm x 1 lane
TR7500L QE Plus: 765 x 610 mm |
| PCB Thickness |
0.5 - 6 mm |
| Max PCB Weight |
3kg. Option: 4kg / 5kg |
| Top Clearance |
50 mm |
| Bottom Clearance |
40 mm |
| Edge Clearance |
3 mm. Optional: 4 mm / 5 mm |
| Conveyor |
Inline Height: 880 – 920 mm |
Inspection Functions
| Component |
Missing, Tombstoning, Billboarding, Polarity, Rotation, Shift, Wrong Marking (OCV), Defective, Upside Down, Extra Component, Foreign Material |
| Solder |
Solder Fillet Height, Solder Volume %, Excess Solder, Insufficient Solder, Bridging, Through-hole Pins, Lifted Lead, Golden Finger Scratch/ Contamination |
Dimensions
| WxDxH |
TR7500QE Plus: 1100 x 1730 x 1700 mm
TR7500QE Plus DL: 1100 x 2005 x 1700 mm
TR7500L QE Plus: 1365 x 1865 x 1700 mm
Note: not including signal tower, signal tower height 520 mm |
| Weight |
TR7500QE Plus: 920 kg
TR7500QE Plus DL: 1040 kg
TR7500L QE Plus: 1035 kg |
